Oscilloscope + OL-612 16-Channel Logic Analyzer - PROMAX

Material on request
€2,139.28 Tax included

€1,768.00 tax excl.

100 MHz and 2 GS/s oscilloscope with built-in 16-channel 200 MHz logic analyzer. Real-time sampling rate of the logic analyzer: 1 GS/s. With 8" screen and USB connectivity, USB for file storage and RS-232 (optional).

Reference: OL-612



No queries yet, leave the first!

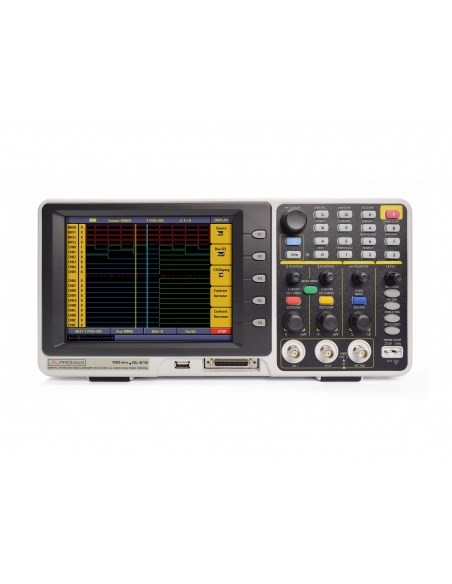

thePROMAX OL-612 is an advanced multifunction oscilloscope and a 16-channel logic analyzer.

The oscilloscope features a bandwidth of up to 100 MHz and real-time sampling of up to 2 GS/s. The large 8" TFT display ensures fast and comfortable measurements and user experience.

They include advanced features such as different trigger modes, 20 automatic measurements, waveform storage and USB connectivity.

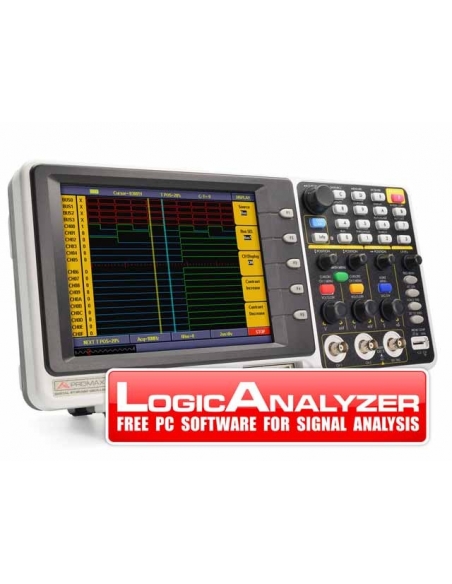

The integrated 16-channel logic analyzer offers a bandwidth of up to 200 MHz and a sampling rate of up to 1 GS/s. When connected to a PC, the free software application works with the computer and allows you to download, store, upload and analyze the data.

Brand/Supplier: PROMAX
Reference: OL-612


Specs:

  • Display: 8" color TFT, 640x480 pixels

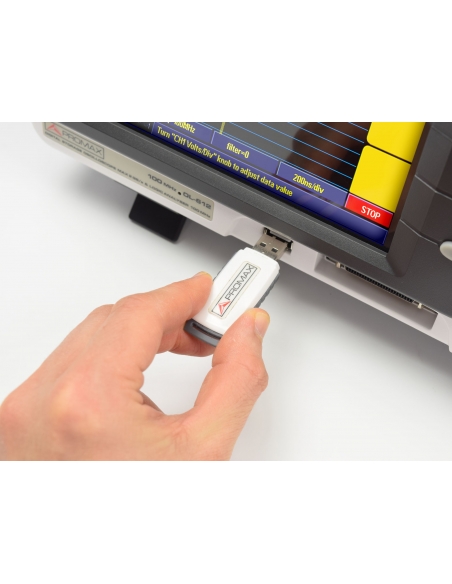

  • Communication interfaces: USB 1.1, USB for file storage, RS-232 port (optional)
  • Included Accessories: Passive Probe (x2), Probe Calibrator, Logic Analyzer Module, Power Cable, USB Cable, Quick Reference Guide, Software on CD-ROM

OSILOSCOPE:
  • Bandwidth: 100MHz
  • Sampling: 2 GS/s
  • Channels: 2 + 1 (external)
  • Trigger: Flank, Pulse, Video, Slope, Toggle
  • Registration length: Max 2M

LOGIC ANALYZER:
  • Bandwidth: 200MHz
  • Sampling: 20 S/s to 1 GS/s
  • Channels: 16
  • Registration length: Max 4 M per channel


Calibration certificate not included in the supply. It must be requested before placing the order.
