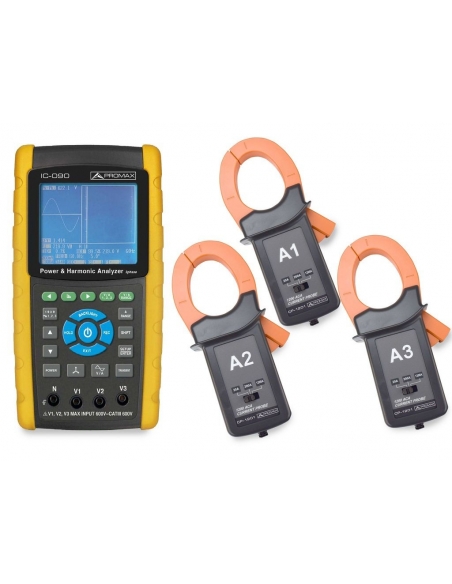

Three-Phase Network Analyzer IC-090 - PROMAX

Material on request
€3,397.68 Tax included

€2,808.00 tax excl.

Three-phase electrical network analyzer with harmonics up to 3000A.

Ideal equipment for installers of the RBT category with measures of true effective TRMS value for both voltage and current, location of faults in the electricity supply network, load profile analysis and energy optimization. It allows the dump of data to PC by SD card.

Reference: IC-090


No queries yet, leave the first!


The three-phase electrical network analyzer with harmonics up to 3000 A model IC-090 offers both basic and specialist installers a robust equipment with a great capacity for analysis.

The IC-090 is the ideal equipment for installers in the RBT category. It is equipped with a large backlit screen where you can view all the parameters of the network as well as the measurements offered by the equipment such as measures of true effective value TRMS for both voltage and current, location of failures in the electricity supply network, load profile analysis and energy optimization. The user interface is very intuitive and together with the ergonomic design make up a very easy to use equipment.

It allows the recording of data in real time on an SD card (included), for download to a PC for data analysis and reporting using Microsoft Excel.

  • V (phase to phase), V (phase to ground)
  • A (ground phase) true power
  • kW (True Power)/ kVA / kVAR / PF (phase)
  • kW (True Power)/ kVA / kVAR / PF (system)
  • kWH / kVAH / kVARH / PFH (system)
  • Phase angle


Brand/Supplier: PROMAX
Reference: IC-090


Measurement:

  • VAC, AAC
  • Power factor
  • Φ (Phase angle)
  • Frequency
  • Active (real) voltage, Apparent voltage
  • Reactive power
  • Watt hours (Active or reactive voltage hour)
  • Watt hours (apparent voltage hour)
  • AC voltage harmonics in percentage and magnitude
  • Current harmonics
  • AC in percentage
  • Peak value VAC or AAC
  • Crest factor of VAC or AAC
  • Total harmonic distortion


Safety standard:

  • IEC1010 CAT III 600 V


Accessories included:

  • Instruction Manual, Test Cables, Crocodile Tweezers, Clamp Probe, 9V AC to DC Adapter, SD Card (2GB), Carrying Case




Calibration certificate not included in the supply. It must be requested before placing the order.
