€48.33 Tax included

€39.94 tax excl.

Digital multimeter with True RMS and CAT IV 600V measurement category. It measures voltage, current, resistance, frequency, capacitance, temperature, diode test, continuity and non-contact voltage detection (NVC). It has a large backlit display.

Part No.: MM78C

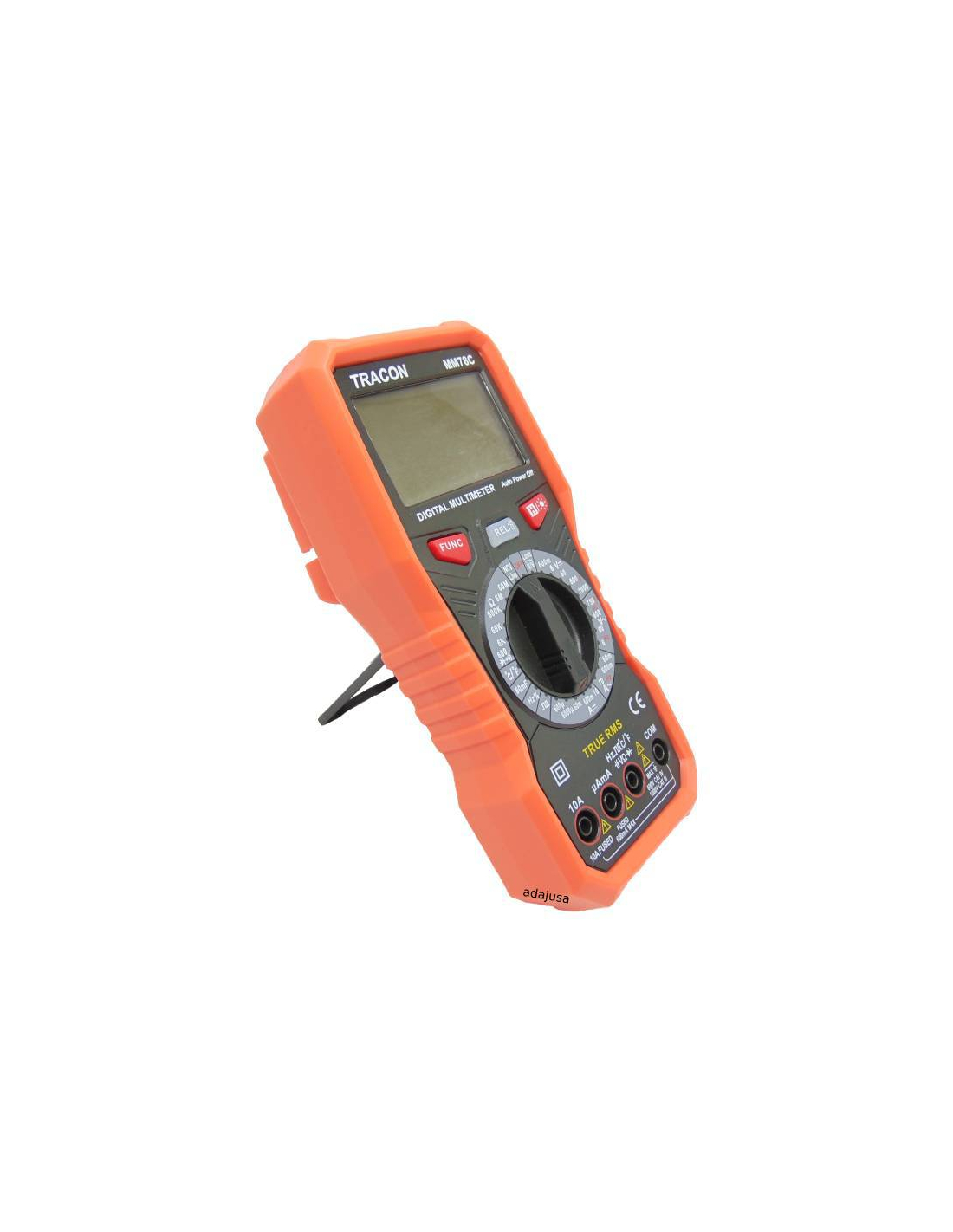

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated .

No queries yet, leave the first!
Privacy
Shipments
Returns


Digital multimeter with True RMS and CAT IV 600V measurement category. It performs voltage, current, resistance, frequency, capacitance, temperature, diode test, continuity and non-contact voltage (NVC) detection.

Manufacturer/Supplier: Tracon
Part number: MM78C


Technical specifications:

  • DC Voltage: 600mV, 6V, 60V, 600V, 1000V
  • AC Voltage: 6V, 60V, 600V, 750V
  • DC current: 600µA, 6mA, 60mA, 600mA, 6A, 10A
  • AC current: 60mA, 600mA, 6A, 10A
  • Resistance: 600Ω, 6kΩ, 60kΩ, 600kΩ, 6MΩ, 60MΩ
  • Frequency: 1Hz - 10MHz
  • Capacity: 60nfF - 60mF
  • Temperature: -20°C - 1000°C
  • Continuity:
  • Non-contact voltage detection (NVC)
  • Phase detection
  • Pulse generator


Other functions and features:

  • 3.5 digit LCD display
  • Backlit display
  • Measurement range selection: Manual
  • HOLD function (data hold)
  • Relative value
  • Vac/Vdc automatic identification
  • Flashlight
  • Overload indicator
  • Low battery indicator
  • Automatic shutdown
  • Operating temperature: 0 ～ 40°C
  • Battery: 2 x 1.5V AA (included)
  • Degree of protection: IP20
  • Dimensions: 185 × 88 × 54 mm
  • Weight: 355gr

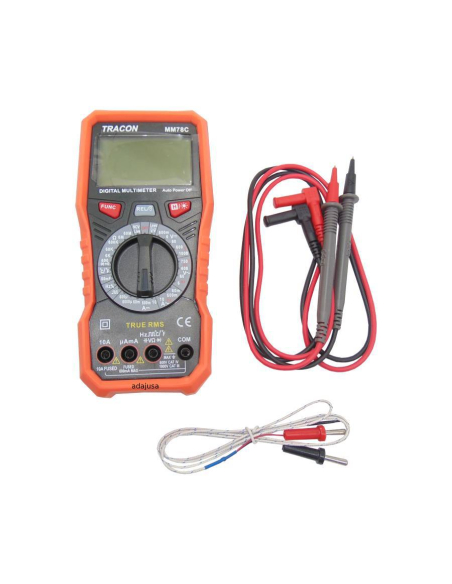

  • Accessories: Holster, test leads, temperature probe, 9V battery
