Motorvariator three-phase 0.5CV flange B5 diameter 160 shaft diameter 14
Motorvariator three-phase 0.5CV flange B5 diameter 160 shaft diameter 14

Three-phase variable speed gearmotor 0.5HP flange B5 diameter 160 axle diameter 14

€295.65 Tax included

€244.34 tax excl.

motorvariator three-phase 0.5hp with flange B5 Ø160 and output shaft Ø14, with which you can vary the speed of the turn by means of the lateral maneuvering wheel between 950 and 190 rpm. The coupling is carried out by flange type B5.

The supply comprises:

  • Three-phase motor 0.37kw (0.5HP).
  • Variator size 71.

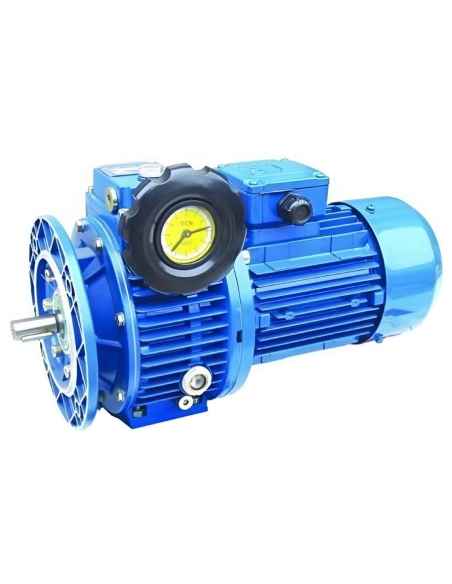

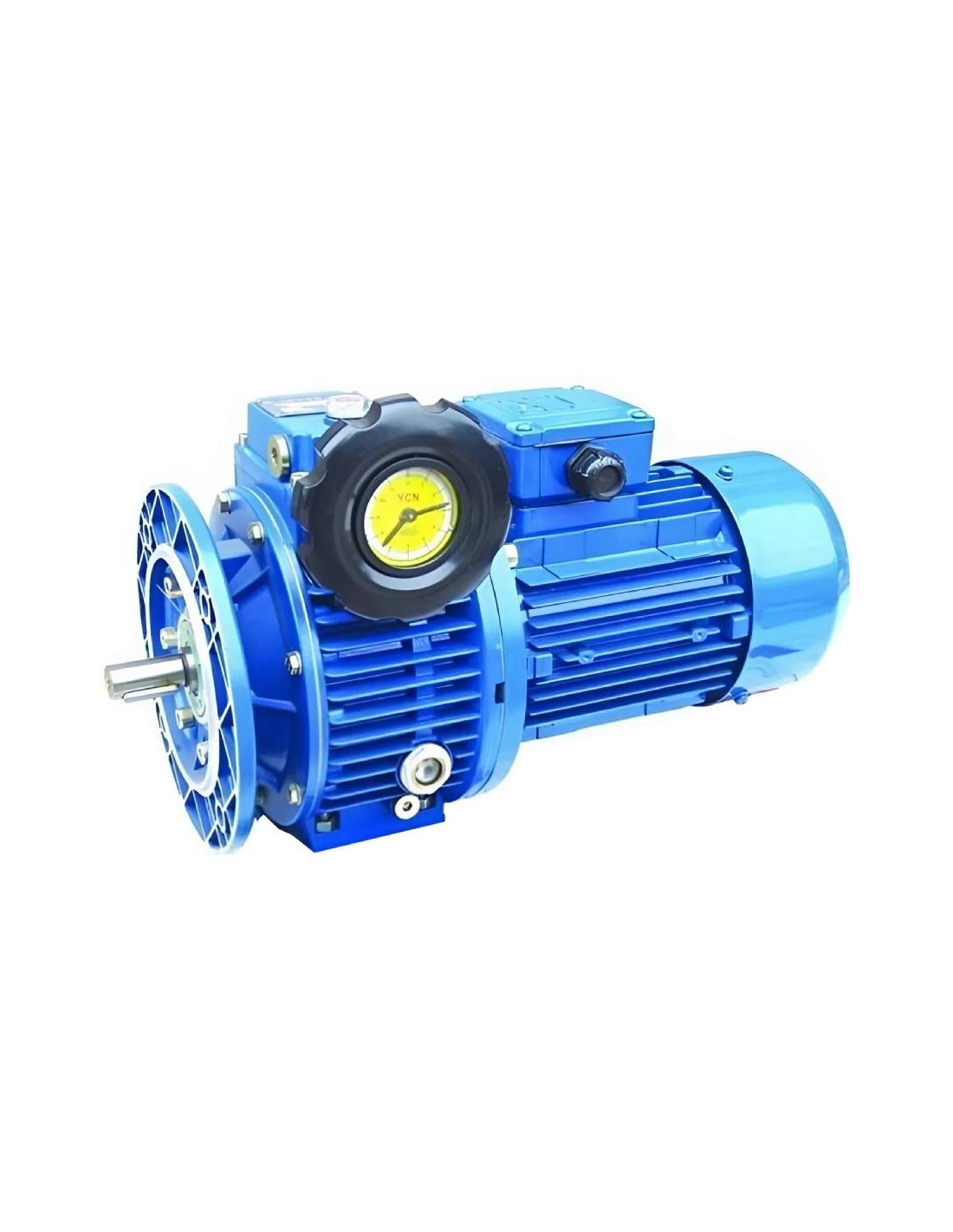

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!


motorvariator composed of a planetary disc drive of size 71, with PAM 14/160 output flange, and three-phase motor of 0.5HP (0.37kw) 230/400Vac 1500 rpm.

The variation of the rotational speed of the output shaft is continuous in a speed range between 950 and 190 rpm, this is achieved by acting on a maneuvering wheel, the regulation of the same is continuous, silent and uniform thanks to the high and symmetrical number of contact points of the variation mechanism. It stands out for its ease of adaptation and assembly, coaxial shape, compact and of small dimensions.

Specifications:

  • Type: VTF 0.37B5.
  • Motor type: Three-phase asynchronous.
  • Voltage: 230/400V. III. 50 Hz.
  • Power: 0.37Kw (0.5HP).
  • Intensity (In) at 400Vac: 1,1A.
  • number of motor poles: 4.
  • Engine revolutions: 1340 rpm.
  • Motor housing size: 71.
  • Degree of protection: IP-55.
  • Reducer size: 71.
  • Output rev range approx: 950..190 rpm.
  • Output flange: B5.
  • Diameter Output shaft: 14mm.
  • Outlet flange diameter: 160mm.
  • Lubrication: ISO VG320 oil.
  • Housing material: Aluminum.
  • Color: Blue.

Dimension Summary:

Dimensiones motovariadores VTF

It must be borne in mind that this type of mechanical drives require maintenance, the amount of lubrication oil must be checked and that they cannot be regulated stopped, if a regulation is attempted with the variator stopped, there will be a mismatch of the planetarium system, you can not work in these conditions, there will be an excessive heating of the regulator and if this situation is maintained over time, a serious breakdown of the same. Keep in mind that this type of incident is not covered by the warranty.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab.
Material for professional use, install in compliance with the regulations in force at the place of installation
