Motorvariator three-phase 3CV flange B5 diameter 250 shaft diameter 28
Motorvariator three-phase 3CV flange B5 diameter 250 shaft diameter 28

Three-phase variable speed gearmotor 3HP flange B5 250 diameter 28 diameter shaft

€750.04 Tax included

€619.87 tax excl.

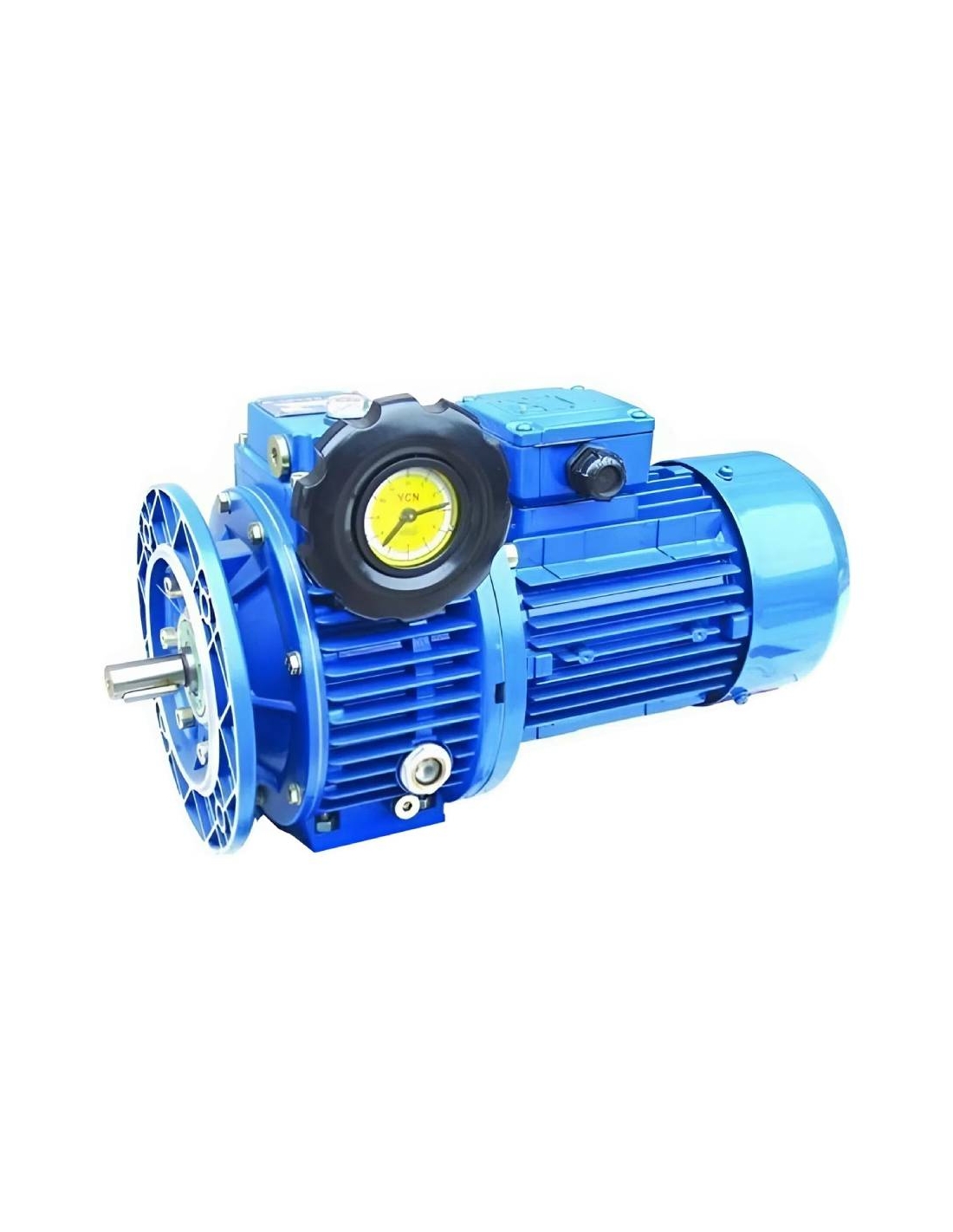

motorvariator three-phase 3HP with flange B5 Ø250 and output shaft Ø28, with which you can vary the speed of the turn by means of the lateral maneuvering wheel between 950 and 190 rpm. The coupling is carried out by flange type B5.

The supply comprises:

  • Three-phase motor 2.2kw (3CV).
  • Variator size 100.











Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.










This pack contains

No queries yet, leave the first!


Motorvariator composed of a size 80 planetary disc drive, with PAM 28/250 output flange, and 3HP (2.2kw) 230/400Vac 1500 rpm three-phase motor.

The variation of the rotational speed of the output shaft is continuous in a speed range between 950 and 190 rpm, this is achieved by acting on a maneuvering wheel, the regulation of the same is continuous, silent and uniform thanks to the high and symmetrical number of contact points of the variation mechanism. It stands out for its ease of adaptation and assembly, coaxial shape, compact and of small dimensions.

Specifications:

  • Type: VTF 2.2B5.
  • Motor type: Three-phase asynchronous.
  • Voltage: 230/400V. III. 50 Hz.
  • Power: 2.2Kw (3HP).
  • Intensity (In) at 400Vac: 4.83A.
  • number of motor poles: 4.
  • Engine revolutions: 1420 rpm.
  • Motor housing size: 100.
  • Degree of protection: IP-55.
  • Reducer size: 100.
  • Output rev range approx: 950..190 rpm.
  • Output flange: B5.
  • Diameter Output shaft: 28mm.
  • Outlet flange diameter: 250mm.
  • Lubrication: ISO VG320 oil.
  • Housing material: Aluminum.
  • Color: Blue.

Dimension Summary:

Dimensiones motovariadores VTF

It must be borne in mind that this type of mechanical drives require maintenance, the amount of lubrication oil must be checked and that they cannot be regulated stopped, if a regulation is attempted with the variator stopped, there will be a mismatch of the planetarium system, you can not work in these conditions, there will be an excessive heating of the regulator and if this situation is maintained over time, a serious breakdown of the same. Keep in mind that this type of incident is not covered by the warranty.


To expand the information you can download the technical sheet by clicking on the "Attachments" tab.
Material for professional use, install in compliance with the regulations in force at the place of installation
