Luminous green and red double push button head - EMS

€3.73 Tax included

€3.08 tax excl.

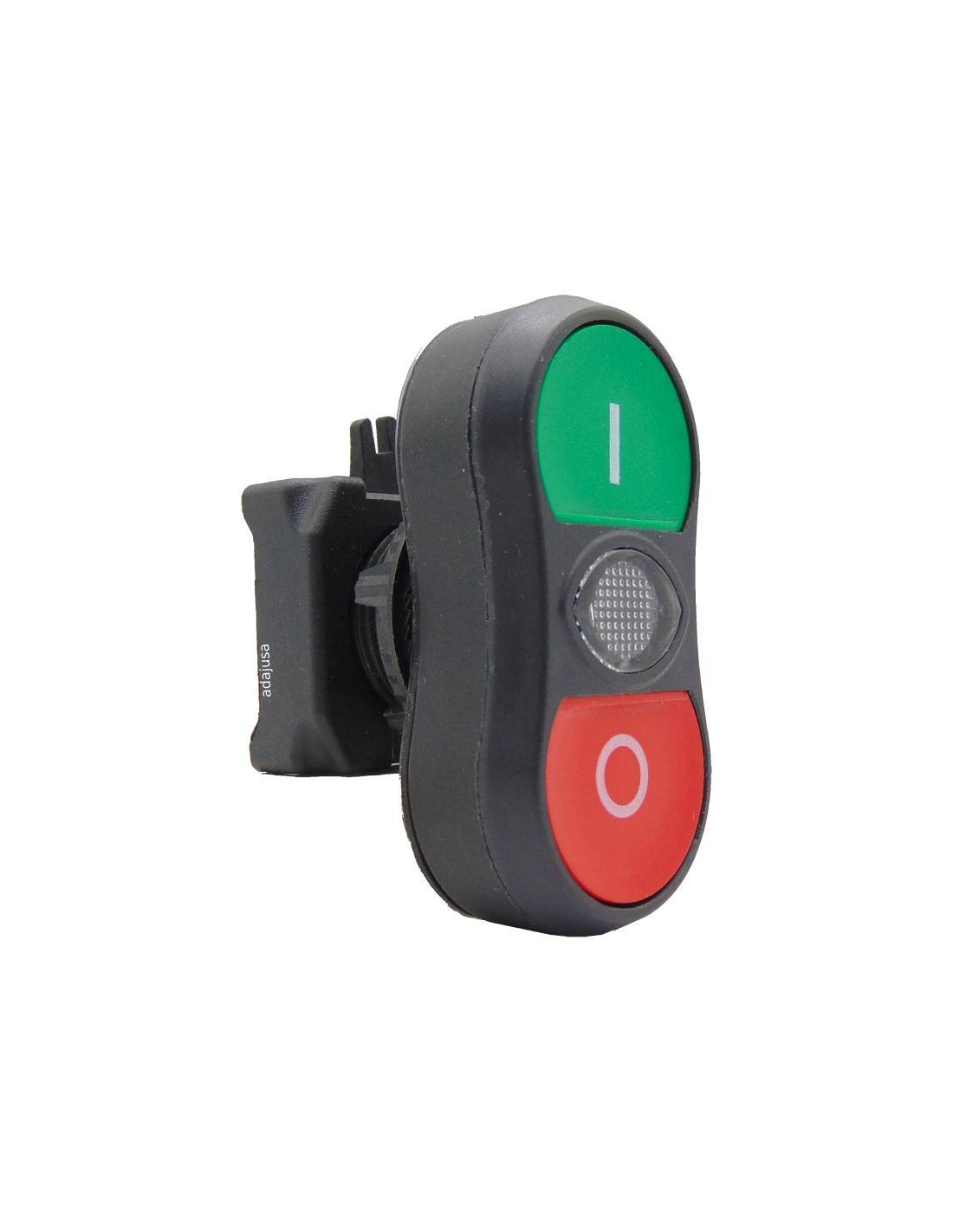

Double luminous on-off push-button head, flush green and red push-button. Diameter of the fixing hole 21,4mm.

Includes push button head and contact holder for mounting up to 2 contacts, both open and closed, and luminous block.

Product manufactured in Europe.



Part number: OMB12001



Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Double luminous on-off push button head, flush green and red push button, inscription I - O. Diameter of the fixing hole 21,4mm. Includes push button head and contact holder for mounting up to 2 contacts, both open and closed, and luminous block. Product manufactured in Europe.

Push button head compatible with the following EMS contacts and lampholder blocks:

  • Open contact (NO) screw connection: CNO1
  • Closed contact (NC) screw connection: CNC1
  • Contact open (NO) spring-cage connection: CNO2
  • Closed contact (NC) spring-cage connection: CNC2
  • Lamp holder block with integrated white LED 24Vac/dc: LL1524
  • Lamp holder block with integrated white LED 240Vac: LL15240AC


Delivery does not include any contacts or lamp holder blocks, they will have to be ordered separately.



Dimensions:




Mounting:








Material for professional use, install respecting the regulations in force at the place of installation
