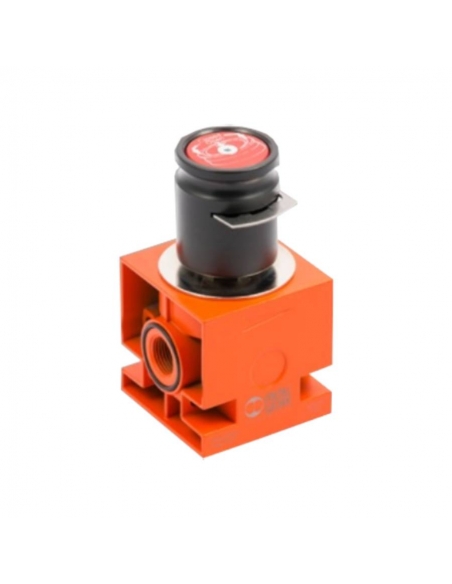

Manual circuit isolating valve 1/4 New Deal - Metal Work

€80.88 Tax included

67.4 tax excl.

1270001

Circuit sectioning valve with manual control 1/4"

Shutter system with the possibility of inserting a padlock.

Reference: 1270001

metal work logo

Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!

Circuit sectioning valve with manual control 1/4

Shutter system that guarantees high flow rates, possibility of triple blocking with a padlock, activation occurs by pressing the disc up to the spring, to purge press the handle downwards. Possibility of inserting a padlock to avoid accidental activations.

Reference: 1270001

Characteristics:

Maximum inlet pressure: 18 bar
Flow rate at 6.3 bar (0.63MPa ÷ 91 psi) P0.5bar (0.05 MPa ÷ 7 psi) Nl/min: 1100
Flow rate at 6.3 bar (0.63MPa ÷ 91 psi) P1bar (0.1 MPa ÷ 14 psi) Nl/min: 1500
Maximum temperature at 1MPa; 10bar; 145psi: 50ºC
Weight: 0.35Kg
Wall fixing screws: M4x40
Control type: Manual

Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.

Newdeal group file

Download (3.12MB)
