Manual circuit isolating valve 3/8 New Deal - Metal Work

€96.90 Tax included

80.75 tax excl.

1370001

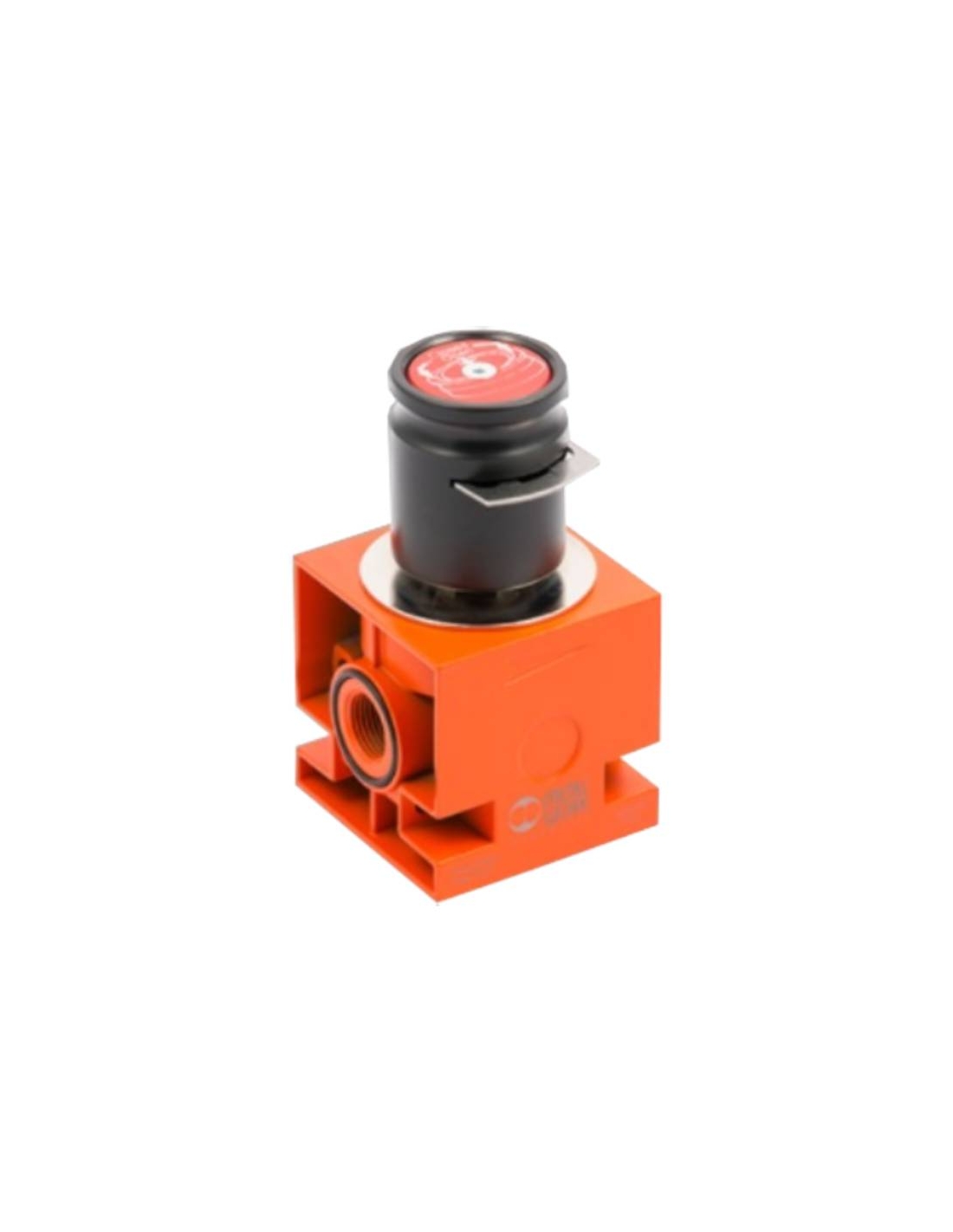

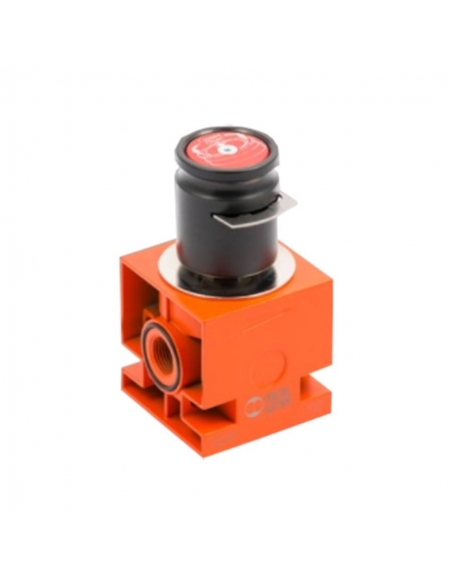

Circuit sectioning valve with manual control 3/8

Shutter system that guarantees high flow rates, possibility of triple blocking with a padlock, activation is produced by pressing the disc up to the spring, to purge press the handle downwards. Possibility of inserting a padlock to avoid accidental activations.

Reference: 1370001



metal work logo

Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns

Circuit sectioning valve with manual control 3/8

Shutter system that guarantees high flow rates, possibility of triple blocking with a padlock, activation occurs by pressing the disc up to the spring, to purge press the handle downwards. Possibility of inserting a padlock to avoid accidental activations.

Reference: 1370001

 Features:

  • Maximum inlet pressure: 18 bar
  • Flow rate at 6.3 bar (0.63MPa ÷ 91 psi) P0.5bar (0.05 MPa ÷ 7 psi) Nl/min: 2200
  • Flow rate at 6.3 bar (0.63MPa ÷ 91 psi) P1bar (0.1 MPa ÷ 14 psi) Nl/min: 2900
  • Maximum temperature at 1MPa; 10bar; 145psi: 50ºC
  • Weight: 0.8Kg
  • Wall fixing screws: M4x55
  • Control type: Manual

Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.
