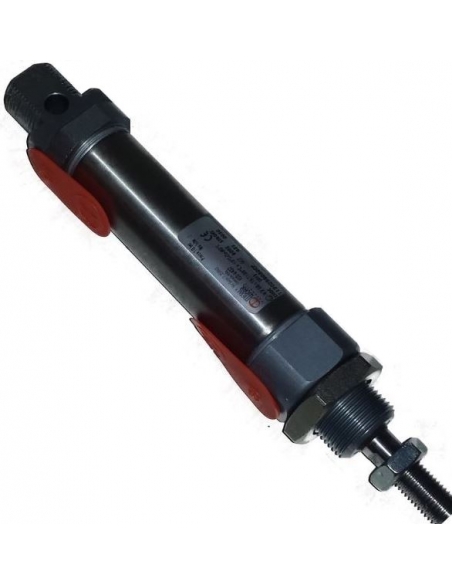

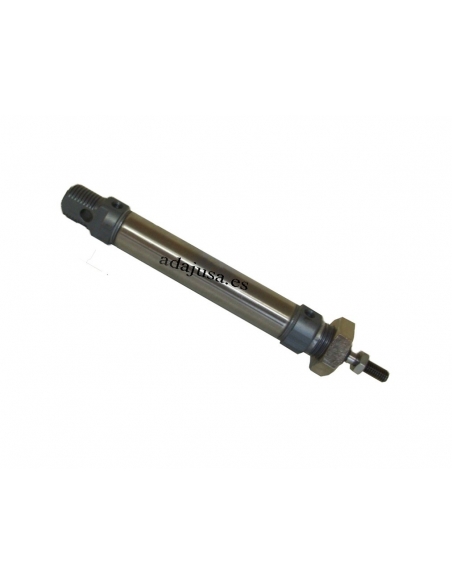

Pneumatic cylinder 16x10 double-acting - Metal Work

€36.07 Tax included

€29.81 tax excl.

Pneumatic cylinder Ø16x10 double acting magnetic cylinder with elastic cushioning. According to ISO 6432 standard, liner in pressed stainless steel. Chrome-plated steel piston rod.
Part number: 1120160010CN

simbolo cilindro sin amortiguacion

Logotipo Metal Work
Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Pneumatic cylinder diameter 16 mm stroke 10mm, double acting and prepared for magnetic detection, elastic cushioning. The pneumatic cylinder is manufactured according to ISO 6432 standard, with pressed stainless steel sleeve. Chrome-plated steel piston rod. Wide range of accessories for mounting the pneumatic cylinder.

Technical characteristics of the pneumatic cylinder:

  • Manufacturer: Metal Work
  • Manufacturer's reference: 1120160010CN
  • Bore and stroke: Ø16x10mm
  • Piston rod diameter: 6mm
  • Type: Double acting pneumatic cylinder
  • Fluid type: Air with or without lubrication
  • Manufacturing standard: ISO 6432
  • Maximum operating pressure: 10 Bar
  • Maximum theoretical thrust force at 6 Bar: 10,1 kg
  • Maximum theoretical tensile force at 6 Bar: 8,6 kg
  • Type of seals: NBR
  • Operating temperature: -10ºC to +80ºC
  • Type of construction: Stem and end caps in chrome-plated steel, stainless steel sleeve

For other strokes or diameters, please consult us

Dimensiones cilindro neumático 25x250

Material for professional use, to be installed in compliance with the regulations in force at the place of installation.

For further information you can download the technical data sheet by clicking on the "Attachments" tab
