Valve 1/8 3-way bi-stable - Metal Work
Valve 1/8 3 bistable vias - Metal Work - ADAJUSA
Valve 1/8 3-way bi-stable - Metal Work
Valve 1/8 3 bistable vias - Metal Work - ADAJUSA

Valve 1/8 3-way bi-stable - Metal Work

€35.66 Tax included

€29.47 tax excl.

Valve 1/8 3-way bistable

Reference: 7010010100

Logotipo Metal Work

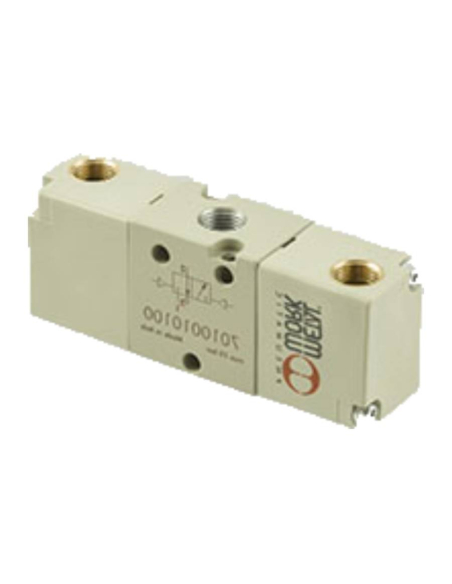

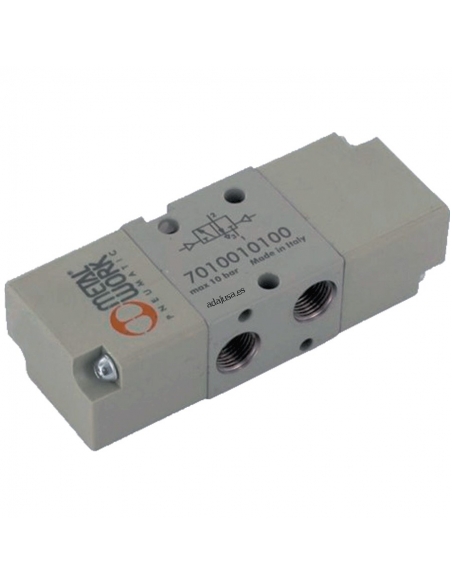

Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Pneumatic valve 1/8 3 ways bistable.

Manufacturer: Metal Work.

Reference :P NV 23 PNB O Code: 7010010100.

  • Operating pressure bar: Empty ÷ 10
  • Minimum monostable drive pressure bar: 1
  • Operating temperature °C: -10 ÷ +60
  • Nominal diameter mm: 5
  • Conductance C Nl/min · bar: 121.43
  • B bar/bar critical ratio: 0.32
  • Flow rate at 6 bar ΔP 0.5 bar Nl/min: 400
  • Flow rate at 6 bar ΔP 1 bar Nl/min: 550
  • Monostable TRA/TRR at 6 bar ms: 6/15
  • Bistable TRA/TRR at 6 bar ms: 7/7



Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
