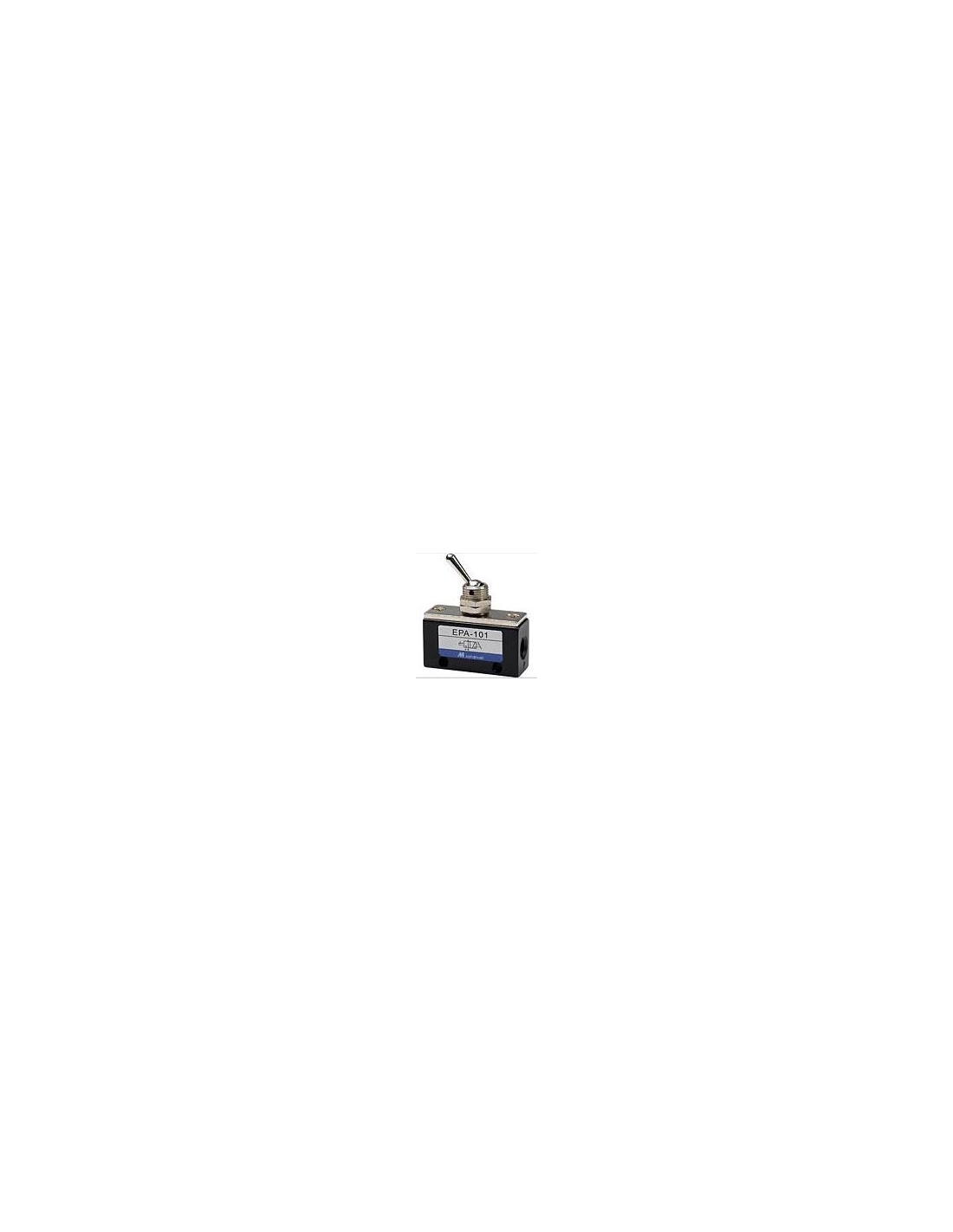

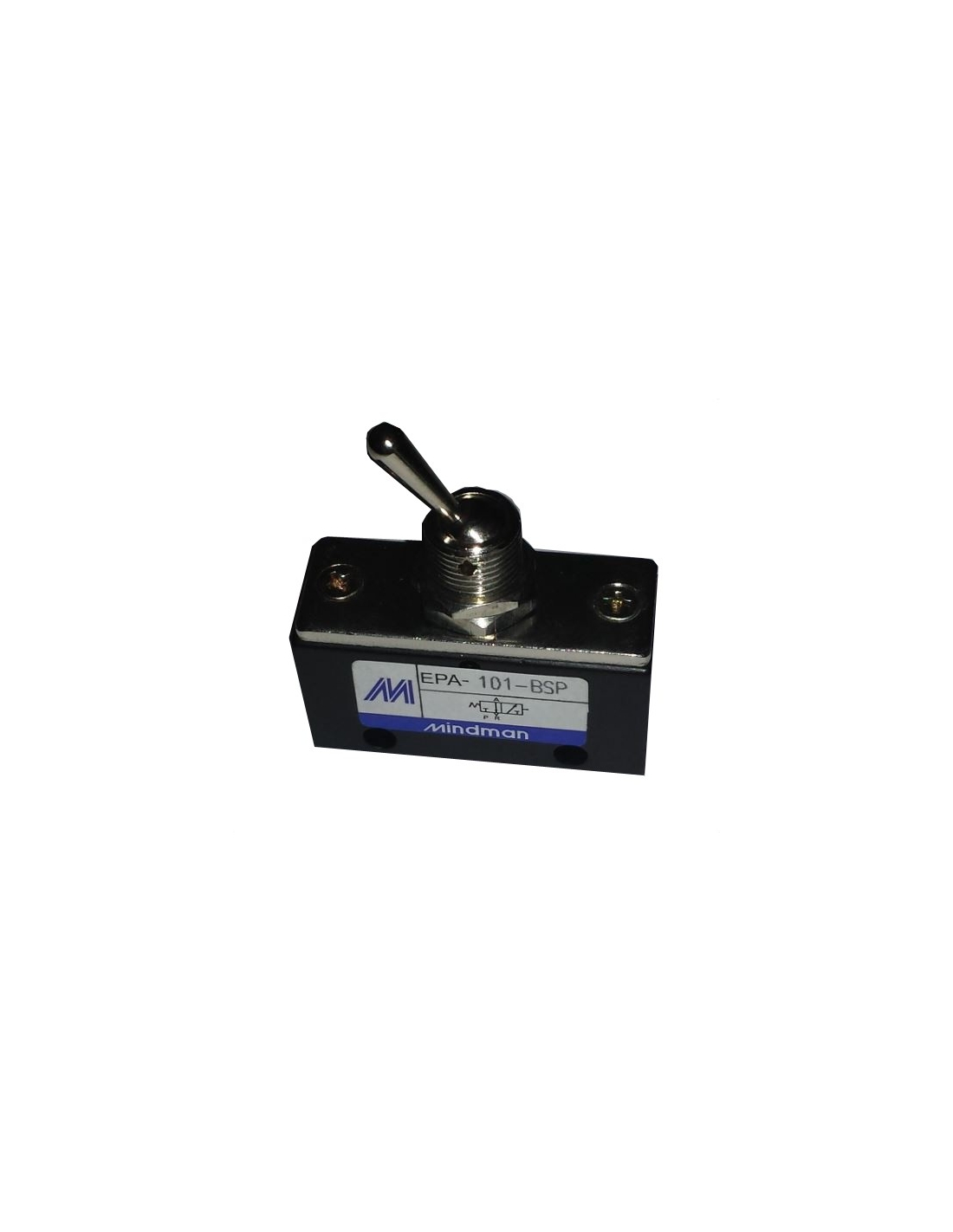

Pneumatic switch lever 1/8-3/2 NC - Mindman

€21.03 Tax included

€17.38 tax excl.

Pneumaticswitch, mechanically operated pneumatic valve, 1/8 3-way normally closed thread (NC). The limit switch is operated by manual lever with 2 fixed positions.

Reference: 281EPA101

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Pneumatic stroke end,mechanically operated pneumatic valve by metal lever. End-of-stroke connections are 1/8" threaded. The valve is normally closed 3-way (NC), when it is not actuated there is no pressure at the outlet and the outlet is communicated with the exhaust, when operated, air pressure appears at the outlet.

Technical details:

Manufacturer: Mindman.
Manufacturer's Reference: EPA-101.
Valve type: 1/8-3/2 bistable.
Thread type: G 1/8".
Drive type: Manual lever 2 fixed positions.
Number of tracks: 3.
Fluid type: Air under pressure, with or without lubrication.
Working pressure: 0÷9 Kgr/cm2.
Maximum pressure: 9 Kgr/cm2.
Working temperature: -5 to 60oC.
Material: Alumio and steel.
Weight: 104g.

EPA pneumatic limit switches

EPA valve data sheet Mindman

Download (364.47KB)

Annex instructions for use elec.

Document attached to the instructions for use of electrical equipment

Download (402.62KB)
