Adapter for quick plug 10mm European profile...
Adapter for quick plug 10mm European profile spike - Aignep

Adapter for quick plug 10mm European profile spike - Aignep

€1.20 Tax included

€0.99 tax excl.

Adapter for quick plug type spike, for 10mm diameter tube , European profile. Adapter valid for European profile and universal profile quick couplers (Multipresa Series), as well as for European profile safety quick couplers. This type of plug allows a simple and quick connection and disconnection of pneumatic elements and tools.

Series: 260
Reference: 265 10

261scheme
aignep
certificate191

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!

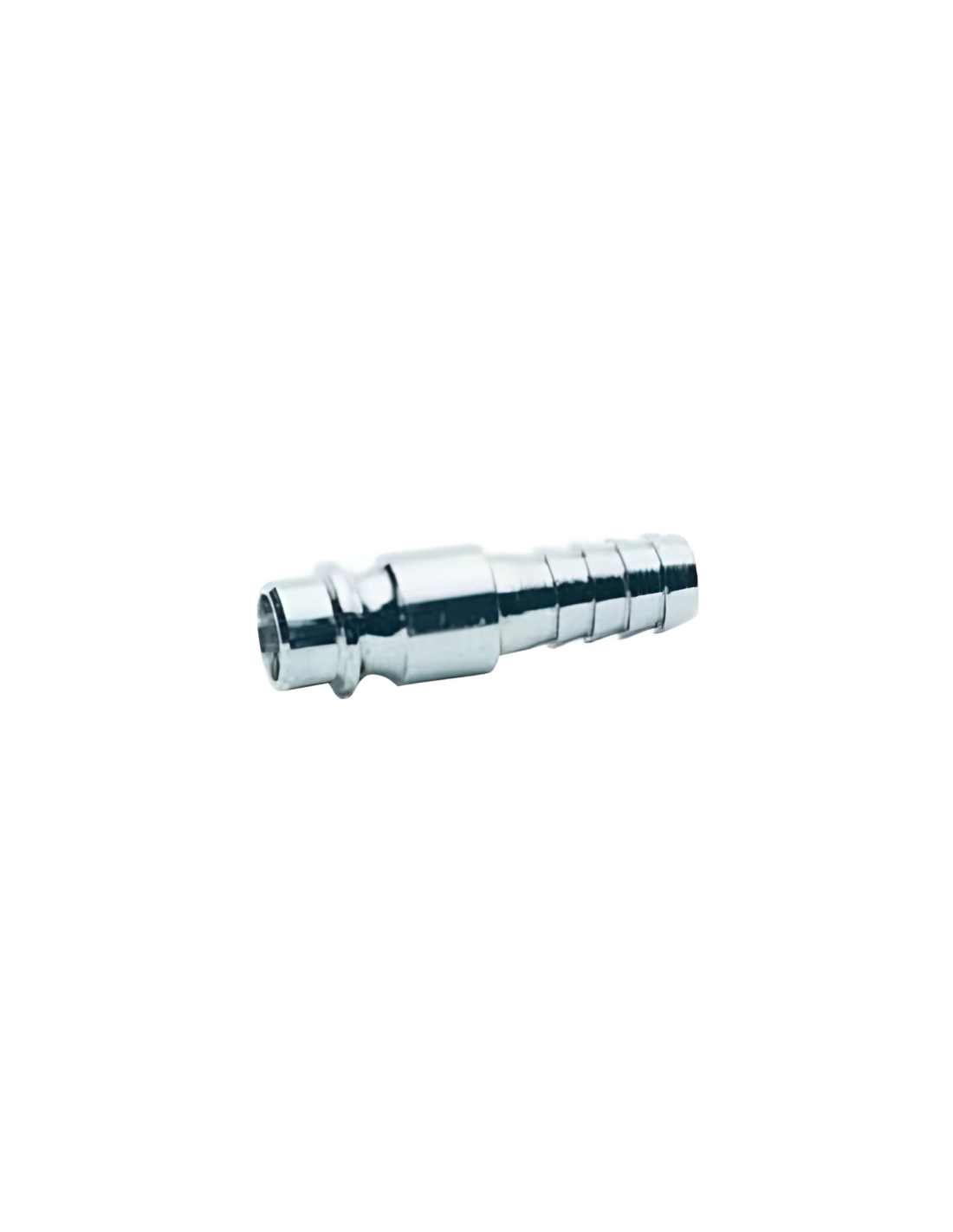

Adapter for quick coupling type spike for 10mm diameter tube or hose, European profile. The use of quick couplings together with this type of adapters allows a simple and quick connection and disconnection of tools, machinery and pneumatic elements in the installed distribution network, avoiding air losses between the plug and the tool. Made of nickel-plated brass.


Adapter valid for European profile quick couplings of the 160 series and universal quick couplings of the universal series (Multipresa Series), as well as for European profile quick couplings of the 660 series of the Aignep brand.

Main technical characteristics:

  • Manufacturer: Aignep
  • Reference: 265 10
  • Type: Spike
  • Tube outer diameter: 10mm
  • Profile: European
  • Compatible fluid: Compressed air
  • Working pressure: 0 to 16 bar
  • Maximum static pressure (without pulsations): 35 bar
  • Working temperature range: -20ºC to +80ºC
  • Passage diameter (DN): 7.5mm - 7.8mm
  • Flow rate at 6 bar ΔP 1 bar : 1300 Nl/min
  • Flow rate at 6 bar ΔP 0.5 bar : 1050 Nl/min
  • Flow rate at 6 bar ΔP 0 bar : 1830 Nl/min (free exhaust)



Dimensions:

265 dimensions
265td



Material for professional use, install in compliance with the regulations in force at the installation site.
