Quick male plug 3/8 European profile - Aignep

Name: Quick male plug 3/8 European profile - Aignep
Brand: Aignep
SKU: 73138
Price: 10.0309 EUR
Availability: PreOrder

€10.03 Tax included

€8.29 tax excl.

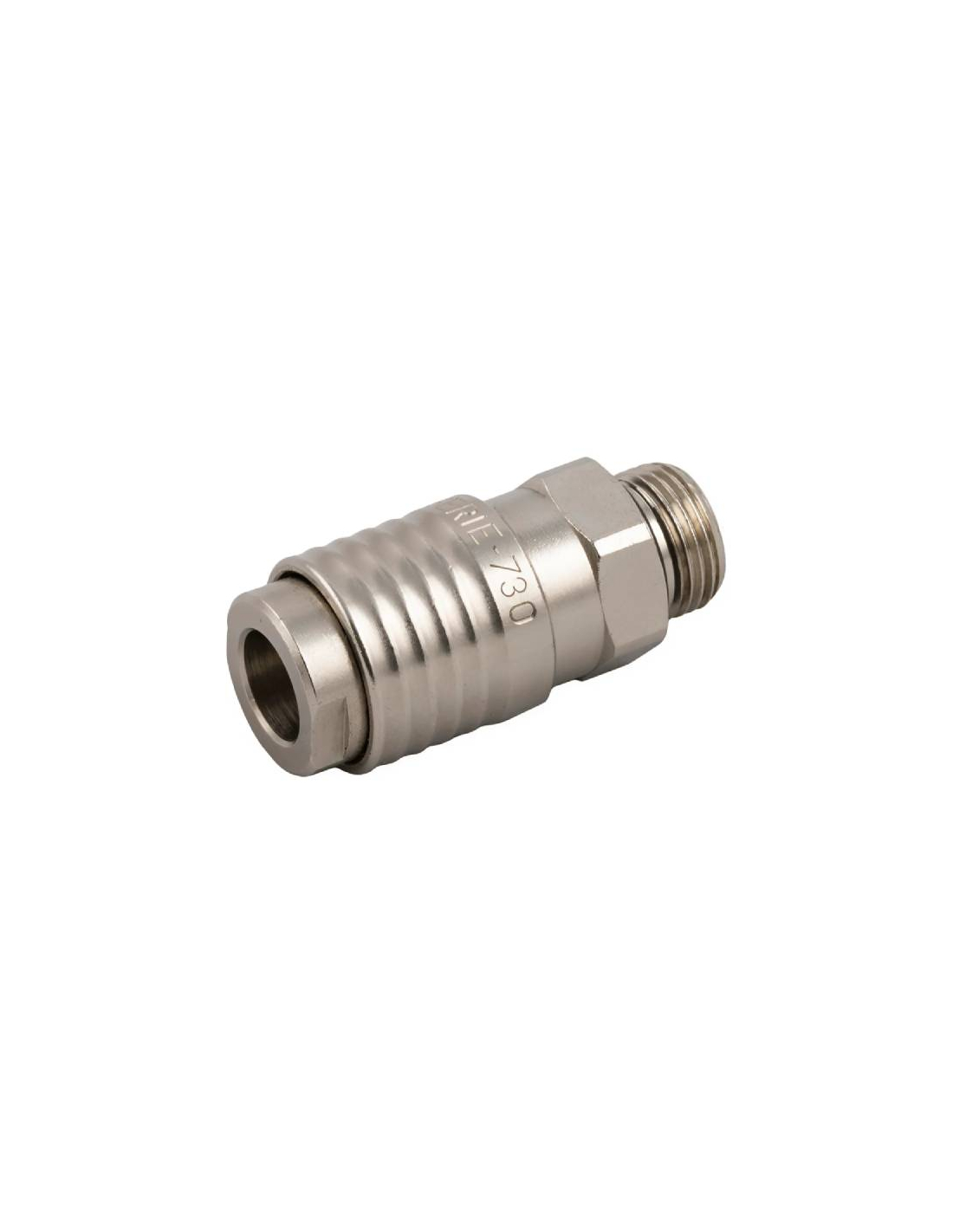

Quick coupling with G 3/8 cylindrical male thread , 730 series. European profile coupling, interchangeable with the different types of adapters approved on the market with a European profile, guaranteeing perfect sealing for all of them. This type of coupling allows for quick and easy connection and disconnection of pneumatic elements and tools.

Aignep ’s 730 series of “Top Flow” quick couplings incorporate a specially designed shutter , which significantly diffuses air into a compact and robust coupling. The flow rate reaches 2550 N/min, which increases the flow of a traditional quick connector by more than 25%. It can be used for air, vacuum and water.

Compatible and interchangeable with profile adapters European, series 260, 63260 INOX and 840.

Series: 730
Reference: 731 3/8

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Quick coupling with G 3/8 cylindrical male thread, 730 series. European profile coupling, interchangeable with the different types of adapters approved on the market with a European profile, guaranteeing perfect sealing for all of them. This type of coupling allows for a simple and quick connection and disconnection of pneumatic elements and tools. They are widely used in those applications where frequent and quick connections and disconnections are required, especially recommended for supplying high-flow pneumatic tools or industrial applications.

Aignep ’s 730 series of “Top Flow” quick couplings incorporate a specially designed shutter , which significantly diffuses air into a compact and robust coupling. The flow rate reaches 2550 N/min, which increases the flow of a traditional quick coupling by more than 25%. It can be used for air, vacuum and water.

The working pressure is guaranteed at 16 bars, but depending on the characteristics of the connected elements, it could also reach 35 bars.

731drawing3

The use of quick couplings in pneumatic installations provides a quick and easy method of connecting tools, machinery and other elements to the installed pneumatic distribution network. The connector is a European profile DN 7.8 and is widely interchangeable with the most popular models available on the market.

The body is made of nickel-plated brass, the spring and ball are made of stainless steel and the seals are made of NBR.

731materials

Main technical characteristics:

Manufacturer: Aignep
Reference: 731 3/8
Thread type: G 3/8 male
Compatible fluid: Compressed air, vacuum and water
Boards: NBR
Working pressure: - 0.99 to 16 bar
Maximum static pressure (without pulsations): 35 bar
Working temperature range: - 20ºC to +80ºC
Adapter compatibility: European, 260, 63260 INOX and 840 series.

Flow rate as a function of nominal diameter:

Dimensions:

731drawing
731td

Professional use material, install in compliance with the regulations in force at the installation site.

Catalogo serie 730

Download (1.18MB)
