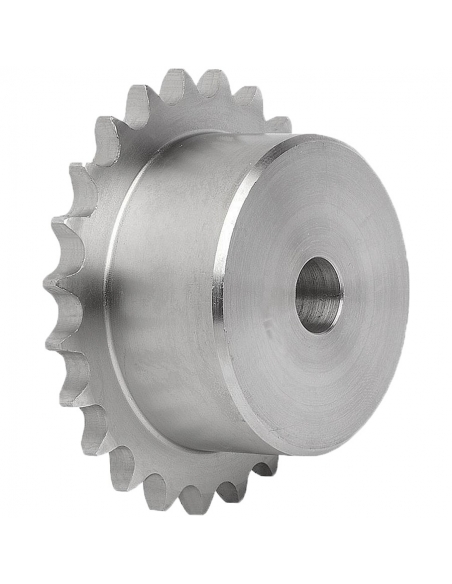

Roller chain sprockets 1/2 x 5/16 08B-1 Z11 DIN8187 - ISO R606

€4.39 Tax included

3.66 tax excl.

P1251608B1Z11

Single pinion for single roller chain model 08B-1 according to European standard DIN8187 - ISO/R606

Reference: PINHON Z11 1/28

Teeth: 11

ISO: 08B-1

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Simple sprockets for single roller chains 08B-1 according to European standard DIN ISO 606

Manufacturer: Technox

Reference: PINHON Z11 1/28


Characteristics:

  • 1/2" x 5/16" mm ISO 08B-1
  • 12.7 x 7.75 mm
  • Teeth: 11
  • Roller diameter: 8.51 mm
  • Tooth radius (r): 13 mm
  • Curved area width (C): 1.3 mm
  • Tooth width (h1): 7.2 mm
  • Outer Diameter (S): 48.72
  • Primitive diameter (Dp): 45.07
  • Center diameter (d): 29
  • Hub diameter (D): 10 (Non-mechanical shaft diameter)
  • Width (H): 25


Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

Simple roller chain ISO DIN 8187 ISB - ADAJUSA
Roller chains European standard ISO DIN 8187

Single step roller chain 12.7 1/2 08B-1 DIN 8187

ISB-Cadenas
CAD08B-1
Starting from €6.48 (€5.40 tax excl.)
Simple roller chain standard according to European standard ISO DIN 8187, up to 98% performance (*), very light and compact which allows them to be installed in very limited spaces. Reference: 57250020  Step: 12.7- 1/2" Roller diameter: 8.51 mmPrice per meter. Sale exclusively by packaging of multiples of 5 meters. Representative image for...
View

16 other products in the same category:

Customers who bought this product also bought:

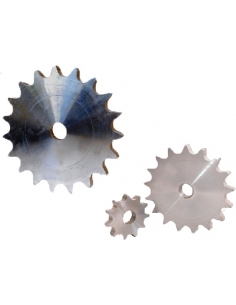

Toothed discs or simple toothed chains - ADAJUSA
