Cam switch 4-pole  125a 95x95mm yellow-red -...
Cam switch 4-pole  125a 95x95mm yellow-red - Giovenzana

Cam switch 4-pole 125a 95x95mm yellow-red - Giovenzana

€139.82 Tax included

€115.55 tax excl.

Rotary switch, tetrapolar main switch 125a., rotary knob 90º 0-1. Yellow front plate with yellow knob, 92x92mm front plate dimensions, locking possibility. Carried out in accordance with the strictest European standards that allow to meet the safety requirements.
Suitable for interruption, connection and switching of electrical circuits as well as direct start of motors and main switch in machines.

reference: GI12504E92R
esquema electrico interruptor 4 polos

Giovenzana
Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!

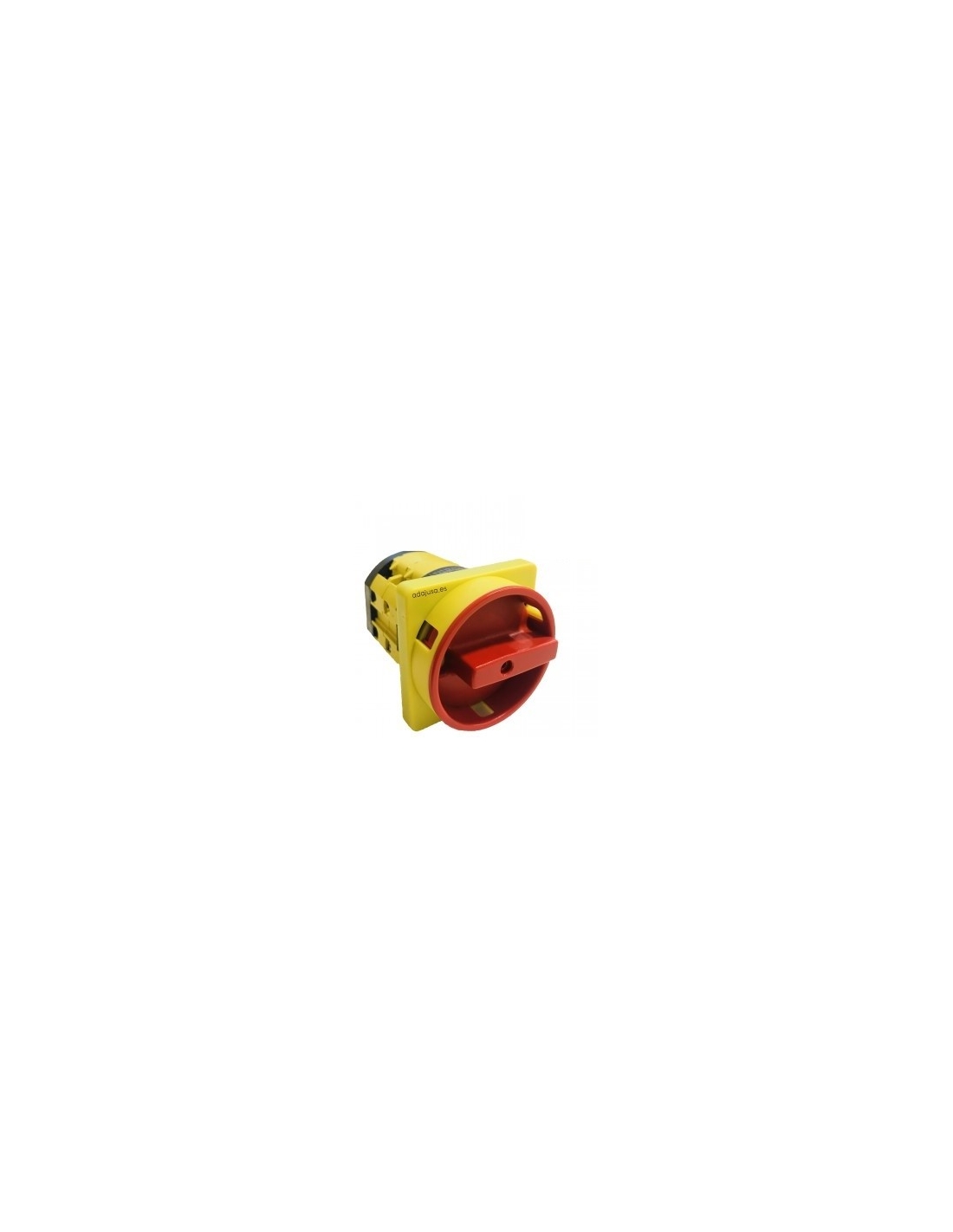

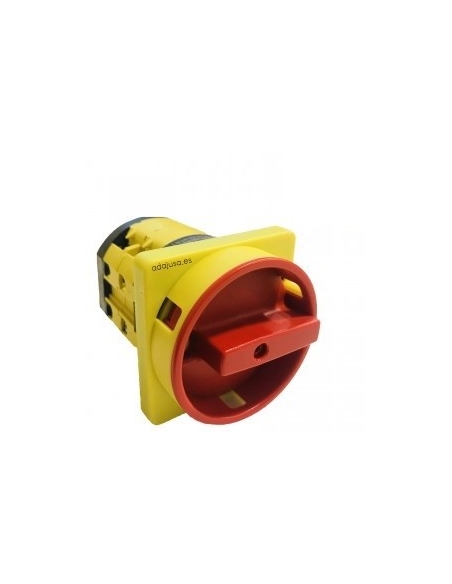

Tetrapolar cam switch 125a inductive loads (electric motors) and general control. Rotary control 90º two positions 0-1. Front control yellow with red lever, 92x92mm. Possibility of locking.

This series of rotary switches have been made according to the strictest European and international standards (IEC/EN 60947-3, UL508), which allows them to meet all safety requirements.

Mounting by transpanel fixation (rear-frame), degree of protection IP-20 in terminals, self-cleaning contacts and indelible laser marking. Body made of UL94 VO self-extinguishing material.

Supply includes:

  • Tetrapolar switch: G1250004R
  • Front plate: 450/0001

Padlocks not included in the supply.

characteristics:

  • Brand: Giovenzana.
  • Switch reference: G1250004R
  • Plate reference: 450/0001
  • number of poles: 4
  • Rated voltage Ue: 690V.
  • Nominal current Ie (AC21A): 125a.
  • Nominal interrupt capacity: 10kA.
  • Number of manoeuvres / hours: 120.
  • Mechanical durability: 1,000,000 maneuvers.
  • Built-in mounting.
  • Degree of protection:
  • Type 1-4-4X controls: IP-65.
  • Lever-only controls: IP-40.
  • Bornes: IP-20.
  • Standards: EC; IEC60947; IEC60204; UL508 CSA 22.2 No14

Table of intensities and powers of use:

  • AC-21A Usage Category: 125a.
  • AC-22A Usage Category: 125a.
  • AC-23A Usage Category:
  • Standard single-phase motors 230Vac: 35A - 6.5kW.
  • Standard three-phase motors 230Vac: 35A - 11kW.
  • Standard three-phase 400Vac motors: 32A - 18.5kW.
  • AC-3 Usage Category:
  • Standard single-phase motors 230Vac: 30A - 5.5kW.
  • Standard three-phase motors 230Vac: 27A - 9kW.
  • Standard three-phase motors 400VAc: 27A - 15kW.
  • Use category DC-21A (dc current):
  • Small overload 50V (1 phase): 32A.
  • Use category DC-22A (dc current):
  • 30V mixed load (1 phase): 25a.
