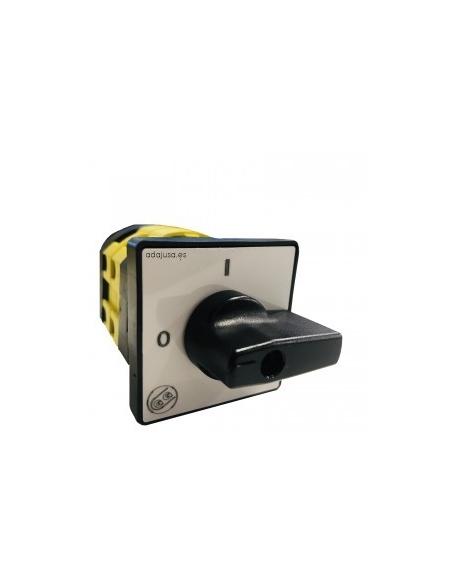

4-pole cam switch 40a 64x64mm black lever - Giovenzana
4-pole cam switch 40a 64x64mm black lever - Giovenzana

Cam switch 4-pole 40a 64x64mm black lever - Giovenzana

€31.00 Tax included

€25.62 tax excl.

Rotary cam switch, four-pole main switch, 4 poles, 40A., 90º 0-1 rotary handle, aluminum front plate and black handle, 64x64mm, made in accordance with the strictest European standards, which allow compliance with the requirements on safety matter.
Suitable for interruption, connection and switching of electrical circuits as well as direct starting of motors and main switch in machines.

Reference: GI400464N
4 pole switch wiring diagram
Giovenzana

Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

This pack contains

No queries yet, leave the first!


Four-pole cam switch, 4 poles, 40A for inductive loads (electric motors) and general control. 90º rotary knob, with two positions 0-1. Aluminum front plate and black handle, dimensions 64x64mm.

This series of rotary switches have been made in accordance with the strictest European and international standards (IEC/EN 60947-3, UL508), which allows them to meet all safety requirements.

Mounting by means of transpanel mounting (rear panel), IP-20 protection degree on terminals, self-cleaning contacts and indelible laser marking. Body made of self-extinguishing material UL94 VO.

The supply includes:

  • Three-phase cam switch 40A: C0400004R
  • Front plate with handle in black: 007/0001

Characteristic:

  • Brand: Giovenzana
  • Switch reference: C0400004R
  • Front plate reference: 007/0001
  • number of poles: 4.
  • Rated voltage Ue: 690V.
  • Rated current Ie (AC21A): 40A.
  • Rated breaking capacity: 10kA.
  • Number of maneuvers / hours: 120.
  • Mechanical durability: 1,000,000 operations.
  • Flush mount.
  • Degree of protection:
  • Type 1-4-4X controls: IP-65.
  • Controls with only handle: IP-40.
  • Terminals: IP-20.
  • Standards: CE; IEC60947; IEC60204; UL508 CSA 22.2 No.14

Table of intensities and powers of use:

  • Use category AC-21A: 40A.
  • Use category AC-22A: 40A.
  • Use category AC-23A:
  • Standard single-phase 230Vac motors: 35A - 6.5kW.
  • Standard 230Vac three-phase motors: 35A - 11kW.
  • 400Vac three-phase standard motors: 32A - 118.5kW.
  • Use category AC-3:
  • Standard single-phase 230Vac motors: 30A - 5.5kW.
  • Standard 230Vac three-phase motors: 27A - 9kW.
  • Standard three-phase 400VAc motors: 27A - 15kW.
  • Use category DC-21A (direct current):
  • Small overload 50V (1 phase): 32A.
  • Use category DC-22A (direct current):
  • Mixed load 30V (1 phase): 25A.
