Safety valve overpressure 1/8 9 Bar - Metal Work

€9.98 Tax included

€8.25 tax excl.

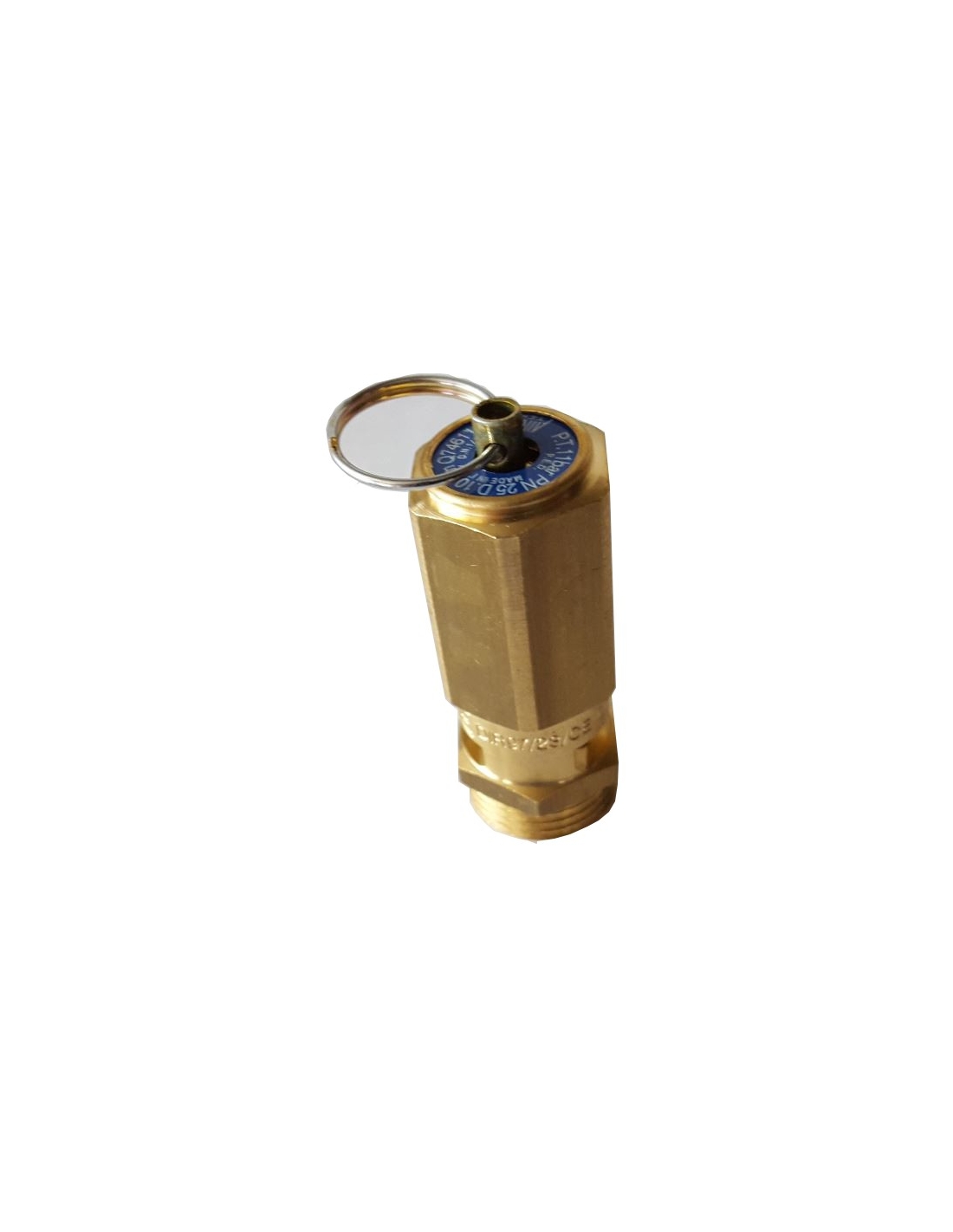

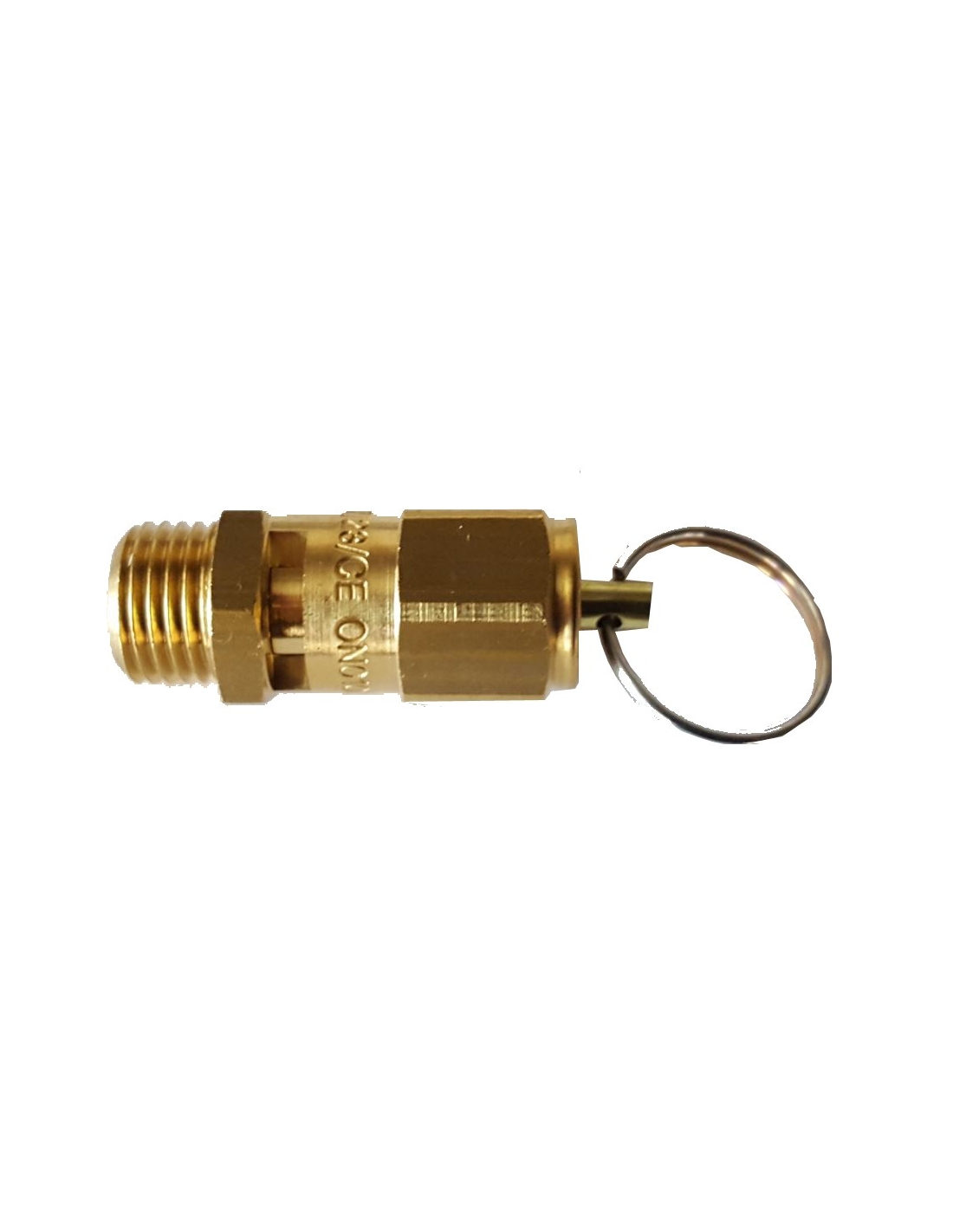

Overpressure safety valve for the relief of pneumatic circuits and compressors. With 1/8" thread adjusted and sealed at a pressure of 9 bars. The valve is supplied with its corresponding certificate.

Manufactured according to the MIE-AP17 regulation of the precision devices regulation, being built by spring and total lift seat.

Reference: VS1809APED4

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Overpressure valve with 1/8" thread and set to 9 bars. To avoid overpressions on the circuits in which it is installed or on compressors.

The valve is manufactured according to mie-AP17 regulations of the precision appliance regulations, being constructed by spring, total lift seat and pressed to the indicated working pressure.

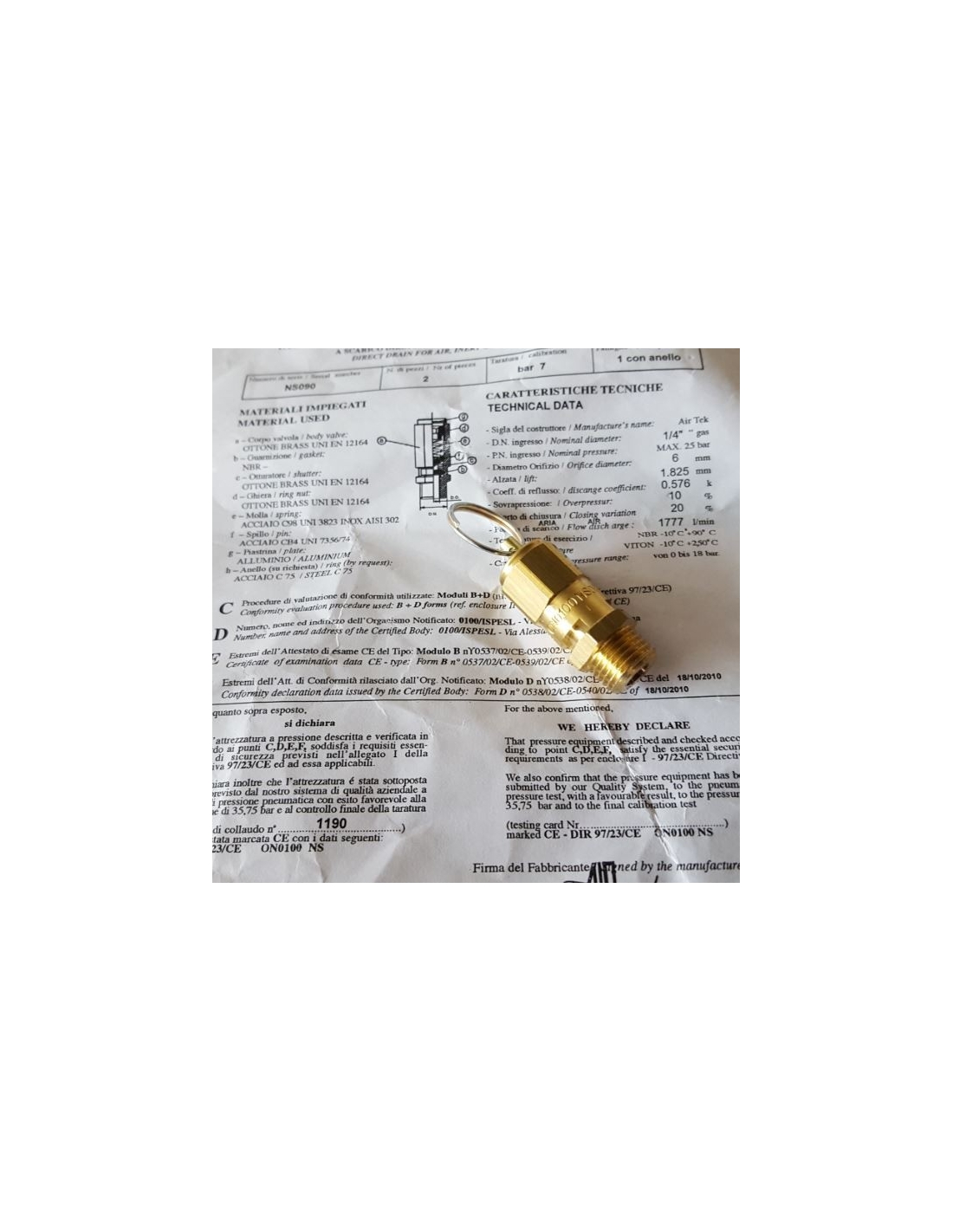

The valve is supplied with its corresponding certificate.

specifications:

  • - Supplier: Metal Work
  • - Reference: VS1809APED4
  • - Connection thread: G 1/8".
  • - Adjustment pressure: 9 Bars.
  • - Overpressure: +10% adjustment pressure.
  • - Maximum pressure: 40 Bars.
  • - Nominal diameter: 4mm.
  • - Flow rate: 700 l/min.

Dimensiones válvulas seguridad sobrepresión

  • Dimension "A":
  • Dimension "B":
  • Dimension "C":

For other sizes or adjustment pressures consult.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"
