Safety valve overpressure 1/8 15 Bar - Metal Work

€4.21 Tax included

€3.48 tax excl.

Overpressure safety valve for the relief of pneumatic circuits and compressors. The valve is supplied sealed with its corresponding certificate.

Manufactured according to the MIE-AP17 regulation of the precision devices regulation, being built by spring and total lift seat.

Reference: VS1815APED4

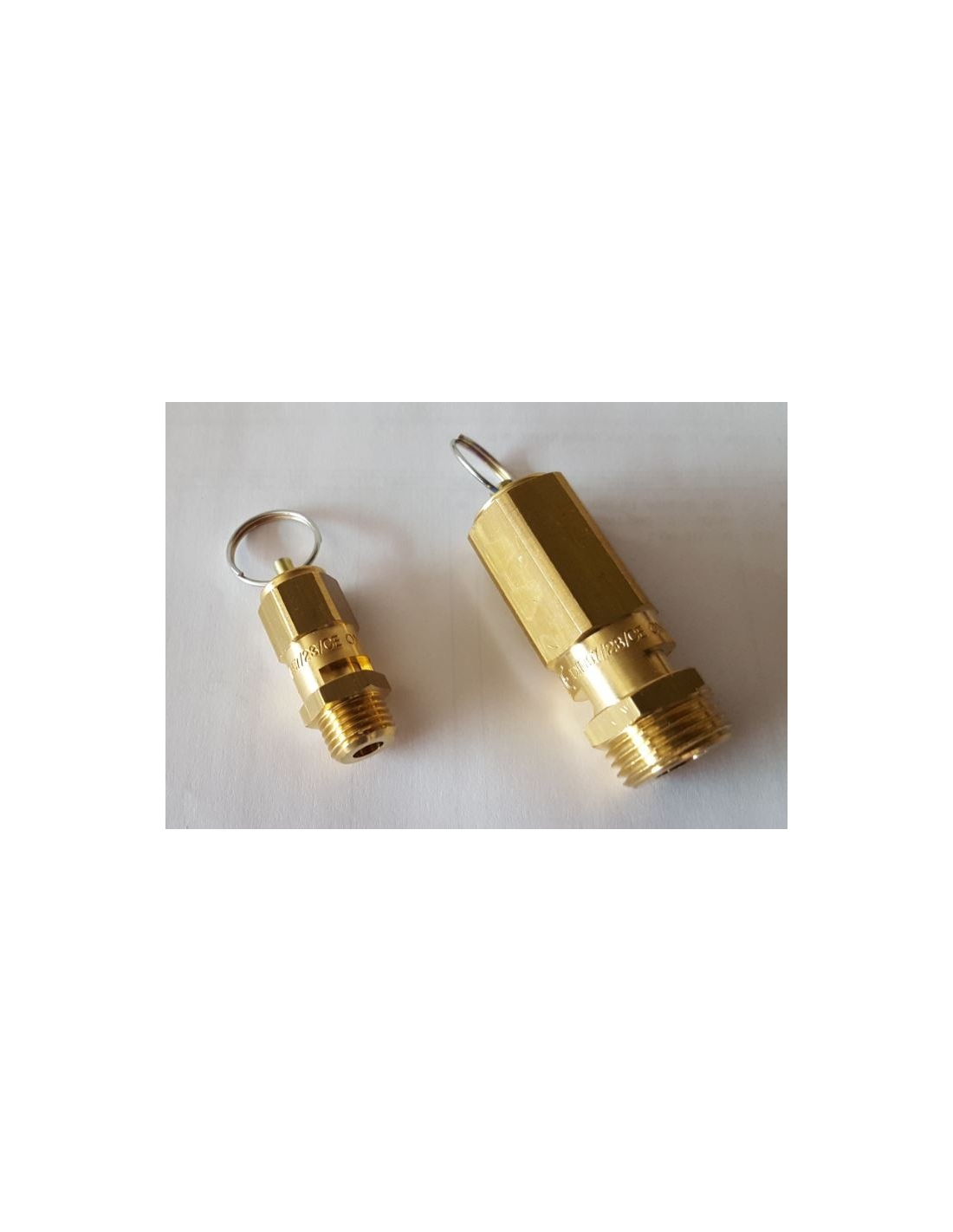

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

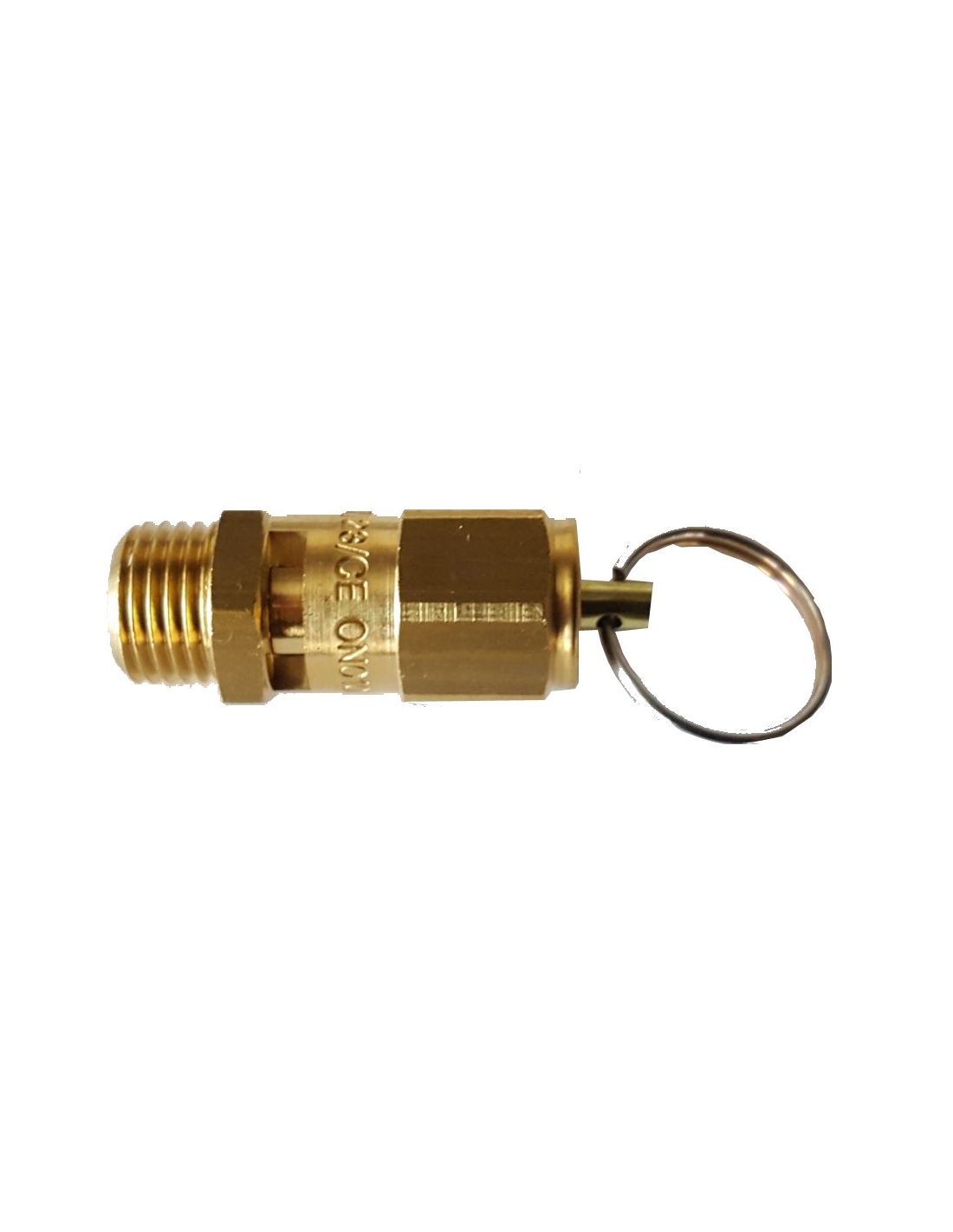

Overpressure valve with 1/8" thread and set to 15 bars. To avoid overpressions in the circuits in which it is installed or on compressors.

The valve is manufactured according to the MIE-AP17 regulations of the precision device regulation, being built by spring, total lift seat and pressed to the indicated working pressure.

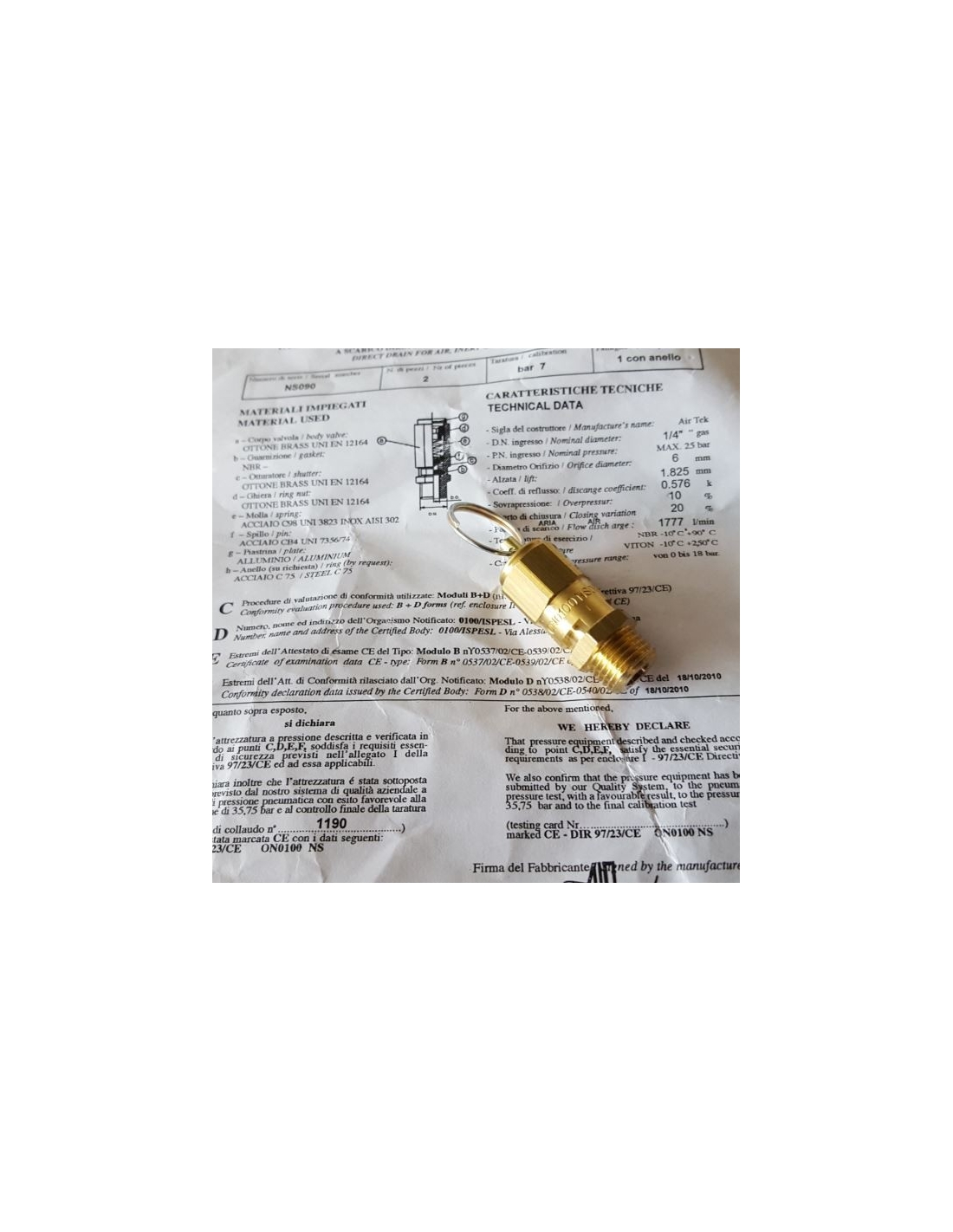

The valve is supplied with its corresponding certificate.

Technical details:

- Reference: VSN1815.
- Connection thread: G 1/8".
- Adjustment pressure: 15 Bars.
- Overpressure: +10% adjustment pressure.
- Maximum pressure: 40 Bars.
- Nominal diameter: 4mm.
- Flow rate: 700 l/min.

Dimensiones válvulas seguridad sobrepresión

Dimension "A":
Dimension "B":
Dimension "C":

For other sizes or adjustment pressures consult.

Material for professional use, install respecting the regulations in force in the place of installation.

Para ampliar la información puede descargar la ficha técnica pulsando sobre la pestaña "Adjuntos"

Material for professional use, install respecting the regulations in force in the place of installation.

Para ampliar la información puede descargar la ficha técnica pulsando sobre la pestaña "Adjuntos"

Overpressure valve

Certificate Overpressure safety valve

Download (196.34KB)

Overpressure Safety Valve Tab

Download (86.17KB)
