Selector 2 positions 1 open contact (NO) Harmony XB4 - SCHNEIDER
Selector 2 positions 1 open contact (NO) Harmony XB4 - SCHNEIDER

Selector 2 positions 1 open contact (NO) Harmony XB4 - SCHNEIDER

€12.59 Tax included

€10.49 tax excl.

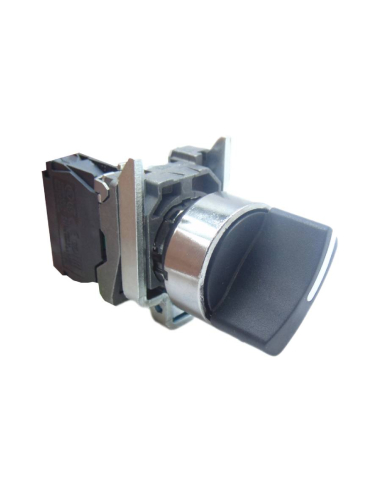

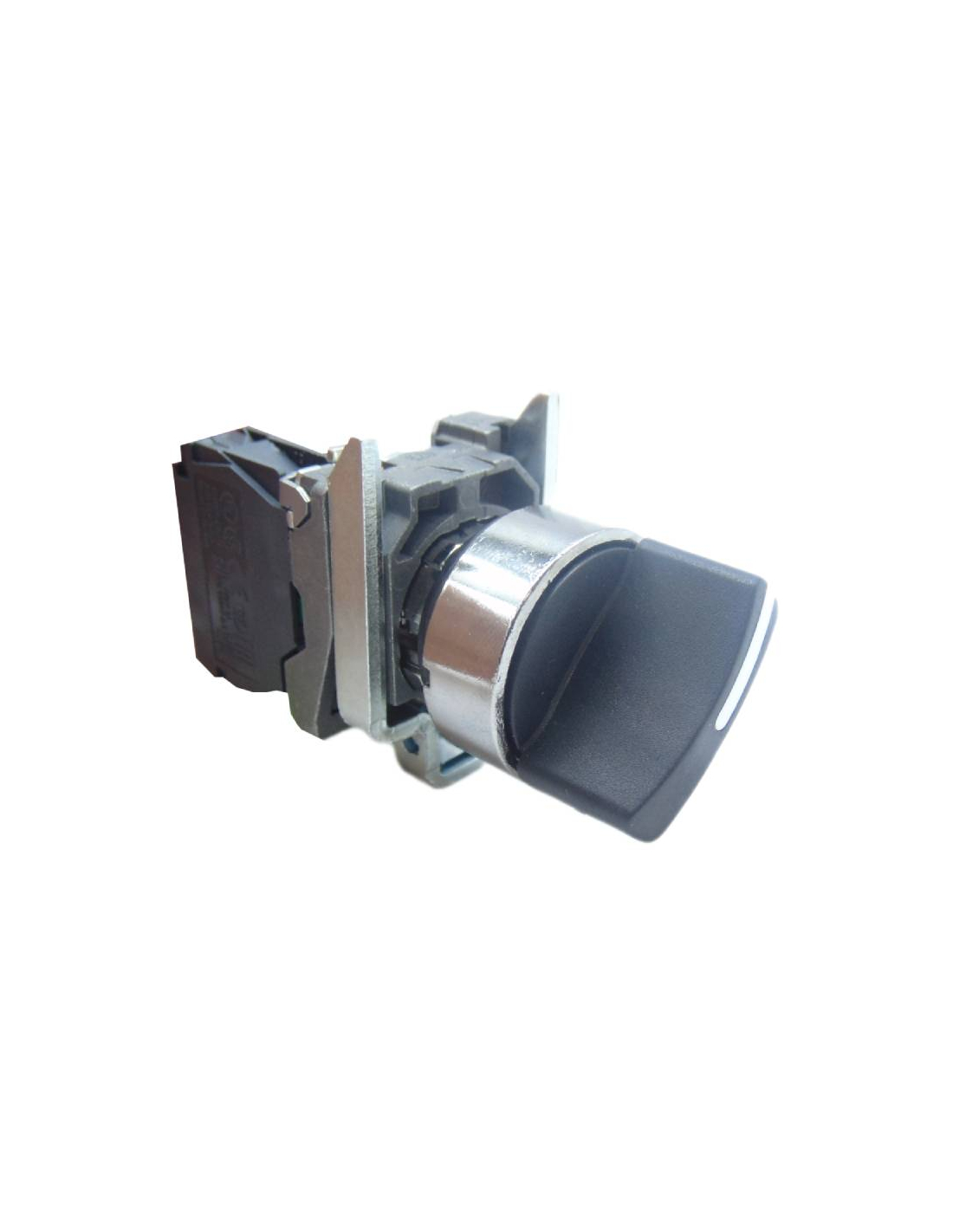

Metal selector with short handle, 2 maintained positions, 1 open contact (NO), metal body and chrome-plated edge.

The supply includes the complete selector with one open contact (1 NO). Mounting diameter 22.5 mm. Cable fixing by screw.


Order No.: XB4BD21




Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Metal selector with short handle, 2 fixed positions and one open contact (NO), mounting diameter 22.5 mm. Operation based on a stay-put mechanism, allows the machine to be efficiently configured in various operating modes.

Complete selector with one open contact is included in the scope of delivery. Additional contacts can be added.



Features:

  • Manufacturer: SCHNEIDER
  • Ref. No.: XB4BD21
  • HARMONY XB4 SERIES
  • Operator profile: Black with standard handle
  • Operator type: 2 fixed 90° positions
  • Contact1 NO
  • Mounting diameter: 22.5mm
  • Short-circuit protection: 10A Cartridge fuse type gG
  • Conventional thermal current: 10A
  • Rated insulation voltage: 600V
  • Surge withstand voltage: 6kV
  • Rated operating current: 3A at 240V, AC-15 / 6A at 120V, AC-15 / 0.1A at 600V, DC-13 / 0.27A at 250V, DC-13 / 0.55A at 125V, DC-13 / 1.2A at 600V, AC-15
  • Bezel material: Silver chrome-plated metal
  • Material of fixing ring: Zamak
  • Contact material: Ag/Ni
  • Electrical durability: 1000000 cycles
  • Mechanical durability: 1000000 cycles
  • Operating temperature: -40...70C
  • IP degree of protection: IP66
  • IK protection degree: IK06

Dimensions (mm/in)




    For further information, you can download the data sheet by clicking on the "Attachments" tab.

    Material for professional use, it must be installed by qualified personnel in compliance with the regulations in force at the place of installation.
