Simple sprockets Z16 with taper T1108 08B-1 ISO 606

€24.71 Tax included

€20.42 tax excl.

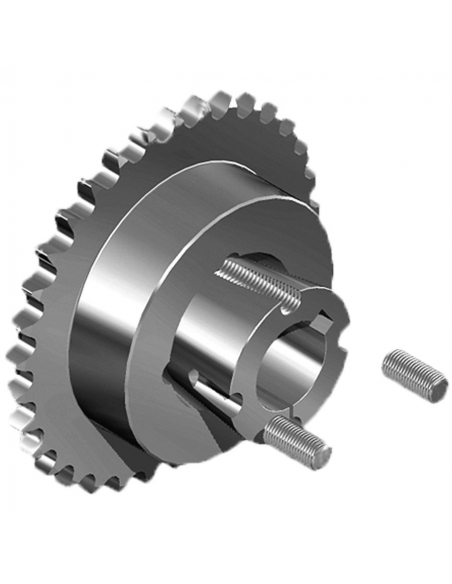

Simple sprockets with cap lock taper 1108 for roller chain 08B-1 according to European standard DIN ISO 606

Teeth: 16

ISO: 08B-1

Taper lock available in various shaft diameter sizes. Select the desired measurement.

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.



Simple sprockets with taper lock of bush 1108 of roller chain 08B-1 according to European standard DIN ISO 606

The bushings are supplied with the hole finished to the selected diameter, standardized chavetero for the selected shaft diameter, prisoners and screws.

Manufacturer: Technox

Taper reference: T.L 1108-0xx
Pinion Reference: Reference: PINHON Z16 1/2-T11088

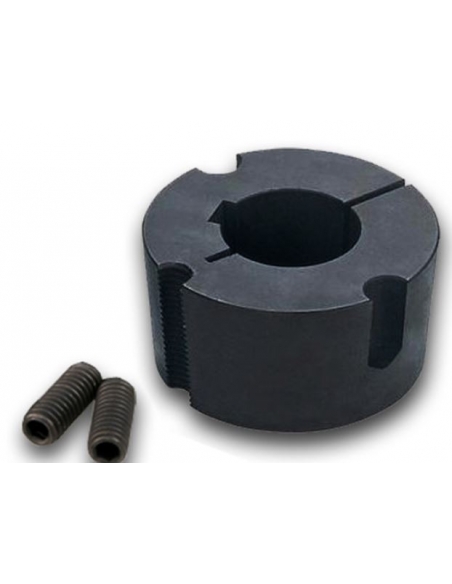

Taper features:

Dimensiones-taper

  • Size: 1108.
  • Available diameters: 10,11,12,14,15,16,17,18,19,20,22,24,25 and 28.
  • Tightening torque: 5.6.
  • D1: 38 mm.
  • Type: A.
  • S: 22.3.

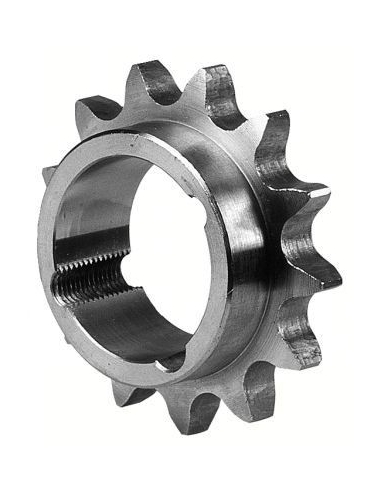

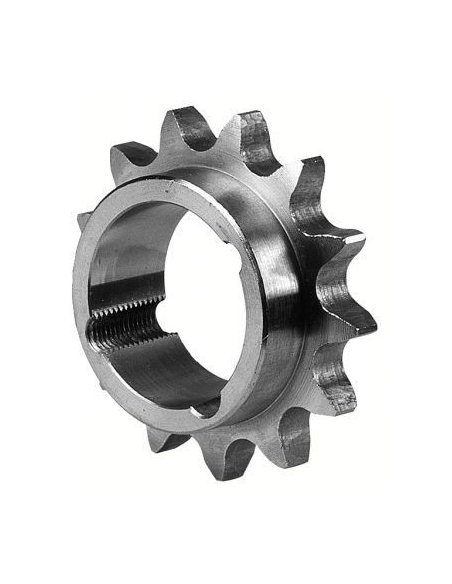

Characteristics pine nut:


  • 1/2" x 5/16" mm ISO 08B-1
  • 12.7 x 7.75 mm
  • Teeth: 16
  • Taper Lock: 1108



Material for professional use, install in compliance with the regulations in force at the place of installation.
