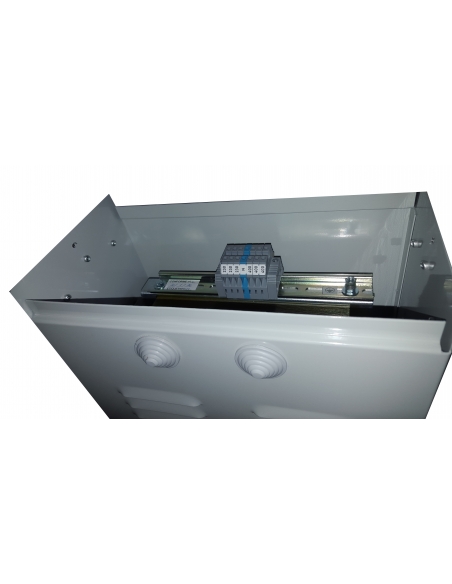

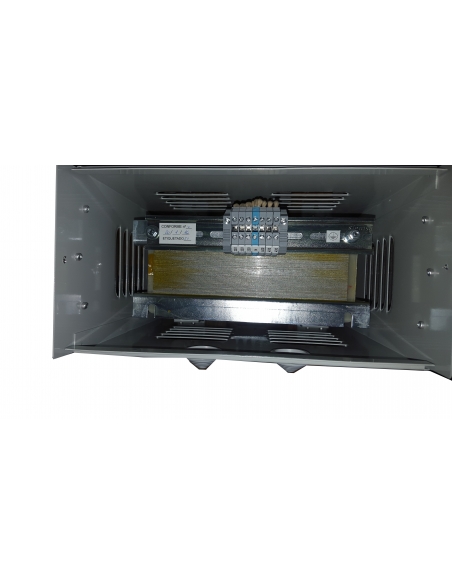

Three-phase 230/400V 40 KVA reversible autotransformer with box

€1,064.83 Tax included

887.36 tax excl.

ATT40

Three-phase 40kVA reversible autotransformer with metal case, allows voltage adaptation from 230Vac three-phase to 400Vac three-phase or 400Vac three-phase to 230Vac three-phase. Also generates neutral.

It allows to adapt the tension in machinery, motors, pumps, etc., in an economical way.

Reference: ATT-40

three-phase autotransformer electrical diagram
Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

2 questions about the product
Privacy
Shipments
Returns


Three-phase, dry-type, reversible autotransformer for voltage change, capable of generating neutral while transforming the voltage value. They are indicated when it is required to adapt the voltage in an economical way, without galvanic separation. Their usual field of application is the adaptation of voltages in machines, pumps, motors, etc. They are supplied in a metal box that provides an IP-23 insulation degree, connection by means of terminals.

Manufactured with low loss magnetic sheet providing high performance.

Technical characteristics:

  • Reference: ATT-40
  • Windings: Thermal class N 200ºC.
  • Transformation ratio 230/400V and neutral. Reversible.
  • Power: 40 KVA.
  • Apparent intensity:
    • 400Vac: 57.8A
    • 230Vac: 100.5A
  • Frequency: 50/60Hz.
  • Connection: Yn0.
  • Test voltage: 3KV between windings and ground.
  • Insulators: Thermal class F 155ºC YH 180ºC.
  • Protection: IP-23 (Metal Box ).
  • Ambient temperature: TA=25ºC.
  • Cooling: ANAN (Natural air).
  • Certificate: UNE-EN 61558, UNE-EN 60076.



Dimensions of three-phase Sevein autotransformers

The transformer is supplied without any type of overload protection; it is mandatory to install this to avoid overloading the transformer.
The power and intensity indicated are apparent, the active intensity provided by the transformer will depend on the power factor of the connected load.
Professional use material, install in compliance with the regulations in force at the installation site.

Questions

Question
Bonjour je voudrais savoir si l autotransformateur correspond au stabilisateur de tension (même chose). Cordialement
Answer
Bonjour.

Un autotransformateur n'est pas la même chose qu'un stabilisateur de tension. L'autotransformateur auquel vous faites référence est capable de supporter une charge de 28 KW et peut fonctionner de 230 Vac triphasé à 400 Vac triphasé ou de 400 Vac triphasé à 230 Vac triphasé.

Le stabilisateur est un appareil qui, à partir d'une tension d'entrée inférieure à la tension de fonctionnement de l'équipement, stabilise une tension de sortie constante, afin que l'équipement ne se détériore pas, il existe des plages de tension d'entrée dans lesquelles l'appareil peut fonctionner, marquées par le fabricant, en dessous ou au-dessus de ces paramètres, le stabilisateur est bloqué.

Cordialement
Aboubakary on 11/22/2022 18:40:34
Question
Buenas tardes, Me gustaría saber que tipo de protecciones me recomienda para un transformador de 40KVA,, Agradezco su respuesta
Answer

Buenos días,

Las protecciónes habituales son mediante magnetotermicos, para la entrada se suelen instalar curva D, en la salida suele ser suficiente con curva C.

Saludos

saul idrogo carrillo on 08/10/2018 20:31:59

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

Single-phase autotransformer 2000VA 230/400Vac IP-00
Special manufacturing material
Single-phase and three-phase autotransformers

Single-phase autotransformer 2000VA 230/400Vac IP-00

Generico-SEV
AT2 2000
€130.01 (€108.34 tax excl.)
Single-phase 2000VAreversible autotransformer, allows voltage adaptation between 230 and 400Vac. It allows to adapt the voltage in small machinery and cabinets for automatisms in an economic way.Reference: AT2 2000 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.
3150VA IP-20 single-phase autotransformer 3150VA IP-20 single-phase autotransformer 2
Special manufacturing material
Single-phase and three-phase autotransformers

Single-phase autotransformer 3150VA 230/400Vac IP-20

Generico-SEV
ATI2 3150
€197.59 (€164.66 tax excl.)
3150VA encapsulatedsingle-phase reversible autotransformer, allows voltage adaptation between 230/400Vac. Degree of protection IP-20. It allows to adapt the voltage in small machinery and household appliances in an economical way.Reference: ATI2 3150 Representative image for illustrative purposes, the item supplied will correspond to the specifications...
Three-phase autotransformer 230/400V 1 KVA reversible with box Three-phase autotransformer 230/400V 1 KVA reversible with box 2
Single-phase and three-phase autotransformers

Three-phase 230/400V 25 KVA reversible autotransformer with box

MANUMAG
ATT25
€664.26 (€553.55 tax excl.)
Three-phase 25kVA reversible autotransformer with metal case, which allows the adaptation of voltage from 230Vac three-phase to 400Vac three-phase or 400Vac three-phase to 230Vac three-phase. It also generates neutral. It allows to adapt the tension in machinery, motors, pumps, etc., in an economical way.Reference: ATT-25 Representative image for...
Special manufacturing material
Single-phase and three-phase autotransformers

Three-phase autotransformer 230/400V 200KVA reversible IP00 XMN Series

MANUMAG
XMN02420620
€3,309.04 (€2,757.53 tax excl.)
Three-phase 230/400Vac reversible voltage autotransformer of 200kVA without box, IP00 protection degree. Allows adaptation of three-phase 230Vac voltages to 400Vac or of three-phase 400Vac voltages to 230Vac. Generates neutral.Designed to raise or lower the mains voltage in order to provide the necessary voltage to adapt the voltage in machinery, motors,...
630VA 230/400Vac IP-00 single-phase autotransformer
Special manufacturing material
Single-phase and three-phase autotransformers

Single-phase autotransformer 630VA 230/400Vac IP-00

Generico-SEV
AT2 630
€62.40 (€52.00 tax excl.)
Single-phase reversible autotransformer of 630VA, allows voltage adaptation between 230 and 400Vac. It allows to adapt the voltage in small machinery and cabinets for automatisms in an economic way.Reference: AT2 630 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.
Three-phase reversible autotransformer with box 250 KVA XMN series | ADAJUSA | price Three-phase reversible autotransformer with box 250 KVA XMN series | ADAJUSA | price 2
Special manufacturing material
Single-phase and three-phase autotransformers

Three-phase 230/400V 250KVA reversible autotransformer with XMN Series box

MANUMAG
XMN02425623
€4,494.48 (€3,745.40 tax excl.)
Three-phase 230/400Vac reversible voltage autotransformer of 250kVA with metal box. Allows adaptation of three-phase 230Vac voltages to 400Vac or of three-phase 400Vac voltages to 230Vac. Generates neutral. Designed to raise or lower the mains voltage in order to provide the necessary voltage to adapt the voltage in machinery, motors, pumps, etc....
Three-phase reversible autotransformer with box 10 KVA XMN series | ADAJUSA | price Three-phase reversible autotransformer with box 10 KVA XMN series | ADAJUSA | price 2
Single-phase and three-phase autotransformers

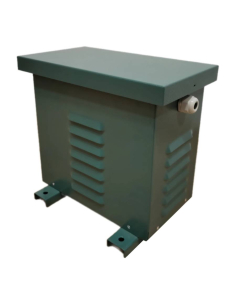

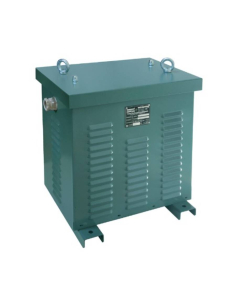

Three-phase 230/400V 10KVA reversible autotransformer with XMN Series box
