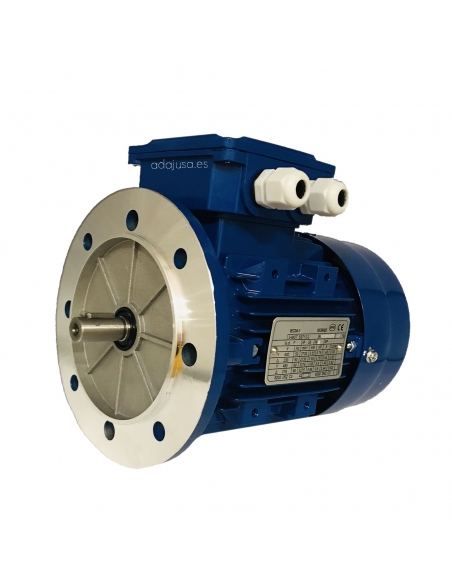

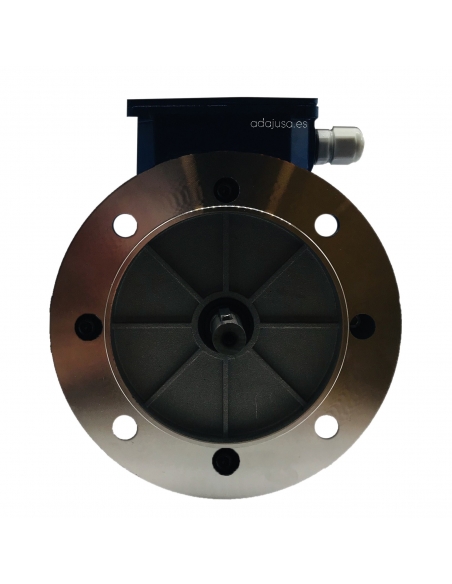

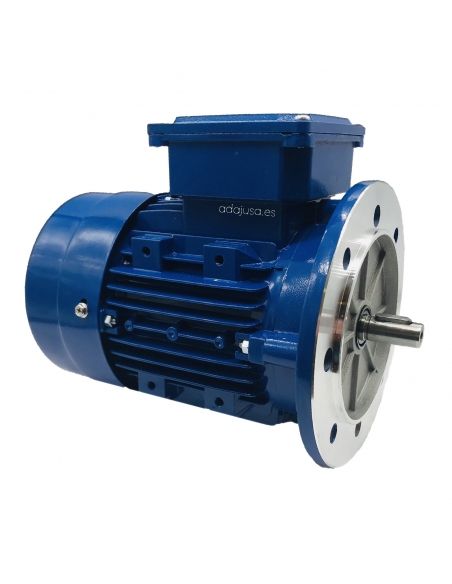

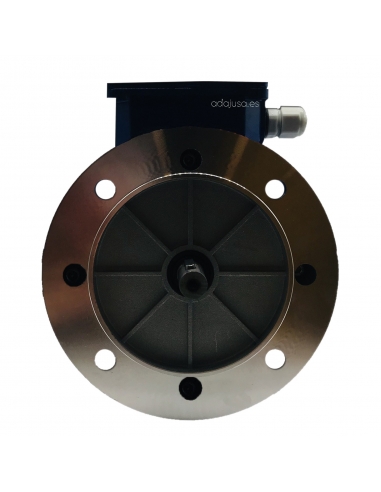

Single-phase electric motor 0.09Kw 0.12HP 230V B5 1500 medium torque start | ADAJUSA | price

Single-phase motor 0.09Kw 0.12HP 230V 1500 rpm half starting torque, B5 flange

€82.49 Tax included

€68.74 tax excl.

SY5624B5

Single-phase electric motor 0.09kW (0.12HP) 230V 1500 rpm B5 flange , medium starting torque, aluminum housing. Manufactured under European IEC regulations.

Reference: SY-56M2-4 B5
Voltage: 230Vac 50Hz.
Power: 0.09Kw – 0.12HP
Type: Half starting torque.
Number of poles: 4.
Revolutions: 1500 rpm .
Flange: B5
Shaft diameter: 9mm.
flange diameter: 120mm.
PAM flange: 120/9
Size: 56M2
Energy efficiency: IE1.

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

1 question about the product

Privacy

Shipments

Returns

Single-phase electric motor of 0.09kw (0.12HP) 230Vac 50Hz, 4 poles (1500 rpm ), type B5 flange and half starting torque.

Standardized single-phase electric motors for general uses, manufactured under European IEC regulations in aluminum with removable legs. Enameled copper windings with class F insulation. The casing is closed and has a seal on the output shaft that gives it a degree of protection IP55. The capacitor is completely housed in the motor terminal box.

By properly positioning the connection plates in the terminal box, the motor can rotate both right and left.

Characteristics:

Manufacturer/Importer: Motorseg
Reference: SY-56M2-4 B5
Motor type: squirrel cage asynchronous.
Voltage: 230 Vac. 50Hz.
Power: 0.09Kw (0.12HP).
Medium starting torque.
Number of poles: 4 (1500 rpm ).
Rated current (In):0.83A
Starting current (Ia): 3
Revolutions: 1370 rpm .
Performance: 51%
Power factor (Cos): 0.92
Maximum torque / Nominal torque (Tmax/Tn): 1.75
Starting torque / Nominal torque (Ts/Tn): 0.45
Permanent capacitor: 6uF/450V
Service: continuous S1
Protection degree: IP55.
Fastening type: B5 flange.
Shaft diameter: Ø9mm
flange diameter: Ø120mm
PAM flange: 120/9.
Case size : 56 (562)
Color blue.
Housing material : Aluminum.
Sound level (dB): 63.
Weight: 3.8 kg.
CE marking.

For more information, other powers or executions, consult.
As with any asynchronous electric motor, the installation of a motor protector is mandatory to avoid damage due to overload.

Dimensions of B5 single-phase motors

For more information you can download the technical sheet by clicking on the "Attachments" tab. Material for professional use, install in compliance with the regulations in force at the installation site.

monophase_motor_circuit_breaker

How to install a circuit breaker (motor circuit-breaker) with motor single-phase

Download (59.36KB)

Connection of single-phase motor

Electrical connection of single-phase motors

Download (487.97KB)

Technical information motors

Technical information on electric motors, dimensions and three-phase and three-phase connections single-phase

Download (1.21MB)

Installation of electric motors

Annex to the technical instructions motors

Download (48.86KB)

ES-Engine Annex

Download (253.95KB)

Annex engines-FR

Download (262.97KB)

EN-Engine Annex

Download (631.69KB)

Annex motors-PT

Download (249.5KB)

IT-motor annex

Download (628.21KB)

Annex motors-DE

Download (638.45KB)

Questions

Question

Hola, hay algun acople para poder poner un eje de 100cm ( me da igual roscado o no)?

Answer

Estimado cliente,

¿Se refiere pasar del eje de 9mm que viene por defecto a eje 10mm?

Sí es así, sí, hay conversores de eje. No los tenemos publicados, pero se lo podemos pedir al fabricante, que nos pase precio y hacerle una oferta en caso de que este interesado en ponerle dicho acople.

Si se refiere al diametro de la brida que tiene 120mm y lo quiere en 100mm no tenemos opción, dado que vienen ya fabricados con esa medida.

Un saludo
ADAJUSA

Juan on 10/18/2022 15:06:32

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

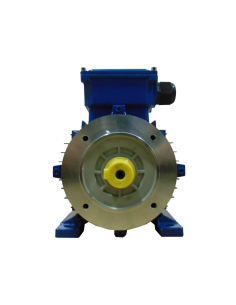

Single-phase electric motor 1,1Kw 1,5CV 230V B34 1500 half starting torque | ADAJUSA | price
