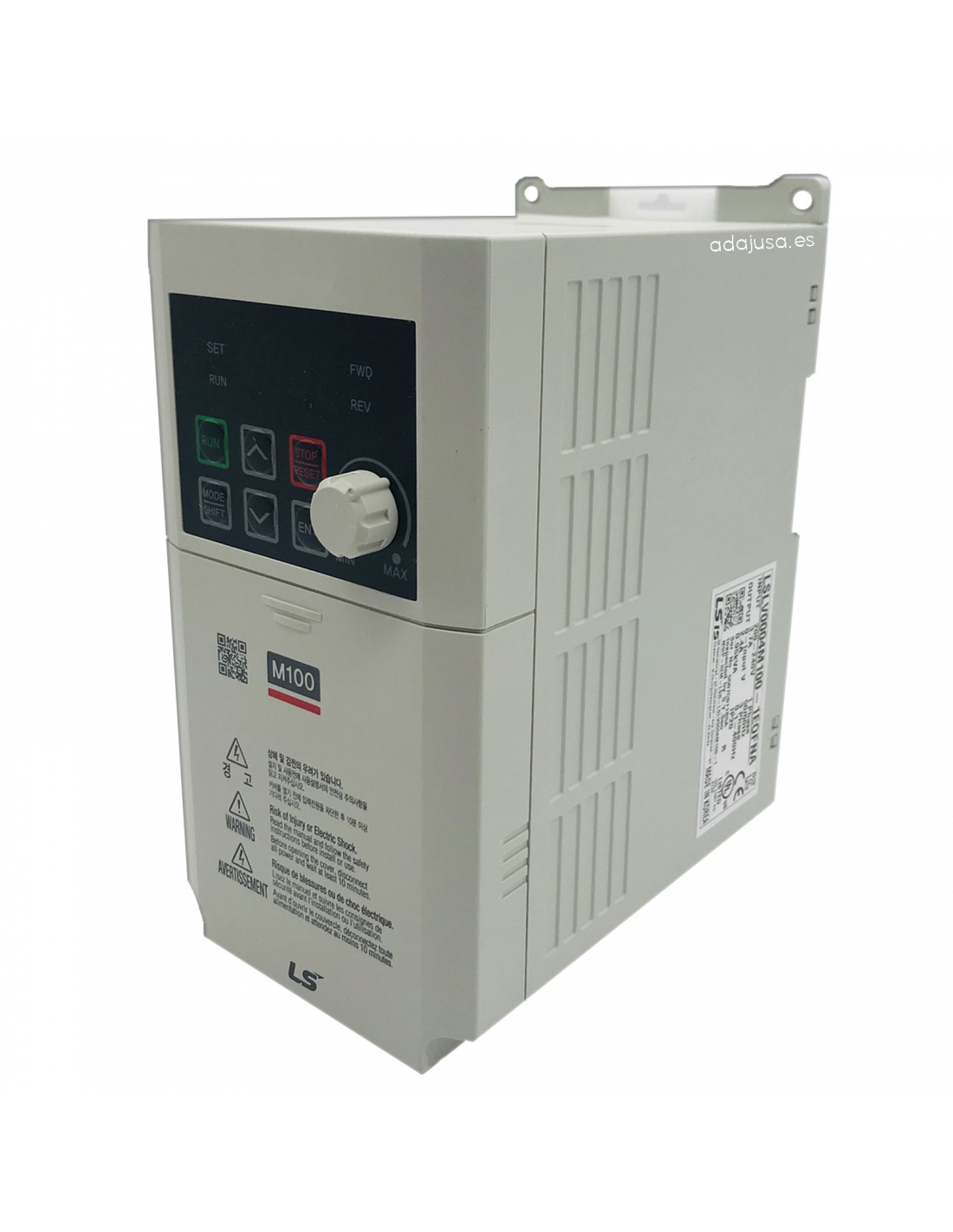

Single Phase Frequency Converter 0.75Kw Series M100 - LS

€244.50 Tax included

€202.07 tax excl.

230V 0.75Kw single-phase frequency converter (1CV), three-phase 230V output, integrated RFI filter and programming panel.

Single-phase frequency converters allow control and speed variation of standard three-phase motors to be kicked from a single-phase supply network.

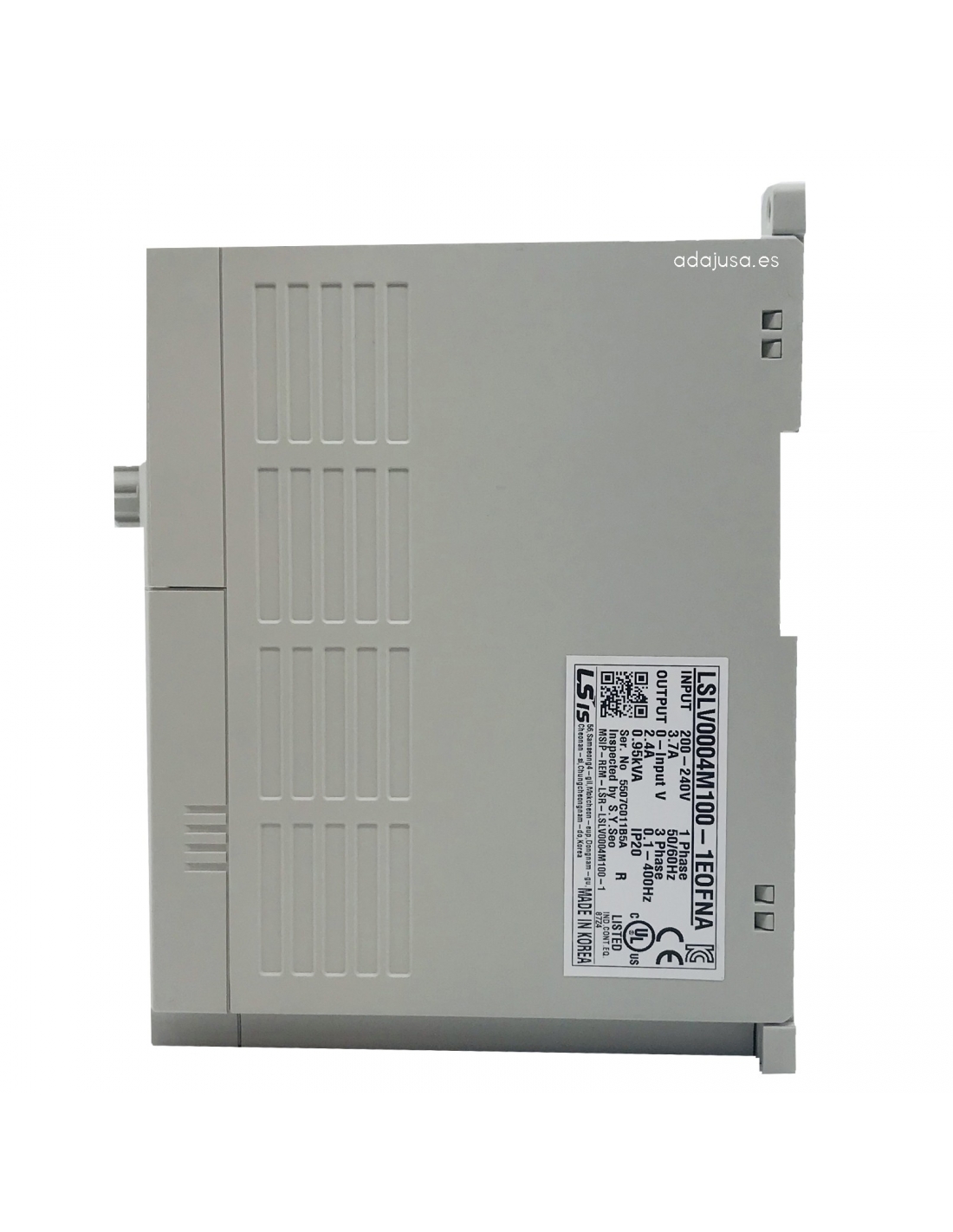

Reference: LSLV0008M100-1EOFNA

Logo-Marca-LS Electric

No queries yet, leave the first!


230Vsingle-phase frequencyconverter, 0.75Kw (1CV), three-phase 230V output, RFI filter and integrated programming panel.

Single-phase frequency converters (frequency inverters) allow control and speed variation of three-phase standard motors to be pinned from a single-phase supply network. They are only valid to be connected to AC motors.

This frequency converter model already has a built-in RFI filter to avoid electromagnetic interference that could occur with other electrical components.

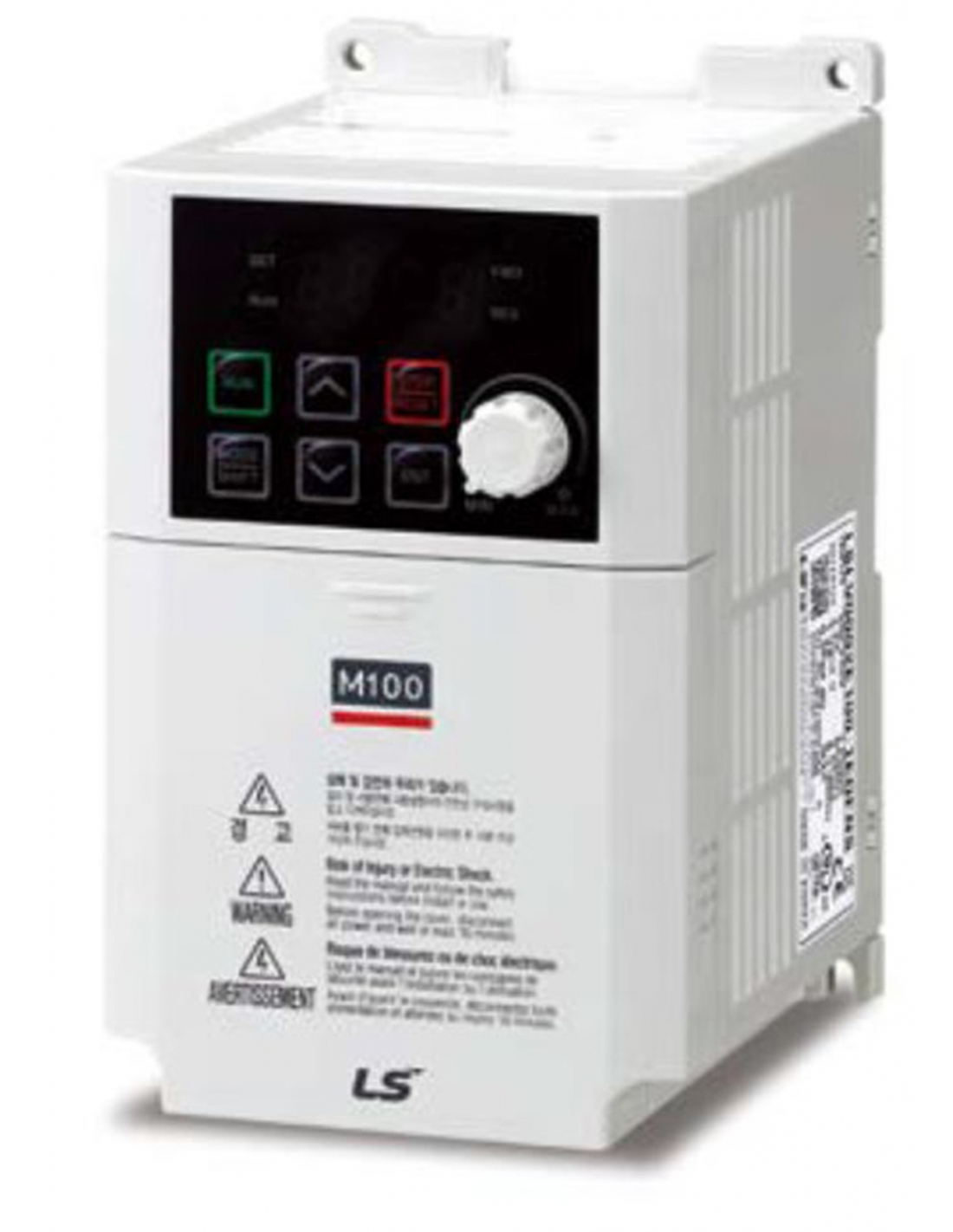

On the front button, it incorporates all the buttons necessary for motor control and a potentiometer for speed regulation. It can also be controlled from pushbuttons and external potentiometer.

The attachment can be made by screws to the mounting plate or by DIN rail.

The LS series of M frequency converters incorporates:

  • Potentiometer.
  • 3 Programmable speeds with input activation.
  • RS485 communication.
  • Built-in RFI filter.
  • Programming panel integrated in the front.
  • Integrated braking unit.

Summary of technical specifications:

  • Manufacturer: LS ( LS).
  • Reference: LSLV0004M100-1EOFNA
  • Nominal voltage/frequency: single phase 180 to 264Vac - 50/60Hz.
  • Max engine power (Kw): 0.75
  • Nominal output three-phase current (A): 4.2
  • Nominal frequency (Hz): 1.0 to 400
  • Nominal input current (A): 7.1
  • RFI Filter: Built-in.
  • Frequency tolerance +/- 5%.
  • Control system: SPWM (Sine modulation by pulse width. frec: 1Khz-15Khz.
  • Torque Features: Including torque compensation and slip compensation, the starting torque can be 150% to 5Hz.
  • Overload capacity: 150% of the rated current for 1 minute.
  • Model V/F: Adjustable V/F model.
  • Lock protection level: Adjustment of 20 to 200% of the rated current.
  • Frequency adjustment: using keys, power or external signals.
  • Start/stop signal: using external keys or signals.
  • Multifunction input signal.
  • Multifunction output indicator.
  • Potentiometer: integrated.
  • Integrated braking unit (1.5-2.2Kw).
  • Selectable input signal PNP/NPN.
  • Torque Reinforcement (Boost): Manual/Automatic.
  • Process control: Advanced PID.
  • Automatic reset after power failure.
  • DC injection braking.
  • Inputs/outputs: 5 programmable.
  • Analog input: 0..10Vdc/4-20mA.
  • Protection level: IP20
  • History of failures.
  • Pc monitoring and parameterization.
  • Protection: Self-diagnosis, overvoltage, overcurrent, low voltage, overload, overheating, external failure, electronic thermal current.
  • Cooling: forced ventilation.
  • Dimensions: Height 163mm x Width 85mm x Depth 123mm

To download the full features, quick or manual guide click on the "DOWNLOAD" tab.

Other powers or specifications consult.
