Single-phase motor 0.55Kw 0.75HP 230V 1000 rpm...
Single-phase motor 0.55Kw 0.75HP 230V 1000 rpm high starting torque, Flange B3 foot

Single-phase motor 0.55Kw 0.75HP 230V 1000 rpm high starting torque, Flange B3 foot

€197.17 Tax included

€164.31 tax excl.

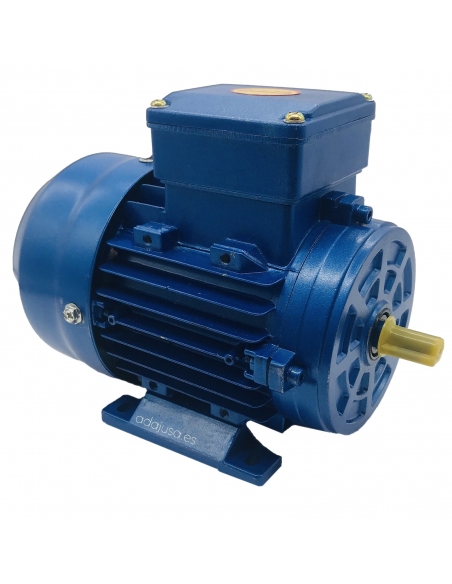

Single-phase electric motor 0.55kW (0.75hp) 230Vac, 50Hz, 1000 rpm Flange B3 foot, high starting torque with centrifugal breaker, aluminum housing. Manufactured under European IEC regulations.

  • Voltage: 230Vac 50Hz.
  • Type: High boot torque.
  • Number of poles: 6.
  • Revs: 1000 rpm.
  • Flange: B3 foot.
  • Shaft diameter: 19mm.
  • Power: 0.55Kw - 0.75HP.
  • Size: 806B.
  • Energy efficiency: IE1.

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Electric motor single-phase 0.55kW (0.75hp) 230Vac 1000 rpm Flange B3 (foot), high starting torque. Made of cast aluminum, removable foot .

Characteristics:

  • Manufacturer/Importer: Alren
  • Reference: ALHL806B6B3
  • Motor type: asynchronous squirrel cage.
  • Efficiency: IE1.
  • Voltage: 230 Vac. 50Hz.
  • Number of poles: 6
  • High starting torque.
  • Power: 0.55 Kw (0.75HP).
  • Continuous service: S1.
  • Degree of protection: IP55.
  • Clamping type: Flange B3 foot.
  • Shaft diameter: Ø19mm.
  • Housing size 80 (806B).
  • Color: Blue.
  • Housing material: Aluminum.
  • CE marking.
Dimensiones motores monofasicos B3

For more information, other powers or executions consult.
As in any asynchronous electric motor, the installation of a motor circuit breaker is mandatory to avoid overload damage.

For further information you can download the technical sheet by clicking on the "Attached Files" tab.

Material for professional use, install in compliance with the regulations in force at the installation site.
