Single-phase motor 1.1Kw 1.5HP 230V 1000 rpm...
Single-phase motor 1.1Kw 1.5HP 230V 1000 rpm high starting torque, Flange B3 foot

Single-phase motor 1.1Kw 1.5HP 230V 1000 rpm high starting torque, Flange B3 foot

€294.16 Tax included

€243.11 tax excl.

Single-phase electric motor 1.1kW (1.5HP) 230Vac 6 poles (1000 rpm) Flange B3 foot, high starting torque with centrifugal circuit breaker, aluminum housing. Manufactured under European IEC regulations.

  • Voltage: 230Vac 50Hz.
  • Power: 1.1Kw - 1.5hp.
  • Type: High boot torque.
  • Number of poles: 6.
  • Revs: 1000 rpm.
  • Flange: B3 foot.
  • Shaft diameter: 24mm.
  • Size: 90L6.
  • Energy efficiency: IE1.

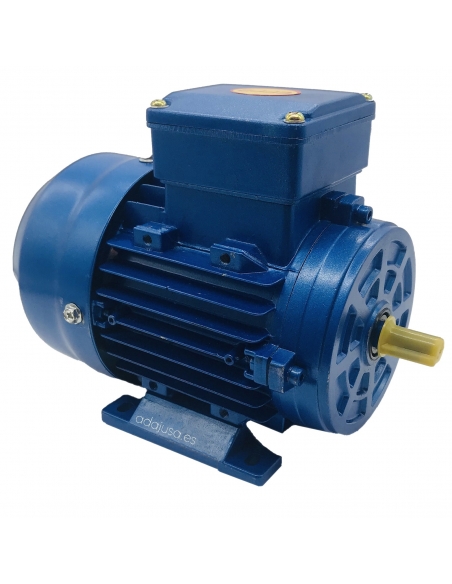

Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

No queries yet, leave the first!


Electric motor single-phase 1.1kW (1.5hp) 230Vac 50Hz, 6 poles (1000 rpm) Flange B3 (foot), high starting torque with centrifugal circuit breaker. detachable foot .

Standard single-phase electric motors for general purposes, manufactured under European IEC standard in aluminum with removable foot . Windings in enameled copper with class F insulation. The execution of the housing is closed, it has a retainer on the output shaft that gives it a degree of protection IP55. The condenser is fully housed in the terminal box of the engine.

By means of the proper position of the connection plates, in the terminal box, the motor can rotate both right and left.

The starting system by centrifugal circuit breaker and auxiliary starter capacitor allows for a reinforced starting torque; the system is fully automatic.

Characteristics:

  • Manufacturer/Importer: Garcia
  • Reference: ALHL90L66B3
  • Motor type: asynchronous squirrel cage.
  • Efficiency: IE1.
  • Voltage: 230 Vac. 50Hz.
  • Power: 1.1 Kw (1.5HP).
  • High starting torque.
  • Number of poles: 6 (1000 rpm).
  • Continuous service: S1.
  • Degree of protection: IP55.
  • Clamping type: Flange B3 foot.
  • Shaft diameter: Ø24mm
  • Housing size 90 (90L6).
  • Color: Blue.
  • Housing material: Aluminum.
  • CE marking.

Dimensiones motores monofasicos B3

For more information, other powers or executions consult.
As in any asynchronous electric motor, the installation of a motor circuit breaker is mandatory to avoid overload damage.
