Single-phase motor 0.37Kw 0.5HP 230V 1500 rpm high starting torque, B14 flange

€126.79 Tax included

€105.66 tax excl.

SL7124B14

Single-phase electric motor 0.37kW (0.5HP) 230V 1500 rpm B14 flange ( PAM 105/14), high starting torque, aluminum housing. Manufactured under European IEC regulations.

  • Reference: SL-71M2-4 B14
  • Voltage: 230Vac 50Hz.
  • Power: 0.37Kw – 0.5HP
  • Type: High starting torque.
  • Number of poles: 4.
  • Revolutions: 1500 rpm .
  • Flange: B14
  • Shaft diameter: 14mm.
  • flange diameter: 105mm.
  • Size: 71(71M2)
  • Energy efficiency: IE1.

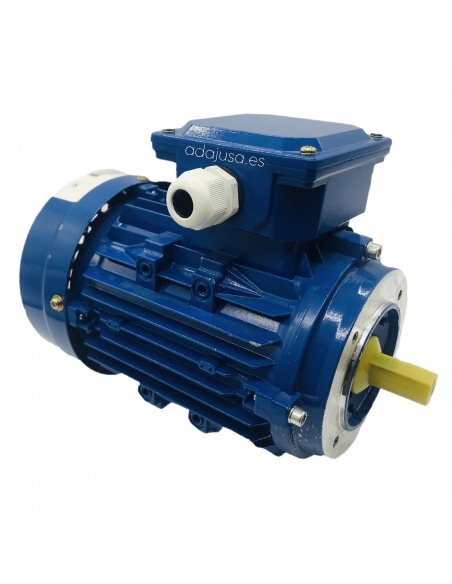

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

1 question about the product
Privacy
Shipments
Returns


Single-phase electric motor of 0.37kw (0.5HP) 230Vac 50Hz, 4 poles (1500 rpm ), type B14 Ø105mm flange ( PAM 105/14), high starting torque with centrifugal circuit breaker.

Standardized single-phase electric motors for general uses, manufactured under European IEC regulations in aluminum with removable legs. Enameled copper windings with class F insulation. The casing is closed and has a seal on the output shaft that gives it a degree of protection IP55. The capacitor is completely housed in the motor terminal box.

By properly positioning the connection plates in the terminal box, the motor can rotate both right and left.

The starting system using a centrifugal circuit breaker and auxiliary starting capacitor allows for a reinforced starting torque; The system is fully automatic.

Characteristics:

  • Manufacturer/Importer: Motorseg
  • Reference: SL-71M2-4 B14
  • Motor type: squirrel cage asynchronous.
  • Voltage: 230 Vac. 50Hz.
  • Power: 0.37Kw (0.5HP).
  • High starting torque.
  • Number of poles: 4 (1500 rpm ).
  • Nominal current (In): 2.8A
  • Starting current (Ia): 15
  • Revolutions: 1380 rpm .
  • Yield: 62.5%
  • Power factor (Cos): 0.92
  • Maximum torque / Nominal torque (Tmax/Tn): 1.7
  • Starting torque / Nominal torque (Ts/Tn): 2.2
  • Permanent capacitor: 16uF/450V
  • Ctarter capacitor : 75uF/250V
  • Service: permanent S1
  • Protection degree: IP55.
  • Fastening type: B14 flange
  • Shaft diameter: Ø14mm
  • flange diameter: 105mm
  • PAM : 105/14
  • Case size : 71(712)
  • Color blue.
  • Housing material : Aluminum.
  • Sound level (dB): 68.
  • Weight: 4.9 kg.
  • CE marking.
For more information, other powers or executions, consult.
As with any asynchronous electric motor, the installation of a motor protector is mandatory to avoid damage due to overload.

B14 single-phase motor dimensions

For more information you can download the technical sheet by clicking on the "Attachments" tab. Material for professional use, install in compliance with the regulations in force at the installation site.
