Single-phase motor 0.75Kw 1HP 230V 1500 rpm high starting torque, Flange B14

€176.56 Tax included

147.13 tax excl.

SL8024B14

Single-phase electric motor 0.75kW (1HP) 230V 1500 rpm Flange B14 (PAM 120/19), high starting torque, aluminum housing. Manufactured under European IEC regulations.

  • Voltage: 230Vac 50Hz.
  • Reference: SL-80M2-4 B14
  • Power: 0.75Kw - 1HP
  • Type: High boot torque.
  • Number of poles: 4.
  • Revs: 1500 rpm.
  • Flange: B14
  • Shaft diameter: 19mm.
  • Flange diameter: 120mm.
  • Size: 80(80M2)
  • Energy efficiency: IE1.

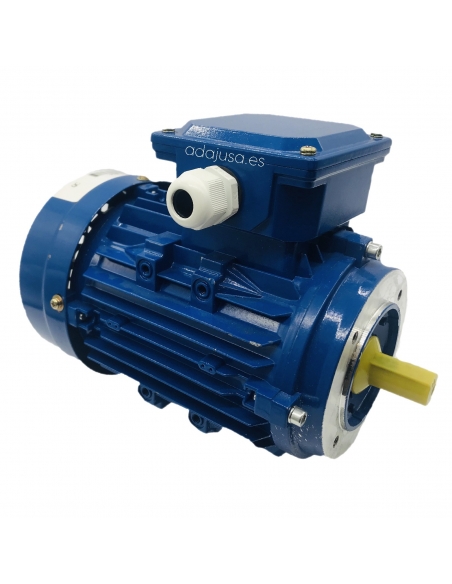

Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

1 question about the product
Privacy
Shipments
Returns


Single-phase electric motor, 0.75kw (1HP) 230Vac 50Hz  4 poles (1500 rpm), flange type B14 x 120mm (PAM 120/19), high starting torque with centrifugal circuit breaker.

Standard single-phase electric motors for general uses, manufactured under European IEC standards in aluminium with detachable foot. Coiled in enamelled copper with class F insulation. The execution of the housing is closed, it has retainer on the output shaft that gives it a degree of protection IP55. The condenser is fully housed in the motor terminal box.

By properly positioning the connecting plates in the terminal box, the motor can rotate both right and left.

The start-up system with centrifugal circuit breaker and auxiliary starter capacitor allows for a reinforced starting torque; the system is fully automatic.

characteristics:

  • Manufacturer/Importer: Motorseg
  • Reference: SL-80M2-4 B14
  • Engine type: asynchronous squirrel cage.
  • Voltage: 230 Vac. 50Hz.
  • Power: 0.75Kw (1hp).
  • High start torque.
  • Number of poles: 4 (1500 rpm).
  • Nominal intensity (In): 4.75A
  • Starting intensity (Ia): 30
  • Revs: 1410 rpm.
  • Yield: 73%
  • Power factor (Cos): 0.94
  • Maximum Torque / Nominal Torque (Tmax/Tn): 1.8
  • Starting torque / Nominal torque (Ts/Tn): 2.3
  • Permanent capacitor: 25uF/450V
  • Starter capacitor: 150uF/250V
  • Service: permanent S1
  • Degree of protection: IP55.
  • Clamping type: Flange B14
  • Flange diameter: 120mm
  • PAM: 120/19
  • Shaft Diameter: 19mm
  • Enclosure Size: 80(802)
  • Color: Blue.
  • Housing material: Aluminum.
  • Sound level (dB): 71.
  • Weight: 10.8 Kg.
  • CE marking.
For more information, other powers or executions consult.
As with any asynchronous electric motor, the installation of a motor guard is mandatory to avoid overload damage.

dimensiones motores monofasicos B14

To expand the information you can download the data sheet by clicking on the "Attachments" tab. Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Question
tenemos que sustituir un motor trifásico de una prensa por otro monofásico, el que lleva es un ASEA 0.75 K:W, 1 H.P., 1.370r/min. 380V.como sabemos si es alto par de arranque o no. La brida viene con cada motor o se utiliza la que lleva?, Las medidas de largo de los ejes, chavetero y agujeros de bridas son universales?. gracias. 633113210.
Answer

Buenos días,

Para sustituir un motor trifásico por otro monofásico, hay que tener en cuenta que el rendimiento de los motores monorásicos es aproximadamente un 70-75% del rendimiento en motor trifásico, es decir, que aunque los dos sean de 0,75kW, el motor monofásico tendrá menos fuerza en el eje del motor.

Con relación al alto par, habitualmente los motores de este tipo tienen 2 condensadores en la caja de bornas.

Cada motor se suministra con el tipo de brida que usted pida (B3 patas, B5 o B14), los motores que nosotros suministramos son normalizados según IEC (Europa). Le envío adjunto con las dimensiones de los motores, usted tiene que mirar el tamaño de carcasa 80 que es el normalizado para este tamaño de motor.

Tambien tendrá que ajustar el rango de regulación de todas las protecciónes térmicas para el motor, un motor monofásico, como solo dispone de una fase, circula mas intensidad que en las fases de un motor trifásico.

Saludos

n.pereira castro on 06/17/2018 08:27:16
