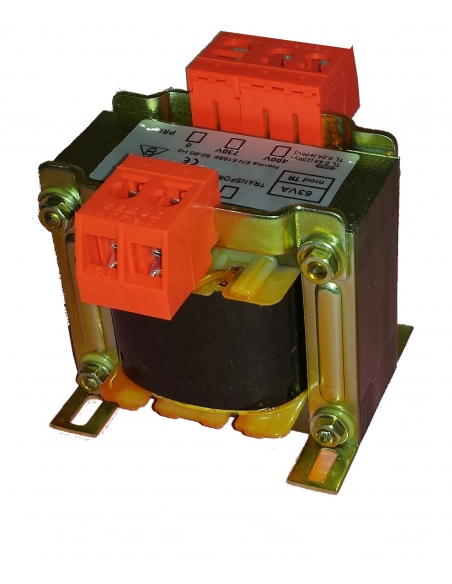

Transformer 63VA IP00 special voltages
Transformer 63VA IP00 special voltages

Transformer 63VA IP00 voltages according to requirements

Special manufacturing material, shipping 2-5 days
€42.69 Tax included

€35.28 tax excl.

Single-phase transformer for command, control and general uses. The transformer power is 63VA and with IP00 protection degree. The voltage of the primary and secondary can be requested by the customer.

The voltages at which the transformers can be manufactured are, for the primary between 100 and 500Vac, and for the secondary between 10 and 500Vac.

Esquema transformador monofasico generico

Select the input voltage (primary) and output voltage (secondary) in the right side menu.

Reference: TR2-63-Special

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Single-phase transformer for command, control and general uses. The transformer power is 63VA. Varnished transformer, with IP00 degree of protection. The voltage of the primary and secondary can be requested by the customer.

This type of transformers are totally reversible.

The voltages that can be requested are:

  • Primary or winding 1: between 100 and 500Vac.
  • Secondary or winding 2: between 10 and 500Vac.

Note: This transformer does not have intermediate taps for various voltages.

Technical characteristics of the transformer:


  • Reference: TR2-63-Special
  • Transformer primary voltage: on customer's request
  • Transformer secondary voltage: on customer's request
  • Transformer rated power: 63 VA.
  • Windings: copper wire, thermal class N 200ºC.
  • Insulation: Thermal class B 130ºC.
  • Frequency: 50/60 Hz.
  • Protection: IP-00.
  • Transformer test voltage
    • 5 KV between windings.
    • 2.5 KV between windings and ground.
  • Ambient temperature: Ta= 25ºC.
  • Transformer encapsulation: varnished.
  • Transformer mounting: by means of screws.
  • Certificate: UNE-EN61558

Dim_trafo_monofasico_ip00

  • A: 75mm
  • B: 81mm
  • C: 78 mm
  • D: 49 mm
  • E: 63 mm
  • diameter: 4 mm
  • Weight: 1.2 Kg.
The transformer is supplied without any type of overload protection, it is mandatory to install them in order to avoid overloading the transformer.
The power and current indicated are apparent, the active current provided by the transformer will depend on the power factor of the connected load.
Equipment for professional use, install in compliance with the regulations in force at the place of installation.

Attention: Specially manufactured material, once production has started, the order cannot be modified or cancelled. We do not accept orders paid by cash on delivery or PayPal that include this material.
