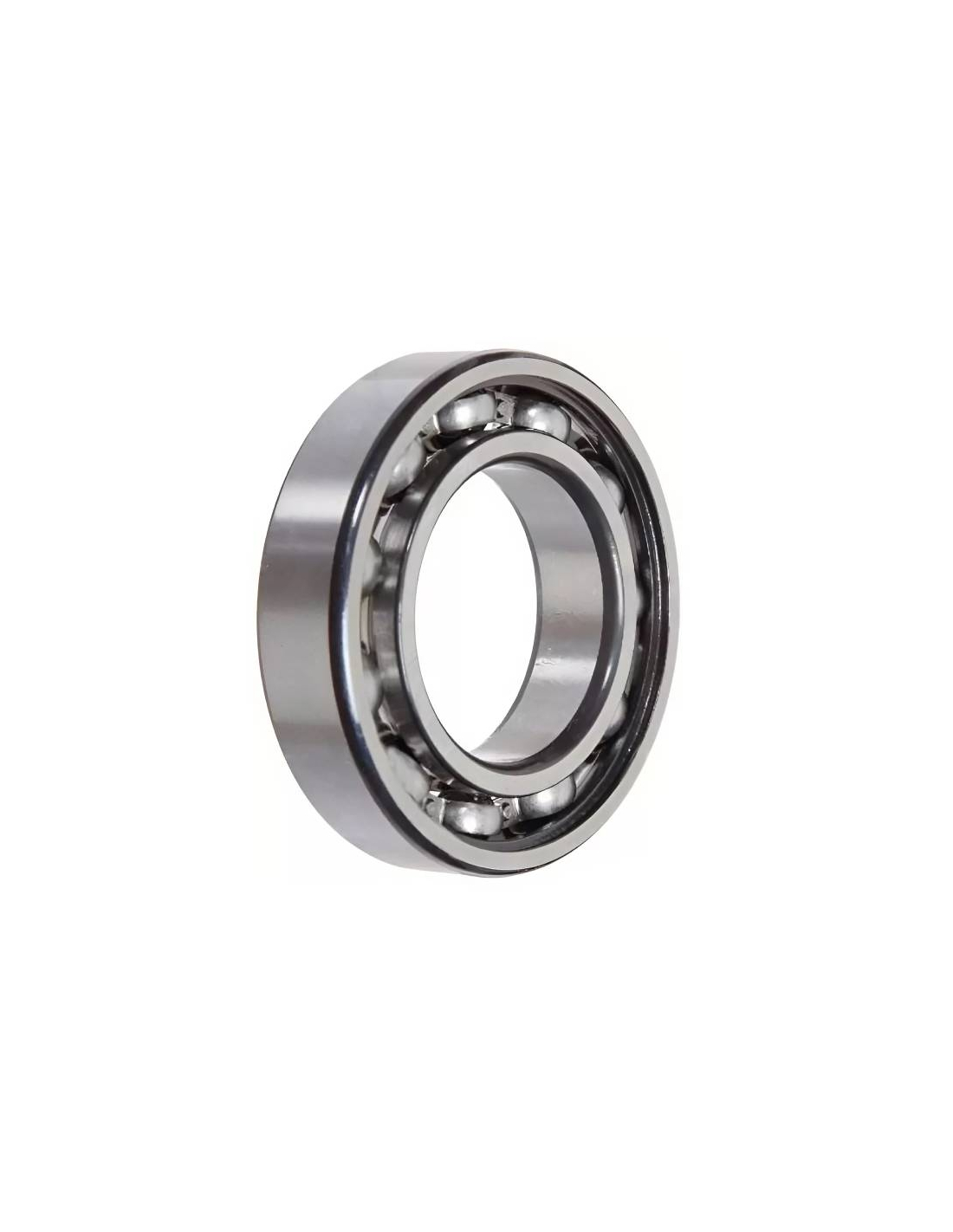

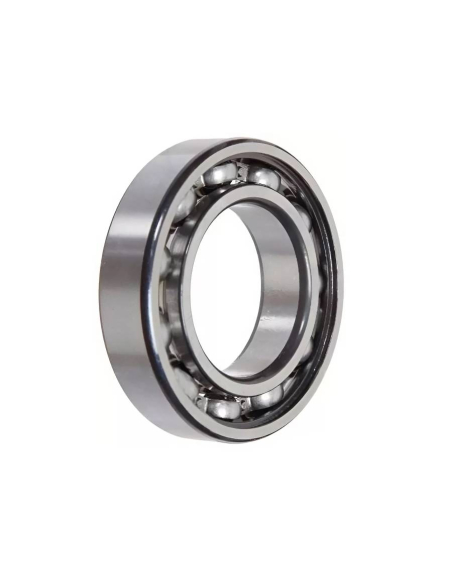

Bearing 7207 35x72x17mm ISB

€11.23 Tax included

€9.28 tax excl.

Ball bearing 7207 single row angular contact, dimensions 35x72x17mm. Angular contact row bearing, made of steel and ball cage in polyamide.

Ref: 7207

Marca ISB

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!


Angular contact ball bearing, one row, 7207 series according to DIN 628-1, without any kind of opturing (open). Cage made of reinforced PA66 polyamide.

One-row angular contact ball bearings withstand high radial loads and axial forces in one direction, the contact angle of this series is 40o. The usual mounting of this type of bearings in combination with another bearing.

This type of bearings are suitable for operating temperatures from -30oC to +110oC.

Dimensions: .35x.72x17.

For other references or measures consult.

DibujoRodamientoAngularISB

Features:

  • Manufacturer ISB.
  • Reference: 7207 B.
  • Material: Tempered steel.
  • Cage: In polyamide
  • Dimension d: 35mm.
  • Dimension D: 72mm.
  • Dimension B: 17mm.
  • Shutter: No, bearing open on both sides.
  • Dynamo load capacity Cr (KN): 30.09.
  • Static load capacity C₀r (KN): 20.38.
  • Contact Angle: ἀ-40o
  • Limit speed ng (min⁻1): 8415.
  • Weight: 0.3Kg.

Material for professional use, install in compliance with the regulations in force at the installation site.
