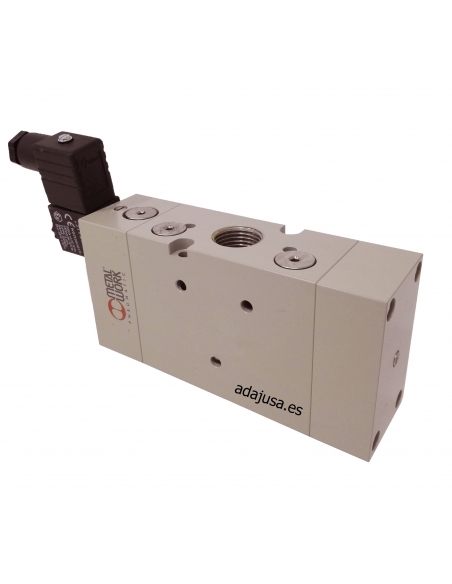

Solenoid valve 1/2 3-way monostable assisted 24Vac 5VA - Metal Work

€160.03 Tax included

€133.36 tax excl.

1/2 3-way monostable assisted, closed (NC) solenoid valve for industrial and general use applications.

Coil for solenoid valve size 22mm, voltage 24Vac., with a consumption of 5VA, for cores of 8mm. Connector 22 mm



Logo-Metal-Work

Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns


1/2 3-way monostable assisted pneumatic solenoid valve with 24Vac 5VA coil. For general and industrial applications. This solenoid valve needs an external pneumatic pressure socket for pilot operation, allowing you to work even in vacuum applications.

The supply of the solenoid valve includes:

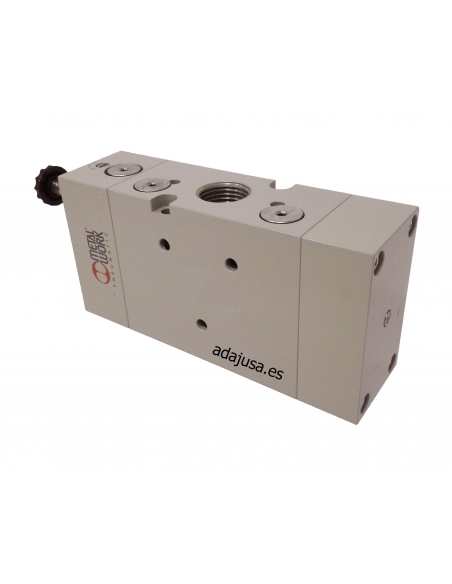

  • Solenoid valve 1/2-3/2 assisted monostable. Ref. Metal Work: SOV 43 SES NC Code: 7030020500

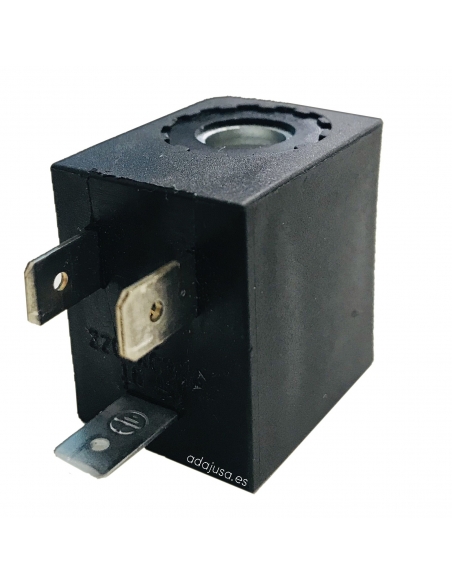

  • 1 Coils 24Vac 5VA.

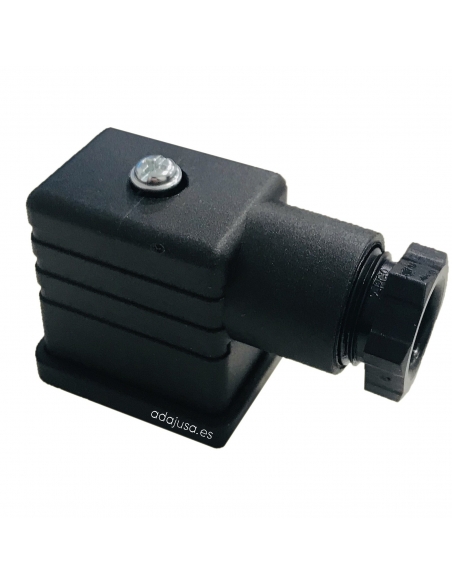

  • 1 Connector. Ref. Metal Work: W0970510011

specifications:

  • Manufacturer of the solenoid valve: Metal Work.
  • Coil voltage: 24Vac.
  • Coil power: 5VA.
  • Working pressure of the solenoid valve: vacuum at 10 bar.
  • Minimum working pressure: 2.5 bar.
  • Working temperature: -10oC to 60oC.
  • Nominal diameter: 15mm.
  • Flow rate at 6 bars p 1 bar: 4600 Nl/min.
  • Manual drive: Yes.

electrovalvula 1/2-3/2 asistida

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"
