Solenoid valve 1/2 5 ways 3 positions closed centers 24Vdc - Mindman S.460

Delivery in 3 days
€100.50 Tax included

€83.06 tax excl.

Pneumatic solenoid valve of 1/2" 5 ways 3 positions, closed centers, metal body, with coils at 24Vdc. For double effect cylinder control.

Reference: 281MVSC4604E2C2

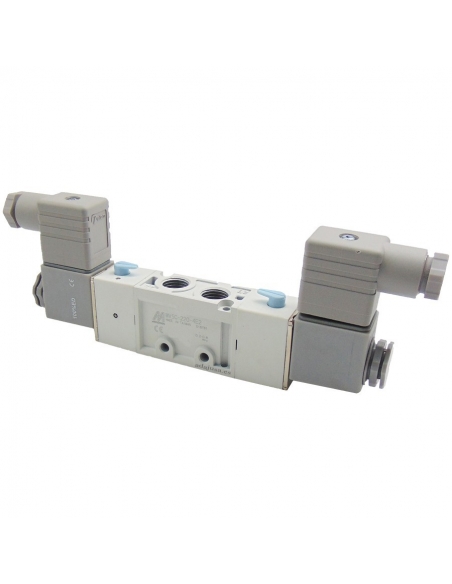

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Solenoid valves of 1/2 " of 5 ways and 3 positions, closed centers, metal body, for pneumatic applications of industrial or general use, the most common application is of control of cylinders of double effect.

The solenoid valve has 3 positions with 2 coils, if a coil is fed the cylinder advances, if both coils are left without tension, the cylinder stops but the air is kept in the circuit, with which the cylinder maintains the pressure (force) and if the other coil is fed, the cylinder is collected.

The supply of the solenoid valve includes:

  • Solenoid valve 1/2-5/3.
  • 2 Coil 24Vdc
  • 2 x 22mm connector

Specifications:

  • Solenoid valve manufacturer: Mindman.
  • Reference: MVSC-460-4E2C 1/2 24Vcc
  • Positions: 3
  • Coil voltage: 24Vdc.
  • Coil power: 4VA
  • Fluid type: Pressurized air, with or without lubrication.
  • Solenoid valve working pressure: 0.3 to 0.8 MPa.
  • Test pressure: 1 MPa
  • maximum pressure: 10 bar.
  • Working temperature: -5ºC to 50ºC.
  • Effective surface: 30mm².
  • Weight: 550 g.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
