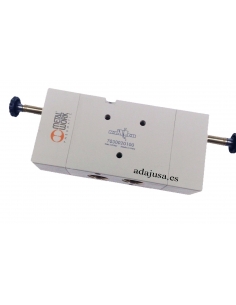

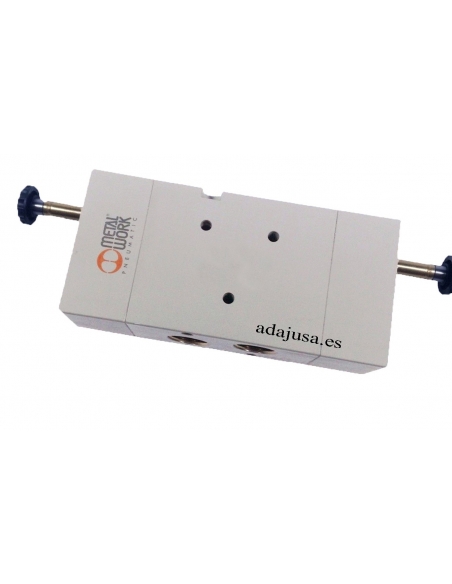

Electrovalve 1/2 3-way bistable assisted without coil - Metal Work

€179.47 Tax included

€149.56 tax excl.

Solenoid valve 1/2 3 ways bistable assisted, closed (NC), for industrial applications and general use. Supports coils of size 22mm with core of Ø8mm.

Reference: 7030020300


Logo-Metal-Work

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Solenoid valve 1/2 3-way bi-assisted pneumatic, supply does not include coils. For general and industrial applications, to be used with 22mm coils. This solenoid valve needs an external pneumatic pressure socket for pilot operation, allowing you to work even in vacuum applications.

Technical details:

  • Manufacturer of the solenoid valve: Metal Work.
  • Manufacturer's Reference: SOV43SEBOO Code: 7030020300
  • Working pressure of the solenoid valve: vacuum at 10 bar.
  • Minimum working pressure: 2.5 bar.
  • Working temperature: -10oC to 60oC.
  • Nominal diameter: 15mm.
  • Flow rate at 6 bars p 1 bar: 4600 Nl/min.
  • Manual drive: Yes.

Dimensiones electroválvulas 1/2-3/2 biestable metal work

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

16 other products in the same category:

solenoid valve 1/2 3 ways monostable normally open 24Vac 5VA - Metal Work - ADAJUSA solenoid valve 1/2 3 ways monostable normally open 24Vac 5VA - Metal Work - ADAJUSA 2
  • Pack
Solenoid valves 1/2

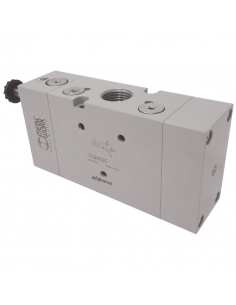

Solenoid valve 1/2 3 ways monostable NO 24Vac 5VA - Metal Work
