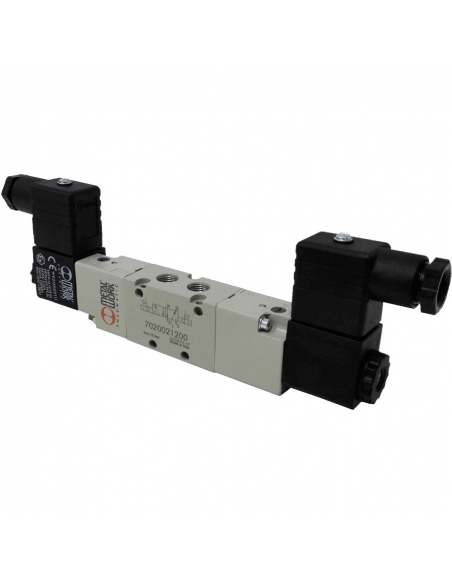

Solenoid valve 1/4 5 bistable roads 110Vac 3.5VA - Metal Work

1/4 5-way bistable pneumatic solenoid valve. For general and industrial applications. The solenoid valve is normally closed (NC), i.e. without voltage in the coil, the inlet is not communicated with the outlet, i.e. there is no air pressure at the outlet, the outlet is communicated with the valve exhaust. When the coil is put into tension, the solenoid valve is activated, air circulation occurs between the inlet and outlet of the solenoid valve. The coil is not included in the supply.

Supplier: Metal Work.

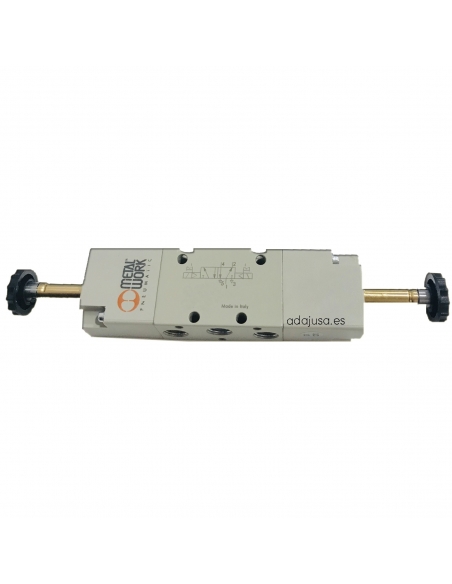

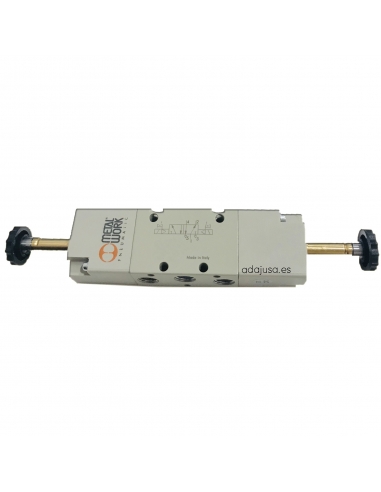

• 1 Solenoid valve 1/4 5/2 bistable
• 2 Coil 110Vac 3.5VA
• 2 Connector 22mm

• Operating pressure: 1 ÷10 bar
• Minimum attendance pressure: 2.5 bar
• Voltage: 110Vac
• Consumption: 3.5VA
• Operating temperature: -10 ÷ +60
• Nominal diameter: 7.5 mm
• Conductance C Nl/min ? bar: 264.26
• Critical relationship b bar/bar: 0.27
• Flow rate at 6 bar P 0.5 bar Nl/min: 750
• Flow rate at 6 bar P 1 bar Nl/min:1100
• TRA/TRR monostable at 6 bar ms: 19/45
• TRA/TRR bistable at 6 bar ms: 21/21
• Coil voltage: 12; 24 VDC - 24; 110; 220V AC 50/60Hz
• Voltage tolerances %: -10 ÷ +15

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"
