Solenoid valve 1/4 5/3 24Vcc 2W exhaust centers - Metal Work

€127.88 Tax included

€105.69 tax excl.

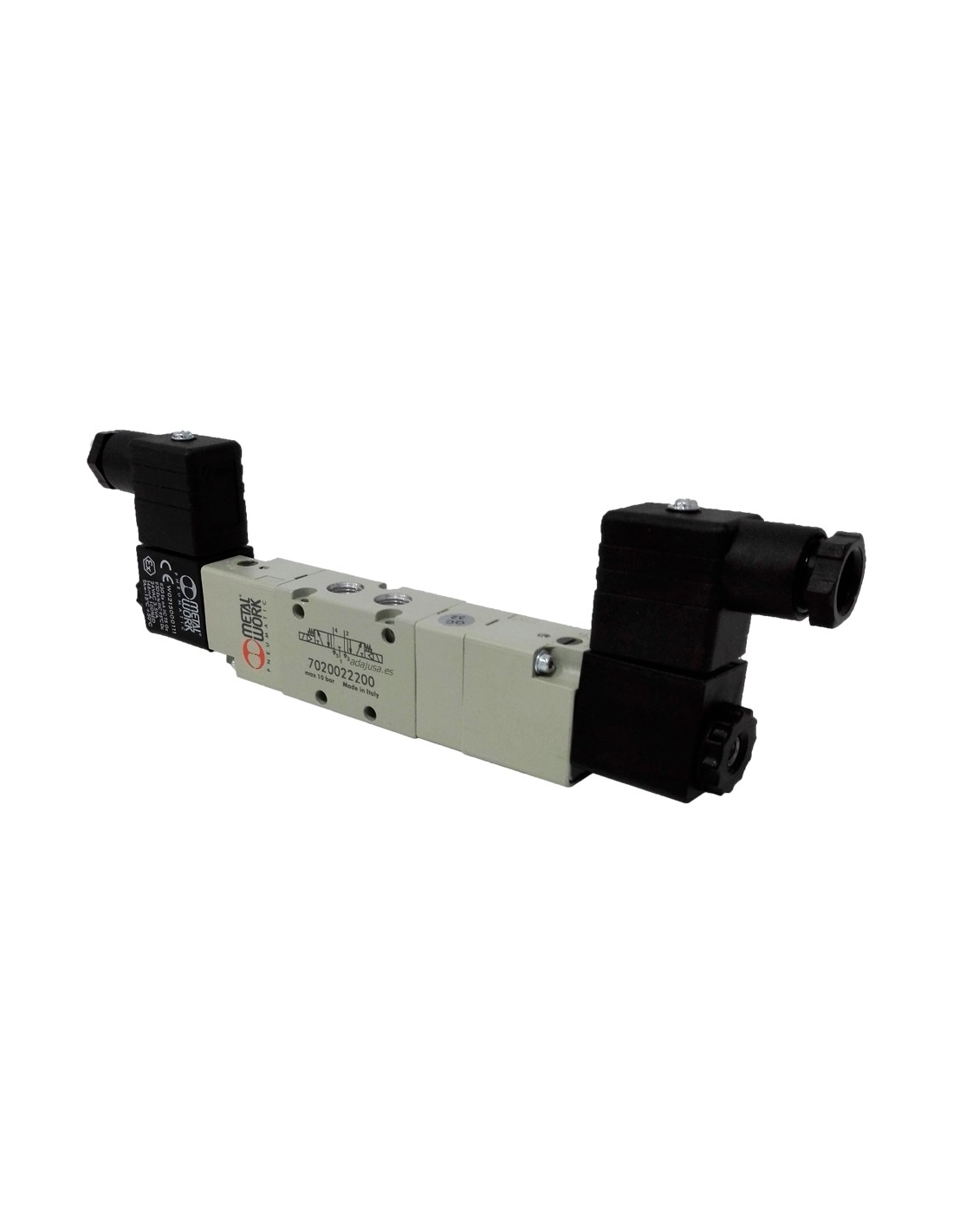

1/4" 5-way, 3-position solenoid valves, open exhaust centers, metal body, for pneumatic applications for industrial or general use.

Coil for solenoid valve size 22mm, voltage 24Vdc., with a consumption of 2W, for cores of Ø8mm. 22mm connector

Esquema electroválvula neumática 5/3 centros escape

Logo-Metal-Work
Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

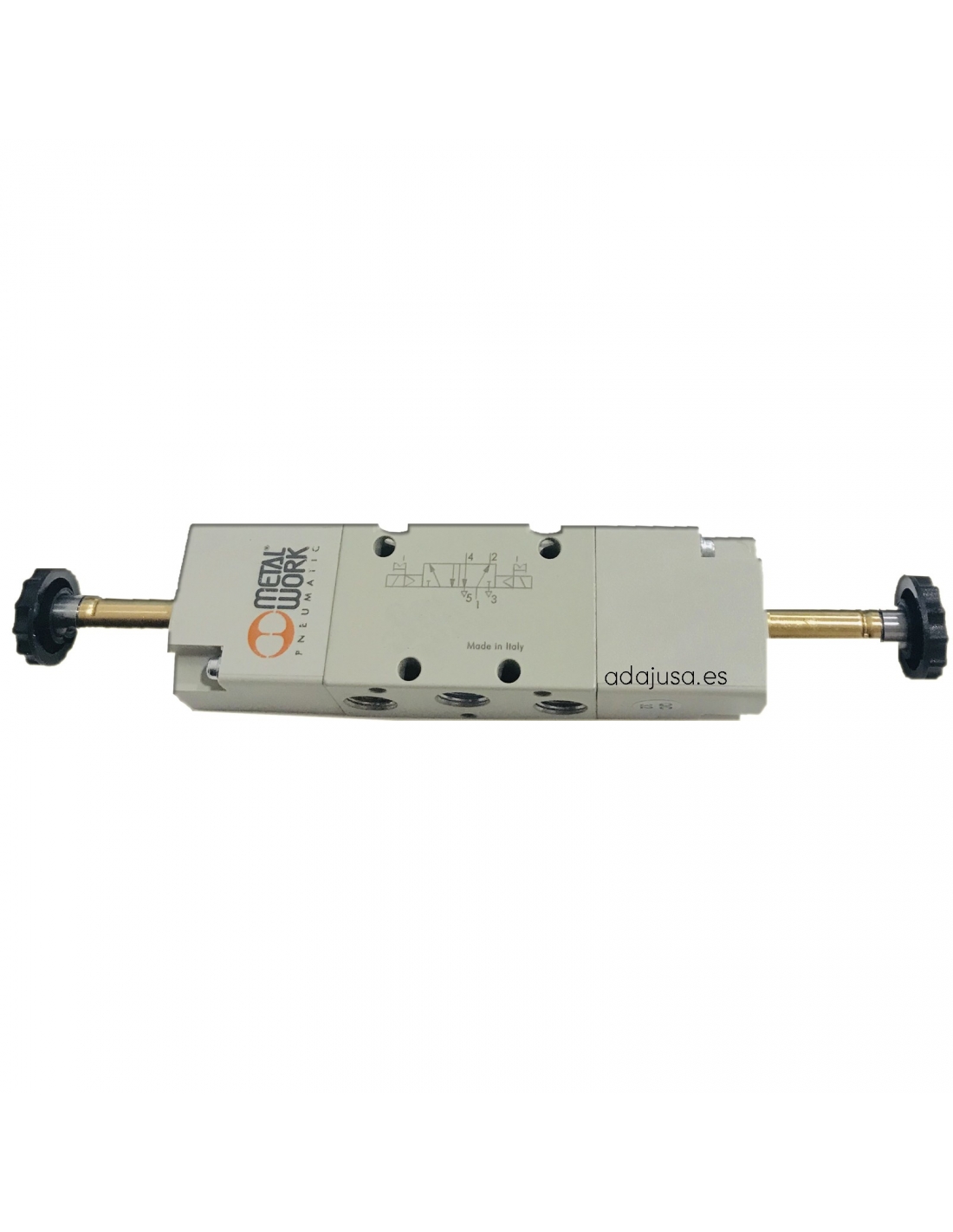

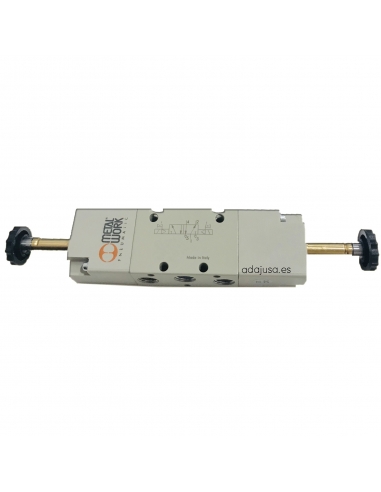

Solenoid valves of 1/4 " of 5 ways and 3 positions, open centers in exhaust, metal body, for pneumatic applications of industrial or general use, the most common application is of control of cylinders of double effect. Manufactured in Europe by METAL WORK.

The solenoid valve has 3 positions with 2 coils, if a coil is fed the cylinder advances, if both coils are left without tension, the cylinder will be without pneumatic pressure by any of its inputs, with which the cylinder stops exerting any force and if the other coil is fed, the cylinder is collected.

Coil for solenoid valve size 22mm, voltage 24Vdc., with a consumption of 2W, for cores of Ø8mm.

22mm plastic connector

The supply includes:

  • 1 Solenoid valve 1/4 5/3 open exhaust centers
  • 2 Coils 24Vdc 2W
  • 2 Connectors 22 mm

Specifications:

  • Solenoid valve manufacturer: Metal Work.
  • Solenoid valve reference: 7020022200 - SOV 36 SOS OC
  • Voltage: 24Vdc
  • Consumption: 2W
  • Solenoid valve working pressure: 2.5 to 10 bar.
  • Minimum working pressure: 2.5 bar.
  • Working temperature: -10ºC to 60ºC.
  • Nominal diameter: 5mm.
  • Flow at 6 bars Δp 1 bar: 550 Nl/min.
  • Manual drive: Yes.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
