1/8 5-way monostable assisted solenoid valve 110Vac 3.5VA - Metal Work - ADAJUSA

Solenoid valve 1/8 5-way monostable assisted 230Vac 3.5VA - Metal Work

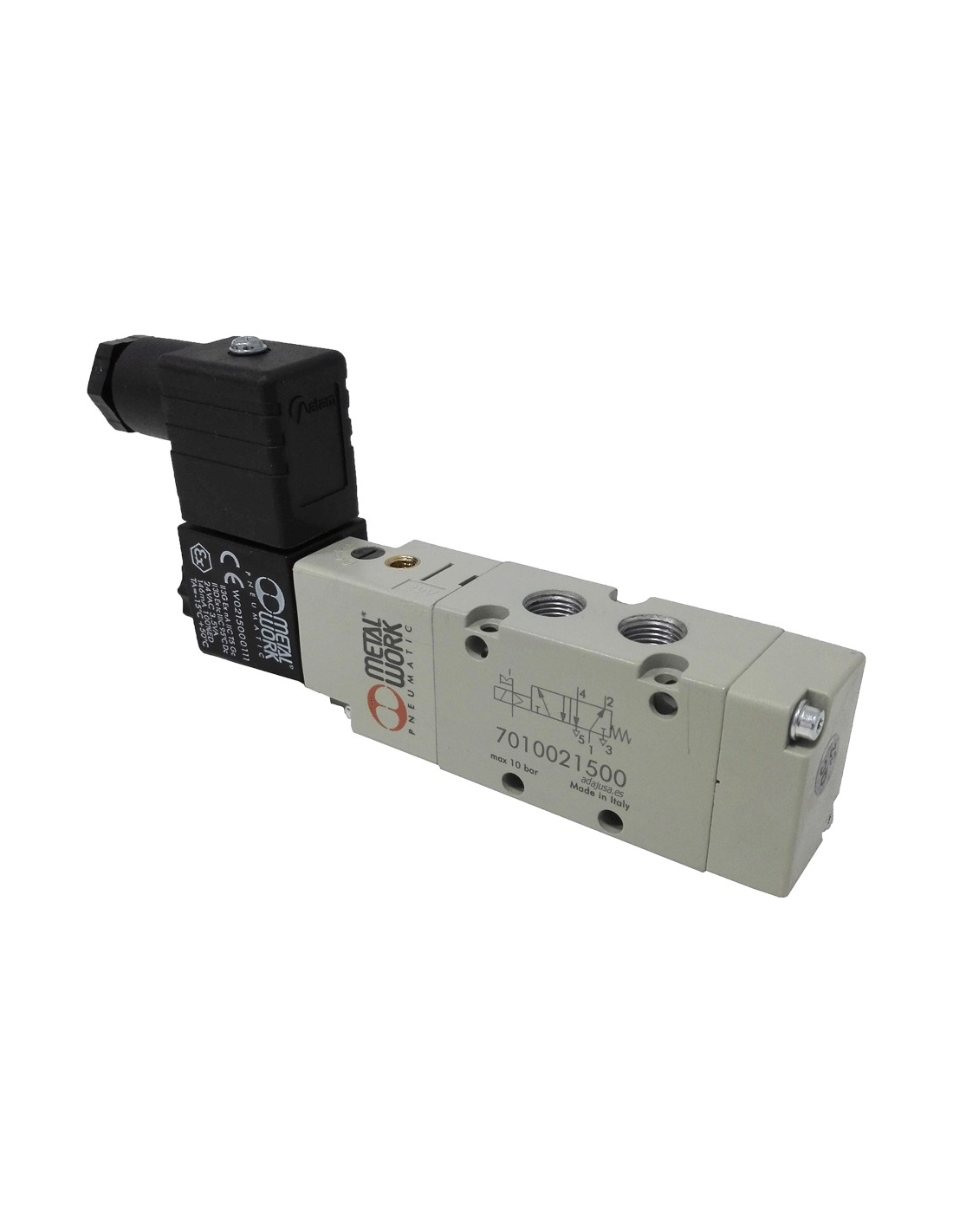

Name: Solenoid valve 1/8 5-way monostable assisted 230Vac 3.5VA - Metal Work
Brand: Metal Work
SKU: PK-121500230
Price: 70.8334 EUR
Availability: InStock

€70.83 Tax included

€58.54 tax excl.

1/8" assisted 5-way solenoid valves for pneumatic applications for industrial or general use. Manufactured in Europe by METAL WORK.

Coil for solenoid valve size 22mm, voltage 230Vac., with a consumption of 3.5VA, for cores of 8mm.

22 mm conetor

Logotipo Metal Work
simbolo electroválvula neumática 5 vías asistida

Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

This pack contains

Solenoid valve coil 230Vac 3.5VA T22 diameter 8 - Metal Work

€8.36

Solenoid valve connector size 22 - Metal Work

€1.37

Electrovalve 1/8 5-way assisted monostable - Metal Work - ADAJUSA

Solenoid valve 1/8 5-way monostable coil-assisted- Metal Work

€61.11

No queries yet, leave the first!

Privacy

Shipments

Returns

Solenoid valve 1/8 5 ways monostable assisted. By having an independent pressure inlet for the pilot (assisted) it can be used from 0 bars of pressure at the inlet.

The supply includes:

Solenoid valve 1/8 5 ways monostable assisted
Coil 230Vac 3,5VA
Connector 22 mm

Characteristics:

Manufacturer: Metal Work
Reference: SOV25SES00 Code: 7010021500.
Operating pressure bar: Empty ÷ 1
Minimum assist pressure bar: 2.5
Operating temperature °C: -10 ÷ +60
Nominal diameter mm: 5
Conductance C Nl/min · bar: 121.43
B bar/bar critical ratio: 0.32
Flow rate at 6 bar ΔP 0.5 bar Nl/min: 400
Flow rate at 6 bar ΔP 1 bar Nl/min: 550
Monostable TRA/TRR at 6 bar ms: 15/35
BISET TRA/TRR at 6 bar ms Voltage s coils: 20/20
Voltage: 220 - 240 Vac
Power: 3.5 VA
Voltage tolerances %: -10 ÷ +15

electrovalvula 1/8-5/2
Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

solenoid valve 70 series

70 series solenoid valves Metal Work

Download (2.19MB)
