Solenoid valve 1/8 5-way 3 positions pressure centers - Metal Work - ADAJUSA

24Vdc 2.5 W T22 x 8 solenoid coil - Metal Work

Solenoid valve 1/8 5 vias 3 positions pressure centers - Metal Work - adajusa.es

Solenoid valve 1/8 5 vias 3 positions pressure centers 230Vac 3.5VA - Metal Work

Name: Solenoid valve 1/8 5 vias 3 positions pressure centers 230Vac 3.5VA - Metal Work
Brand: Metal Work
SKU: PK-E1853P230
Price: 115.488 EUR
Availability: PreOrder

€115.49 Tax included

€96.24 tax excl.

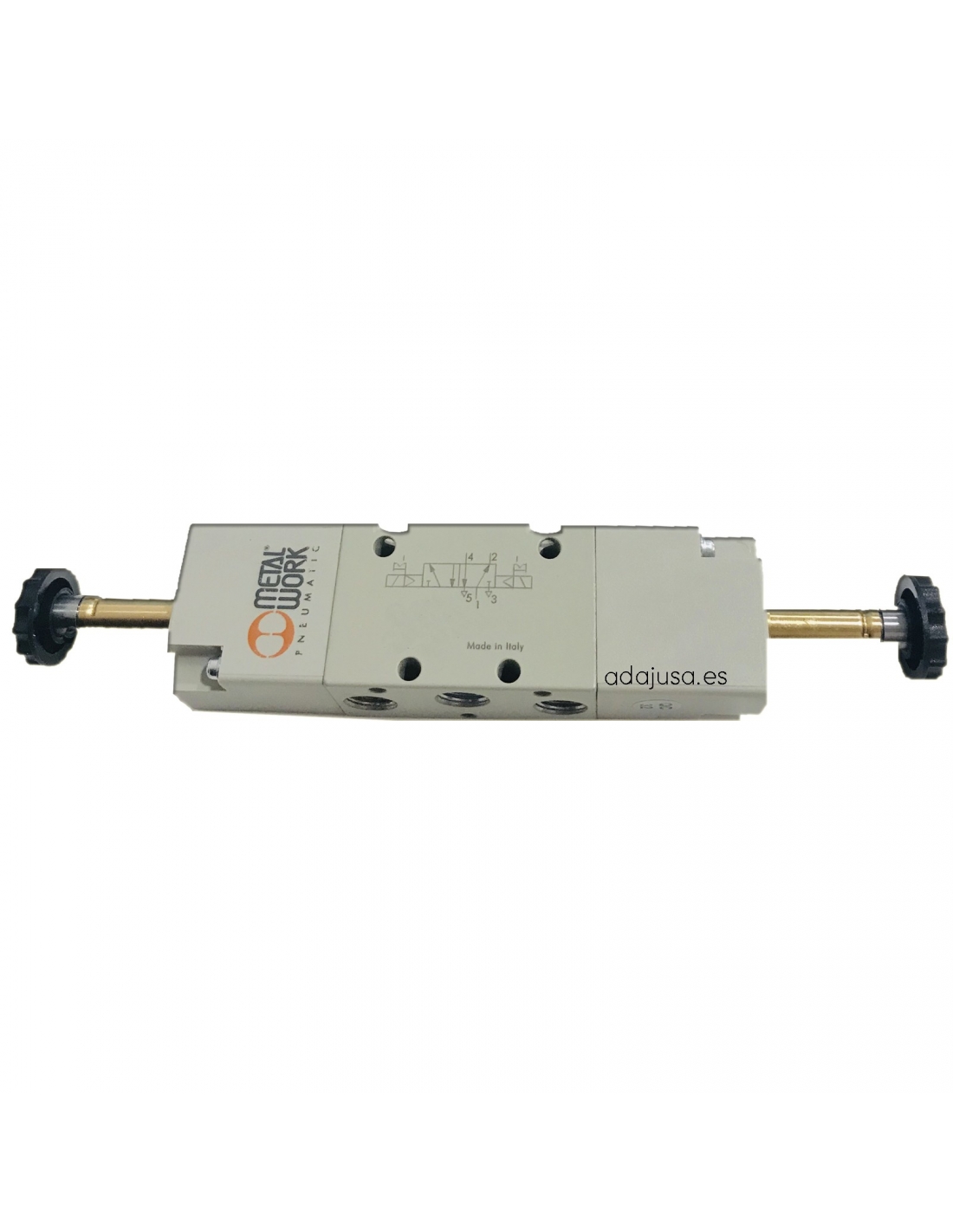

1/8" 5-way, 3-position solenoid valves,pressure centers, metal body, for pneumatic applications for industrial or general use. Manufactured in Europe by METAL WORK.

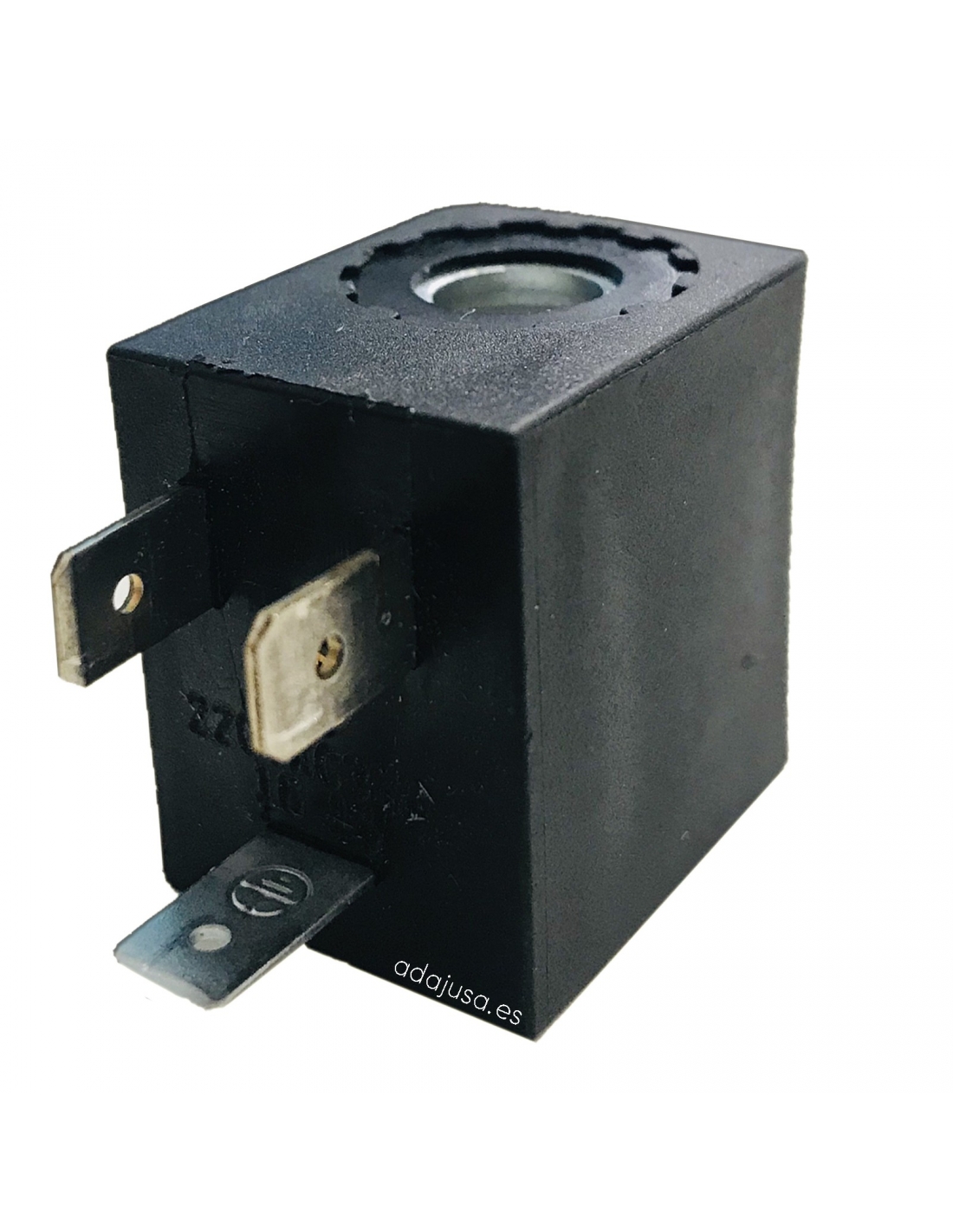

Coil for solenoid valve size 22mm, voltage 230Vac., with a consumption of 3.5VA, for cores of Ø8mm. Connector 22 mm.

Representative image for illustrative purposes, the item supplied shall correspond to the specifications indicated

This pack contains

Solenoid valve connector size 22 - Metal Work

€1.38

Solenoid valve coil 110Vac 3.5VA T22 diameter 8 - Metal Work

€8.45

Electrovalve 1/8 5-way 3 positions pressure centers - Metal Work - ADAJUSA

Solenoid valve 1/8-way 3 positions pressure centers - Metal Work

€95.83

No queries yet, leave the first!

Privacy

Shipments

Returns

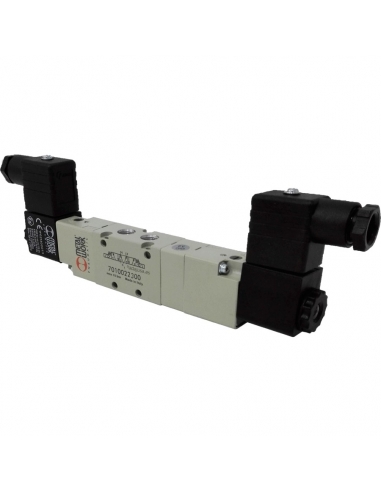

Solenoid valves of 1/8" of 5 ways and 3 positions, centers in pressure, metal body, for pneumatic applications of industrial or general use, the most common application is of control of cylinders of double effect. Manufactured in Europe by METAL WORK.

Coil for solenoid valve size 22mm, voltage 230Vac., with a consumption of 3.5VA, for cores of Ø8mm.

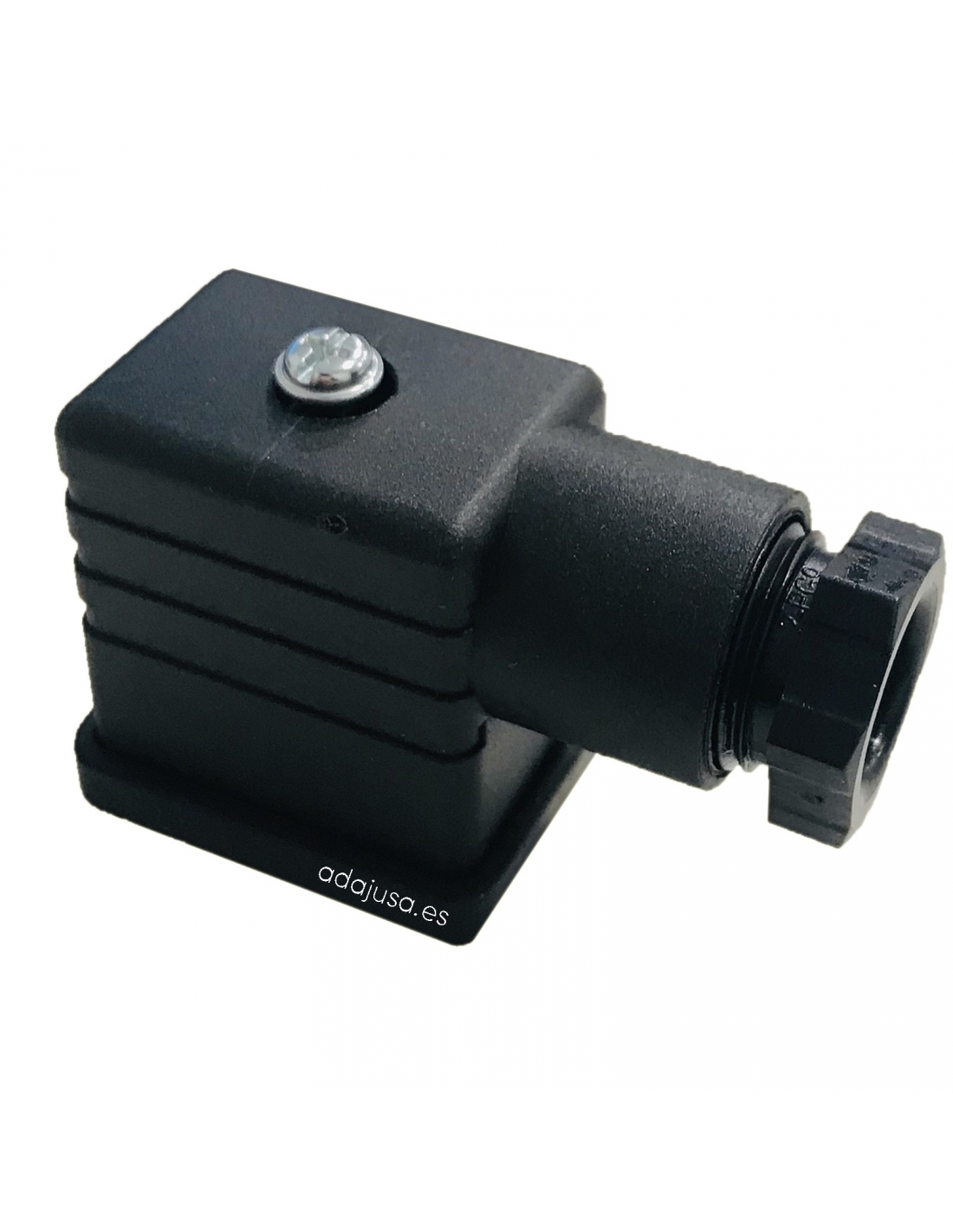

Plastic connector 22 mm.

The supply includes:

1 - Solenoid valve 1/8 5/3 pressure centers
2 - Coils 230Vca 3,5VA
2 - 22mm connectors

Specifications:

Solenoid valve manufacturer: Metal Work.
Solenoid valve reference: 7010022300 - SOV 26 SOS PC
Solenoid valve working pressure: 2.5 to 10 bar.
Voltage 230Vca
Consumption: 3.5VA
Minimum working pressure: 2.5 bar.
Working temperature: -10ºC to 60ºC.
Nominal diameter: 5mm.
Flow at 6 bars Δp 1 bar: 550 Nl/min.
Manual drive: Yes.

Dimensiones electroválvula 1/8 5/3 Metal Work

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

solenoid valve 70 series

70 series solenoid valves Metal Work

Download (2.19MB)
