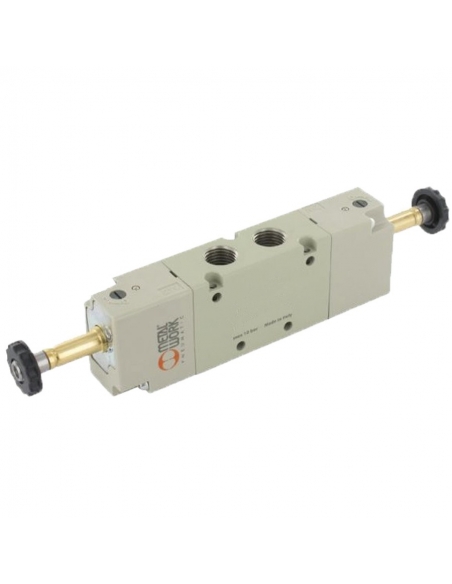

Double solenoid valve 1/8 3/2 ways NO - Metal Work

€91.49 Tax included

€76.24 tax excl.

7010023200

Solenoid valve 1/8 3/2 way double outlet NO (normally open). Coils not included

Reference: 7010023200

Logotipo Metal Work

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Description
Frequently questions

Doublepneumatic solenoid valve 1/8" 3/2 way NO. The solenoid valve is normally open, that is to say, without tension on the coil, the fluid or air will be passing through the solenoid valve , when the coil is put in tension the passage of the fluid or air will be interrupted.

Coil and connector not included.

Technical characteristics:

Manufacturer Metal Work
Part number: SOV 28 SOS NO Code: 7010023200
Thread type: G 1/8"
Bistable bar: 2.5 ÷ 10
Minimum assistance pressure bar: 2.5
Operating temperature °C: -10 ÷ +60
Nominal diameter mm: 5
Conductance C Nl/min - bar: 121,43
Critical ratio b bar/bar: 0,32
Flow rate at 6 bar ΔP 0.5 bar Nl/min: 400
Flow rate at 6 bar ΔP 1 bar Nl/min: 550
TRA/TRR monostable at 6 bar ms: 15/35
TRA/TRR bistable at 6 bar ms: 20/20
Voltage tolerances %: -10 ÷ +15
Class of isolation: F 155

Equipment for professional use, to be installed in compliance with the regulations in force at the place of installation.

For further information you can download the data sheet by clicking on the "Attachments" tab

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

Double solenoid valve 1/8 3/2 ways - Metal Work - ADAJUSA

Solenoid valves 1/8

Double solenoid valve 1/8 3/2 ways NC - Metal Work

€91.49 (€76.24 tax excl.)

Solenoid valve 1/8 3/2 way double NC output (normally closed). Coils not includedReference: 7010023100Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Double solenoid valve 1/8 3/2 ways - Metal Work - ADAJUSA

Solenoid valves 1/8

Double solenoid valve 1/8 3/2 ways NC-NO - Metal Work

€91.49 (€76.24 tax excl.)

Solenoid valve 1/8 3/2 way double output. One NC (normally closed) input and the other NO (normally open) input. Coils not includedReference: 7010023300Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Double solenoid valve 1/8 3/2 assisted tracks - Metal Work - ADAJUSA

Solenoid valves 1/8

Double solenoid valve 1/8 3/2 assisted pathways NC-NO - Metal Work

€97.19 (€80.99 tax excl.)

Solenoid valve 1/8 3/2 way double output. One NC (normally closed) input and the other NO (normally open) input. Coils not includedReference: 7010023600Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Assisted double solenoid valve 1/8 3/2 ways - Metal Work - ADAJUSA

Solenoid valves 1/8

Double solenoid valve 1/8 3/2 assisted tracks NC - Metal Work

€97.19 (€80.99 tax excl.)

Solenoid valve 1/8 3/2 way double output NC (normally closed) assisted. Coils not includedReference: 7010023400Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Double solenoid valve 1/8 3/2 assisted tracks - Metal Work - ADAJUSA

Solenoid valves 1/8

Double solenoid valve 1/8 3/2 assisted tracks NO - Metal Work

€97.19 (€80.99 tax excl.)

Solenoid valve 1/8 3/2 way double outlet NO (normally open) assisted . Coils not includedPart number: 7010023500Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

16 other products in the same category:

Solenoid valve 1/8 5 ways 3 positions assisted pressure centers with coil - Metal Work - ADAJUSA

Solenoid valve 1/8 5 ways 3 positions assisted pressure centers with coil - Metal Work - ADAJUSA 2

Pack

Blue double lip NBR seals

Solenoid valve 1/8 5 way 3 positions assisted c. p. 110Vca - Metal Work

€124.49 (€103.74 tax excl.)

Solenoid valves of 1/8" of 5 ways and 3 positions,assisted, centers in pressure, metal body, for pneumatic applications of industrial or general use. With 110Vca connectors and coils Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Solenoid valve 1/8 5/3 exhaust centers 110Vac Mindman S.220 - ADAJUSA

Solenoid valves 1/8

Solenoid valve 1/8 5/3 exhaust centers 110Vac - Mindman S.220

€112.82 (€94.02 tax excl.)

Pneumatic solenoid valve of 1/8" 5 ways 3 positions, exhaust centers (open centers), metal body, with coils at 110Vac. For double effect cylinder control. Reference: 281MVSC2204E2R6A3 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

ATEX coil for solenoid valve 24Vdc size 30 Aignep: ADAJUSA : price

Accessories for solenoid valves

Coil solenoid valve 24Vdc 3W Size 30mm diameter 9 ATEX - Aignep

€91.19 (€75.99 tax excl.)

ATEX coil for solenoid valve size 30mm, voltage 24Vdc, for Ø9mm cores. Coil consumption 3W. Valid for solenoid valves with 9mm actuator core.Reference: SOLX2024C1000 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.For more information, download the attached datasheet.

Dual Exhaust Regulation Kit 1/8 Series 70 Metal Work - ADAJUSA

Dual Exhaust Regulation Kit 1/8 Series 70 Metal Work - ADAJUSA 2

Solenoid valves on motherboard

Dual Exhaust Regulation Kit 1/8 70 Series - Metal Work

€19.70 (€16.42 tax excl.)

Dual Exhaust Regulation Kit 1/8 Series 70Reference: 0223106302Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

1/8 3-way bistable electrovalve - Metal Work - ADAJUSA

1/8 3-way bistable electrovalve - Metal Work - ADAJUSA 2

Solenoid valves 1/8

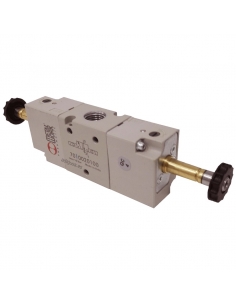

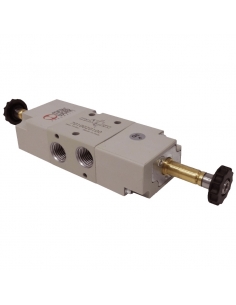

Solenoid valve 1/8 3-way bistable - Metal Work

€81.78 (€68.15 tax excl.)

Solenoid valves 1/8" 3 ways and 2 positions, for pneumatic applications for industrial or general use. Coil and connector not included.Part number: 7010020100 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated

Double solenoid valve 1/8 3/2 assisted nc (with coil) - Metal Work - ADAJUSA

Double solenoid valve 1/8 3/2 assisted nc (with coil) - Metal Work - ADAJUSA 2

Pack

Solenoid valves 1/8

Double solenoid valve 1/8 3/2 assisted tracks 24Vca NC - Metal Work

€117.61 (€98.01 tax excl.)

Solenoid valve 1/8 3/2 way double output NC (normally closed) assisted. With 24Vac connectors and coilsRepresentative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

1/8 5-way monostable solenoid valve 24Vac 3.5VA - Metal Work - ADAJUSA

1/8 5-way monostable solenoid valve 24Vac 3.5VA - Metal Work - ADAJUSA 2

Pack

Solenoid valves 1/8

Solenoid valve 1/8 5-way monostable 24Vac 3.5VA - Metal Work

€70.49 (€58.74 tax excl.)

1/8" 5-way solenoid valves for pneumatic applications for industrial or general use. Coil for solenoid valve size 22mm, voltage 24Vac., with a consumption of 3.5VA, for cores of 8mm.Electric connector for 22mm size solenoid valve, in black.Manufactured in Europe by METAL WORK. Representative image for illustrative purposes, the article supplied shall...

Double solenoid valve 1/8 3/2 assisted (with coils) NO - Metal Work - ADAJUSA

Pack

Solenoid valves 1/8

Double solenoid valve 1/8 3/2 assisted tracks 24Vdc NO - Metal Work

€117.61 (€98.01 tax excl.)

Solenoid valve 1/8 3/2 way double output NO (normally open) assisted . With 24Vdc connectors and coilsRepresentative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

1/8 3-way monostable solenoid valve 110Vac - Metal Work - ADAJUSA

1/8 3-way monostable solenoid valve 110Vac - Metal Work - ADAJUSA 2

Pack

Solenoid valves 1/8

Solenoid valve 1/8 3-way monostable 110Vac - Metal Work

€65.27 (€54.39 tax excl.)

1/8 3-way monostable solenoid valve with 110Vac coil. Normally closed (NC). Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

Multiple base for 1/8 and 1/4 5-way solenoid valves Mindman 220 series - ADAJUSA

Multiple base for 1/8 and 1/4 5-way solenoid valves Mindman 220 series - ADAJUSA 2

Solenoid valves 1/8

Multiple base for 1/8 and 1/4 5-way valves S.220 - Mindman

€11.64 (€9.70 tax excl.)

Multiple base plate for valves or solenoid valves of size 1/8" and 1/4" of 5 ways, series 220.Reference: 281MVSC2205BxxRepresentative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

1/8 3-way monostable assisted solenoid valve 24Vac - Metal Work - ADAJUSA

1/8 3-way monostable assisted solenoid valve 24Vac - Metal Work - ADAJUSA 2

Pack

Solenoid valves 1/8

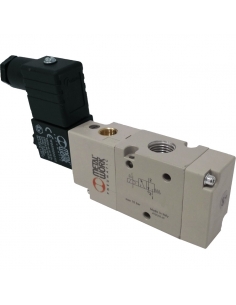

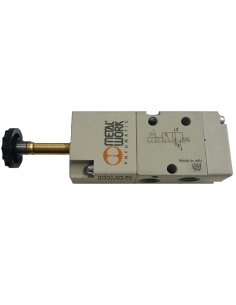

Solenoid valve 1/8 3-way monostable assisted 24Vac - Metal Work
