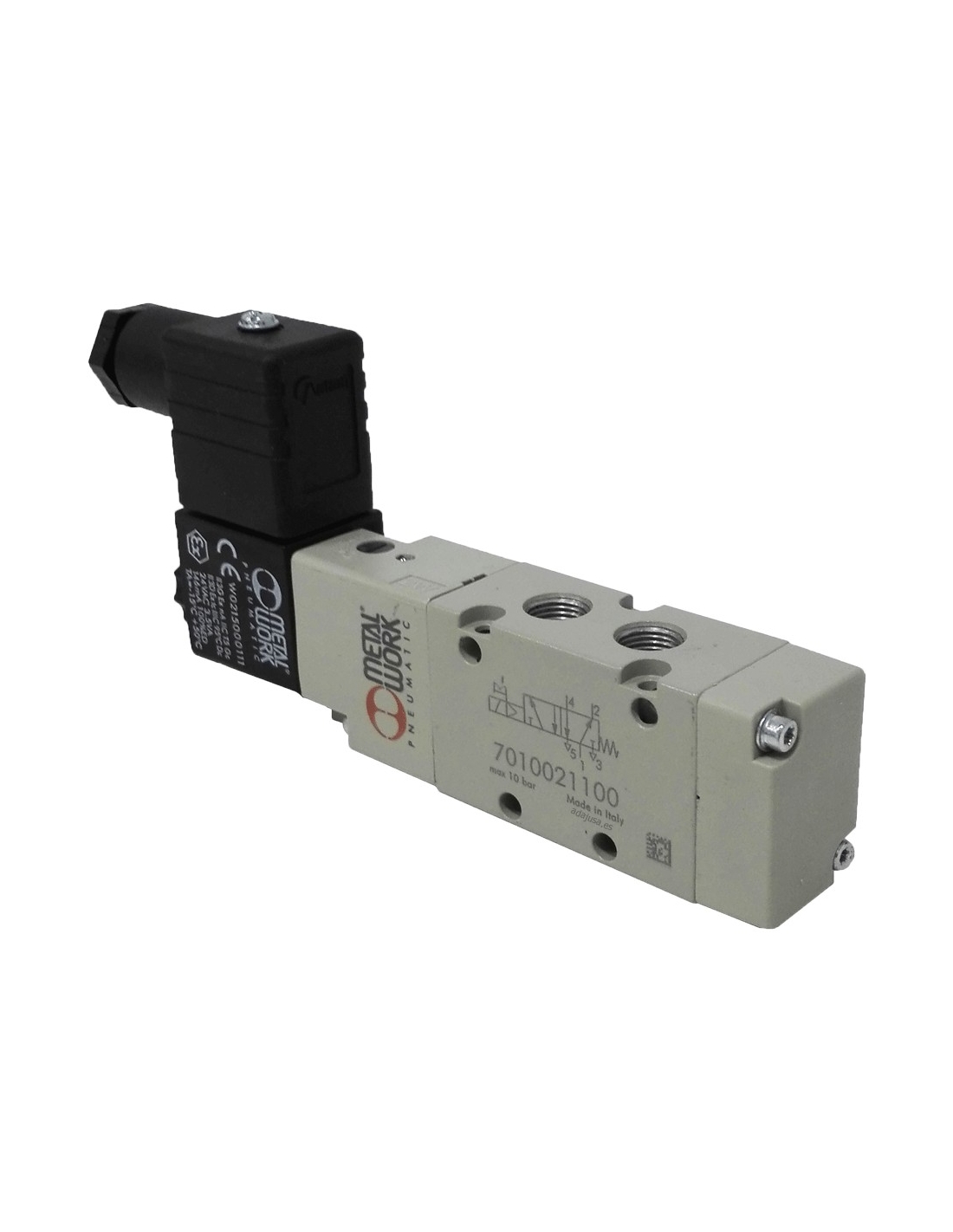

Solenoid valve 1/8 5-way monostable 24Vac 3.5VA - Metal Work

€67.68 Tax included

€55.93 tax excl.

1/8" 5-way solenoid valves for pneumatic applications for industrial or general use.

Coil for solenoid valve size 22mm, voltage 24Vac., with a consumption of 3.5VA, for cores of 8mm.

Electric connector for 22mm size solenoid valve, in black.

Manufactured in Europe by METAL WORK.
Logotipo Metal Work

simbolo eletroválvula neumática 5 vías

Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns

5-way 1/8" pneumatic solenoid valves for industrial or general pneumatic applications. High throughflow and very high reliability and durability.

The supply includes:

  • 5-way 1/8" pneumatic solenoid valves
  • Coil 24Vac 3,5VA
  • 22mm connector

Characteristics:
  • Manufacturer: Metal Work
  • Solenoid valve reference: 7010021100 - SOV25SOSOO .
  • Monostable bar operating pressure: 2.5 ÷10
  • Minimum assist pressure bar: 2.5
  • Operating temperature °C: -10 ÷ +60
  • Nominal diameter mm: 5
  • Conductance C Nl/min · bar: 121.43
  • B bar/bar critical ratio: 0.32
  • Flow rate at 6 bar ΔP 0.5 bar Nl/min: 400
  • Flow rate at 6 bar ΔP 1 bar Nl/min: 550
  • Monostable TRA/TRR at 6 bar ms: 15/35
  • BISET TRA/TRR at 6 bar ms Voltage s coils: 20/20
  • Voltage: 24Vac
  • Power: 3.5 VA
  • Voltage tolerances %: -10 ÷ +15


electrovalvula 1/8-5/2

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
