Solenoid valve 3/8 5 tracks assisted monostable - Metal Work - ADAJUSA

Solenoid valve 3/8 5 ways assisted monostable without coil - Metal Work

Name: Solenoid valve 3/8 5 ways assisted monostable without coil - Metal Work
Brand: Metal Work
SKU: 7040021500
Price: 97.488 EUR
Availability: PreOrder

€97.49 Tax included

€81.24 tax excl.

3/8" 5-way monestable pneumatic solenoid valve, for industrial applications and general use. Supports coils of size 22mm with core of Ø8mm.

Reference: 7040021500

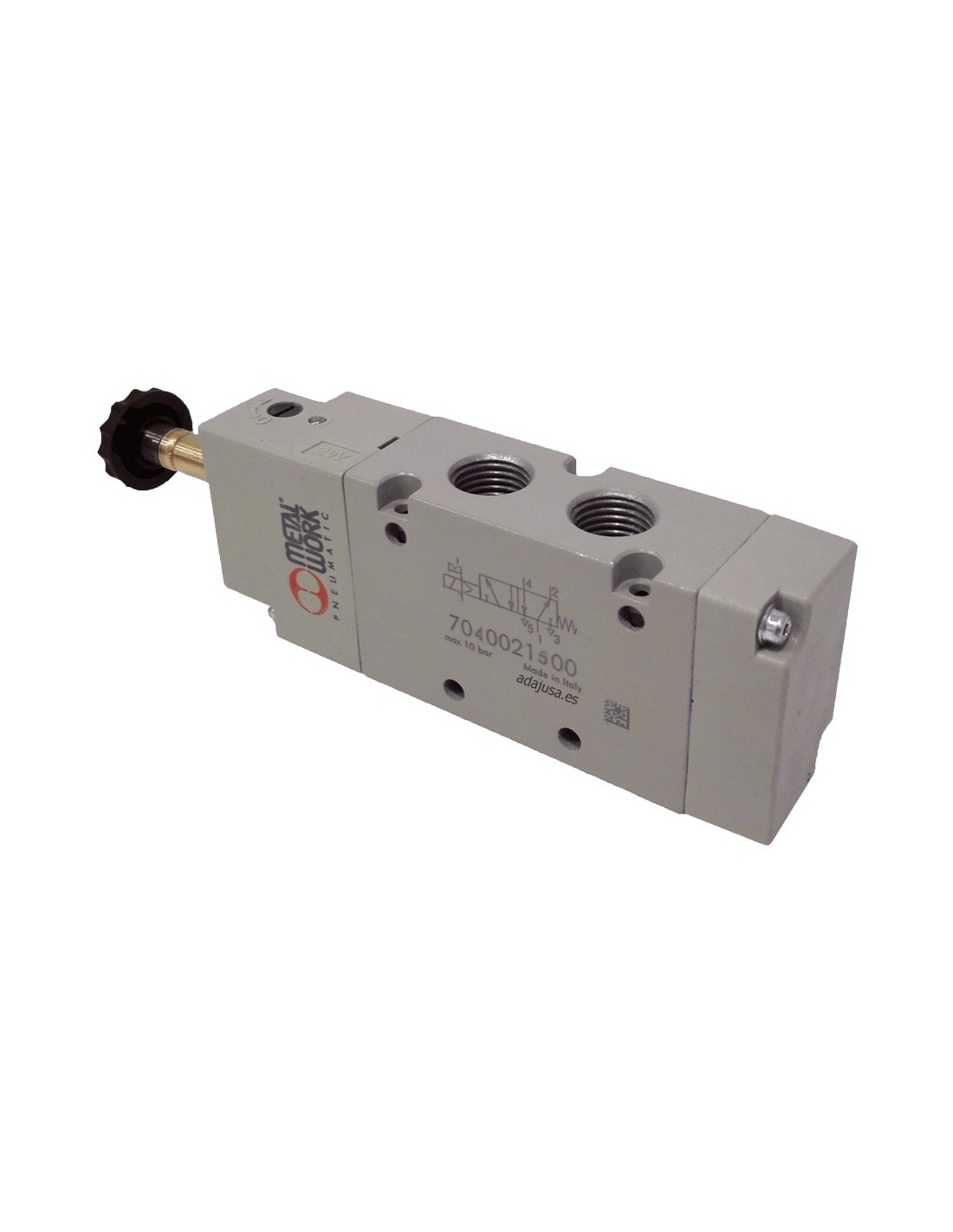

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Pneumatic solenoid valve of 3/8 5 ways 2 positions assisted monostable. For general and industrial applications. The coil is not included in the supply.

Characteristics:

Provider: Metal Work
Reference: 7040021500 - SOV C5 SES OO
Operating pressure: 2.5 ÷10 bar
Minimum assist pressure: 2.5 bar
Operating temperature: -10 ÷ +60
Nominal diameter: 13.3 mm
Conductance C Nl/min · bar: 505.52
B bar/bar critical ratio: 0.32
Flow rate at 6 bar ΔP 0.5 bar Nl/min: 1560
Flow rate at 6 bar ΔP 1 bar Nl/min:2150
Monostable TRA/TRR at 6 bar ms: 21/72
Bistable TRA/TRR at 6 bar ms: 18/18
Voltage according to coils: 12; 24 VDC - 24; 110; 220V AC 50/60Hz
Voltage tolerances %: -10 ÷ +15

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

Valve tabs

70 series valve data sheet Metal Work

Download (1.31MB)
