Solenoid valve 3/8 5/2 monostable - Aignep
Solenoid valve 3/8 5/2 monostable - Aignep

Solenoid valve 3/8 5/2 monostable - Aignep

€61.24 Tax included

€50.61 tax excl.

3/8 5 way Solenoid valve (coil not included), with G3/8" threads, anodized aluminum body, NBR seals.

Reference: 01VS050004
Pneumatic diagram of a 5-way monostable solenoid valve
Aignep logo
Aignep Adajusa regulatory logos (1)
Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

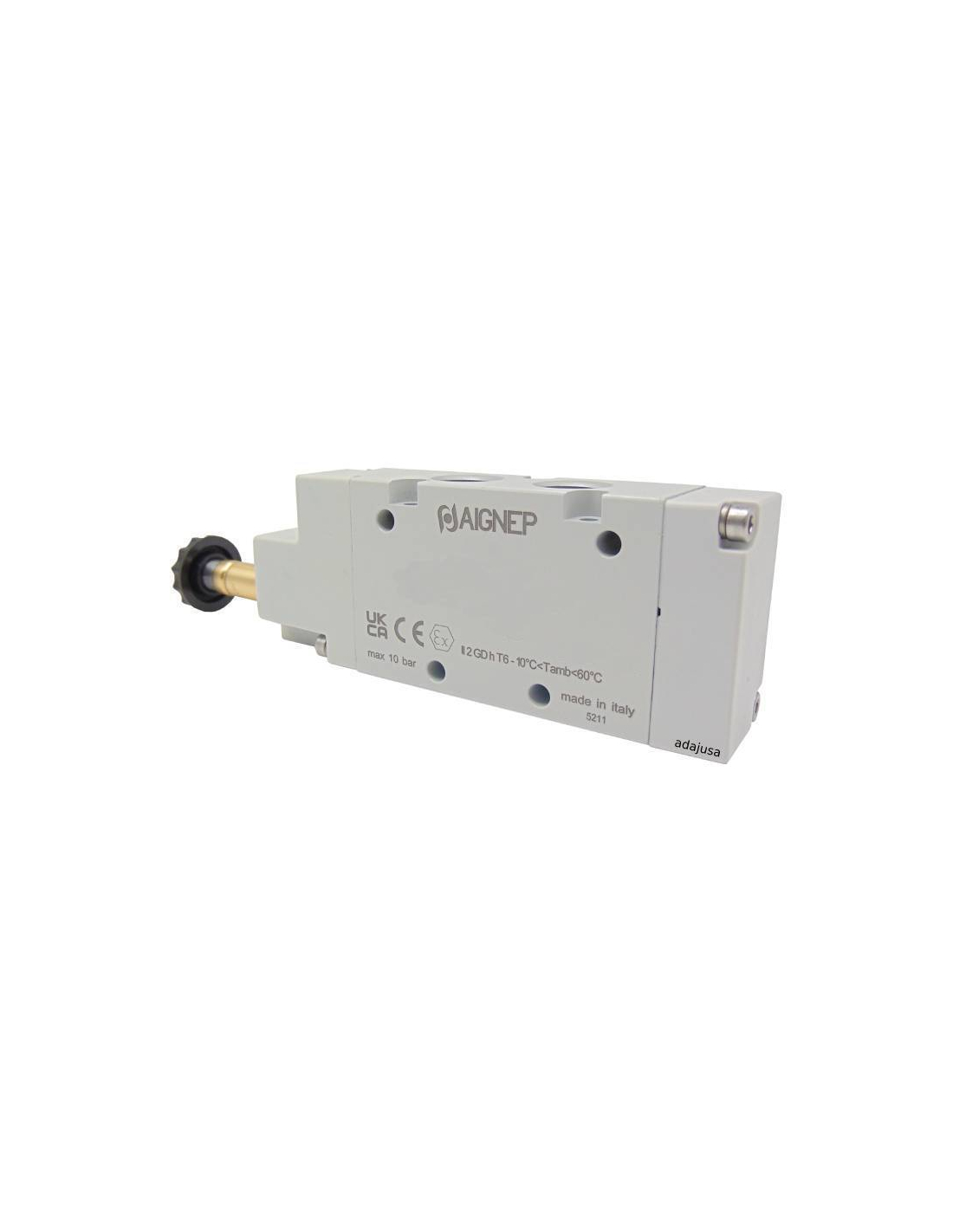

3/8" 5- way monostable pneumatic Solenoid valve , 01V series. Body made of anodized and painted aluminum, nickel-plated aluminum slide and NBR seals. European manufacture. Coil and connector not included in the supply.

Technical characteristics:

  • Manufacturer: Aignep
  • Reference: 01VS050004
  • Thread type: G 3/8"
  • Monostable bar : 2 to 10
  • Operating temperature °C: -10 ÷ +60
  • Flow rate at 6 bar ΔP 1 bar Nl/min: 2000 Nl/mi
  • Voltage tolerances: ±10%
  • Insulation class: F 155
  • Fluid: Filtered air without lubrication
  • Number of way : 5
  • Operation: Monostable
  • Seal material: NBR
01VS050004_MONOSTABLE
Construction image of 3-way solenoid valves Aignep Adajusa Professional use material, install in compliance with the regulations in force at the installation site.

For further information you can download the technical sheet by clicking on the "Attached Files" tab.
