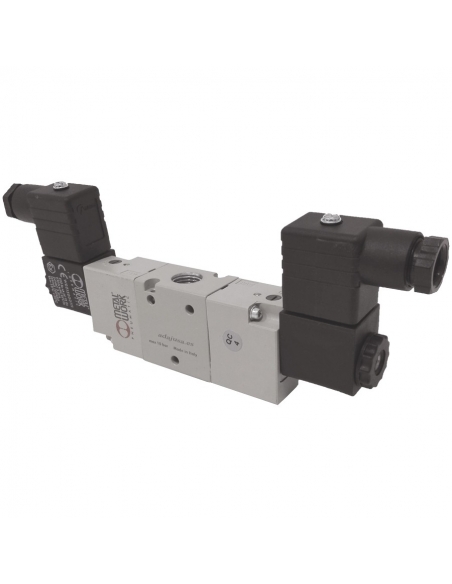

Solenoid valve 3/8 3 ways assisted bistable with coil - Metal Work - ADAJUSA

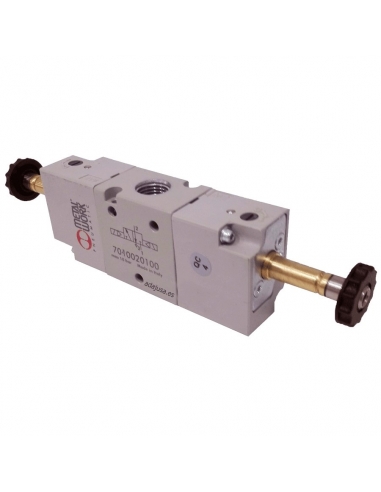

Solenoid valve 3/8 3 ways bistable - Metal Work - ADAJUSA

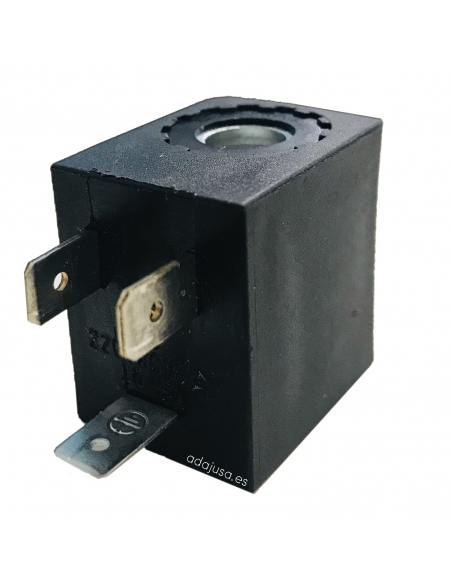

Solenoid valve coil 220Vac 3,5VA T22 Ø8 - Metal Work

Solenoid valve 3/8 3 ways assisted bistable 110 Vac- Metal Work

Name: Solenoid valve 3/8 3 ways assisted bistable 110 Vac- Metal Work
Brand: Metal Work
SKU: PK-383AB110
Price: 113.861 EUR
Availability: InStock

€113.86 Tax included

€94.10 tax excl.

Pneumatic solenoid valve of 3/8" 3 bistable assisted tracks, for industrial applications and general use. With 110 Vac connectors and coils

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

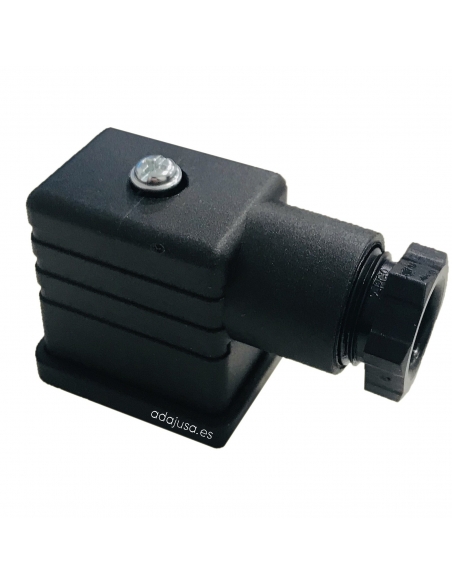

Solenoid valve connector size 22 - Metal Work

€1.37

Solenoid valve coil 110Vac 3.5VA T22 diameter 8 - Metal Work

€8.36

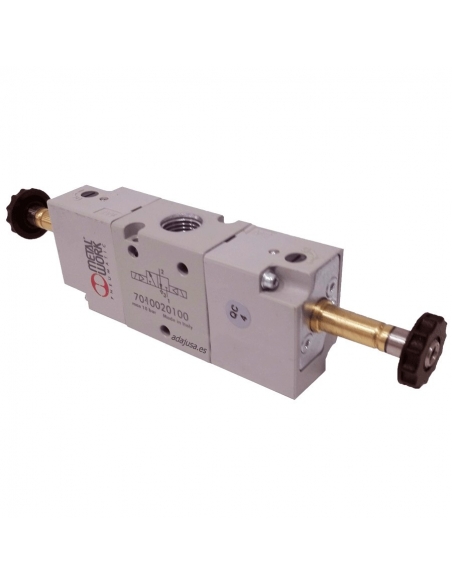

Solenoid valve 3/8 3-way bistable assisted - Metal Work

€94.40

No queries yet, leave the first!

Privacy

Shipments

Returns

Pneumatic solenoid valve of 3/8 3 ways 2 positions assisted bistable. For general and industrial applications.

The supply includes:

Solenoid valve 3/8 3/2 bistable assisted
2 Coils 110Vca 3.5VA
2 T22 connectors

Characteristics:

Provider: Metal Work
Solenoid valve reference: 7040020100- SOV C3 SEB OO
Operating pressure: 2.5 ÷10 bar
Minimum assist pressure: 2.5 bar
Operating temperature: -10 ÷ +60
Nominal diameter: 13.3 mm
Conductance C Nl/min · bar: 505.52
B bar/bar critical ratio: 0.32
Flow rate at 6 bar ΔP 0.5 bar Nl/min: 1560
Flow rate at 6 bar ΔP 1 bar Nl/min:2150
Monostable TRA/TRR at 6 bar ms: 21/72
Bistable TRA/TRR at 6 bar ms: 18/18
Voltage according to coils: 12; 24 VDC - 24; 110; 220V AC 50/60Hz
Voltage tolerances %: -10 ÷ +15
Voltage: 110Vac
Power: 3.5 VA

Material for professional use, install in compliance with the regulations in force at the place of installation.
