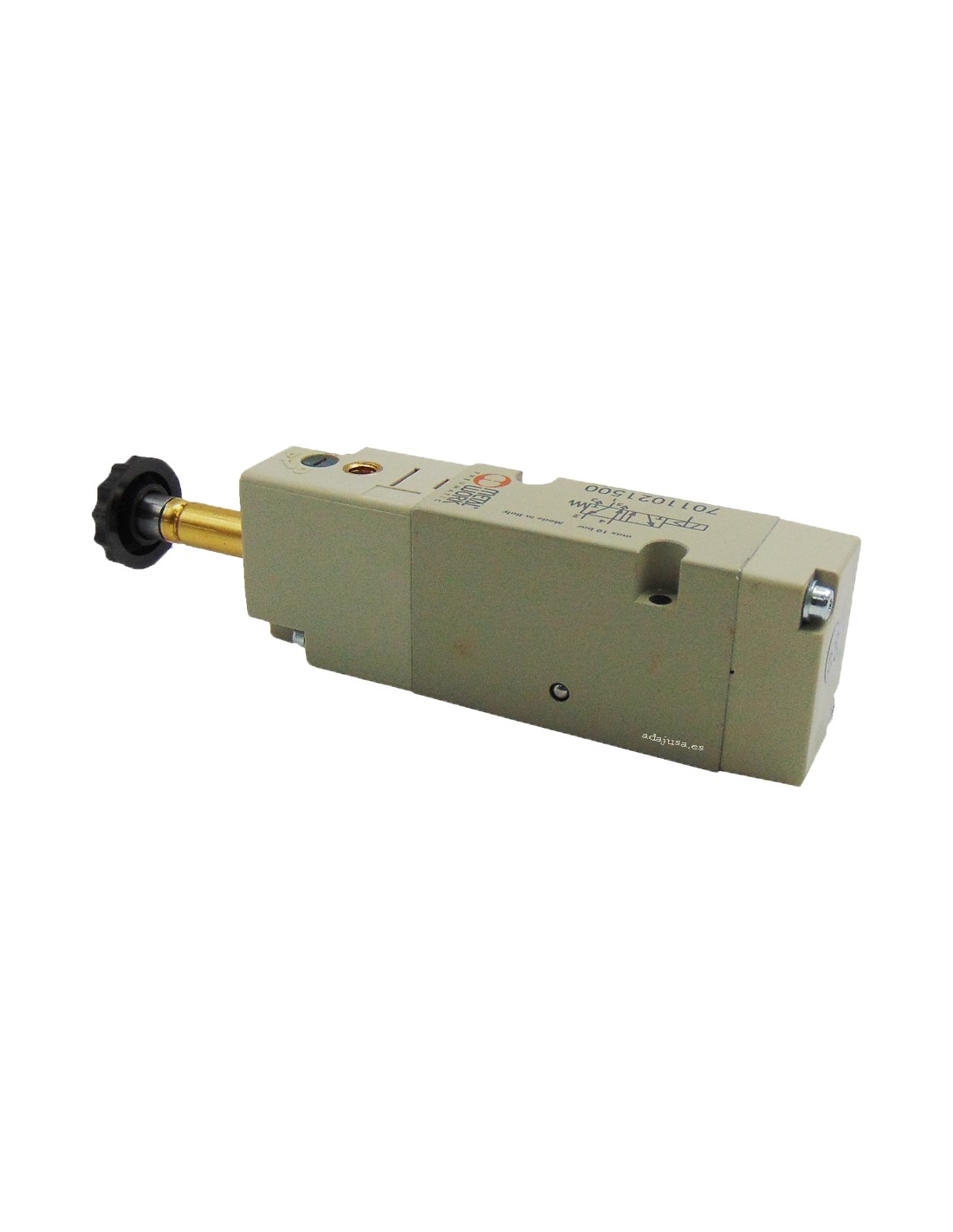

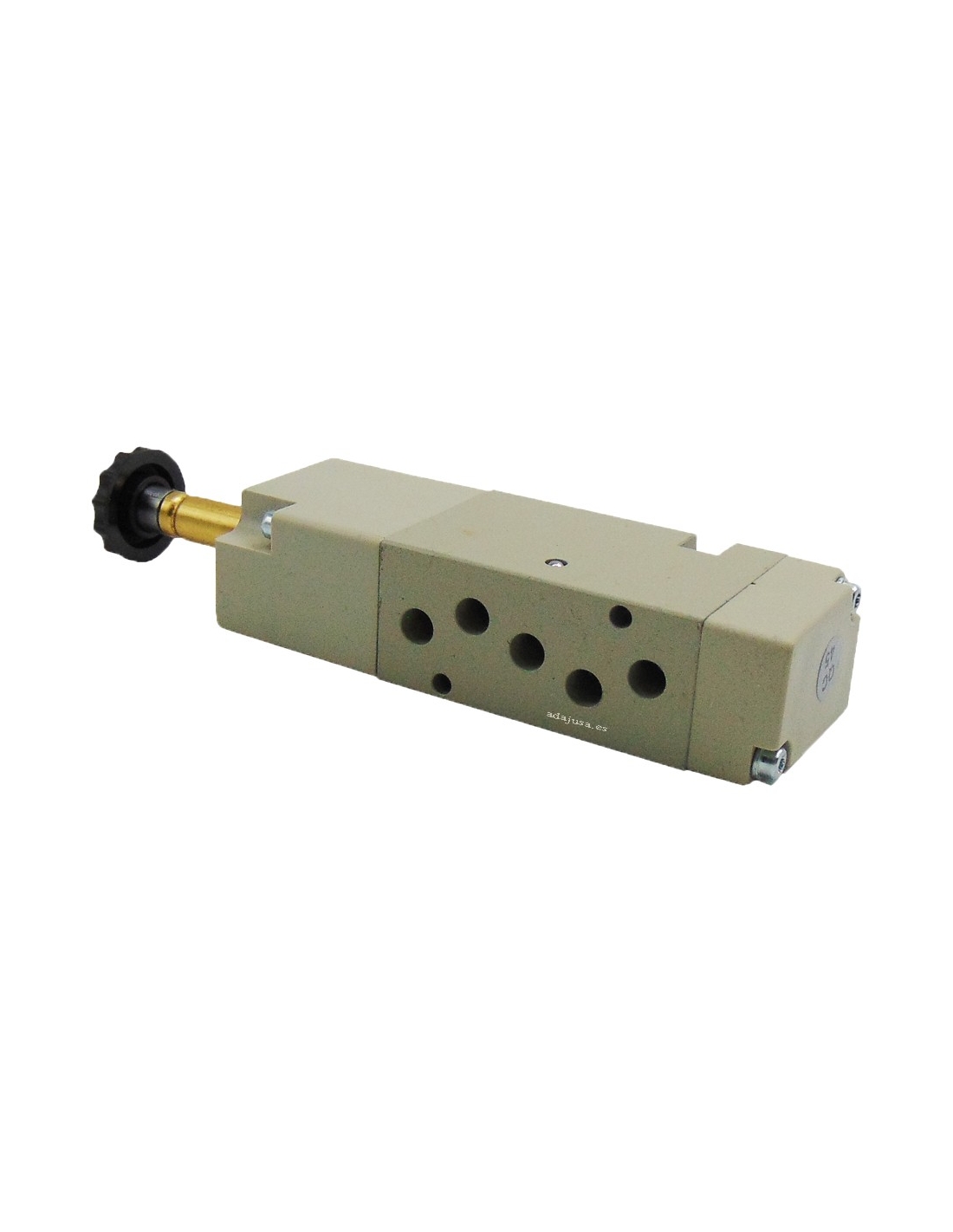

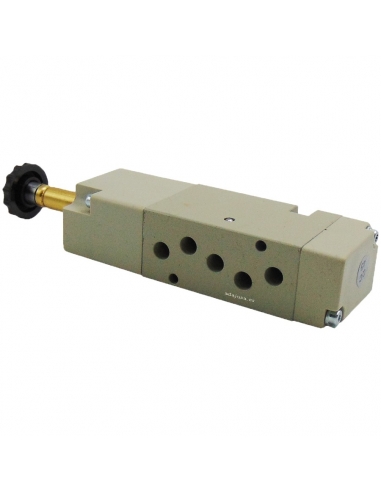

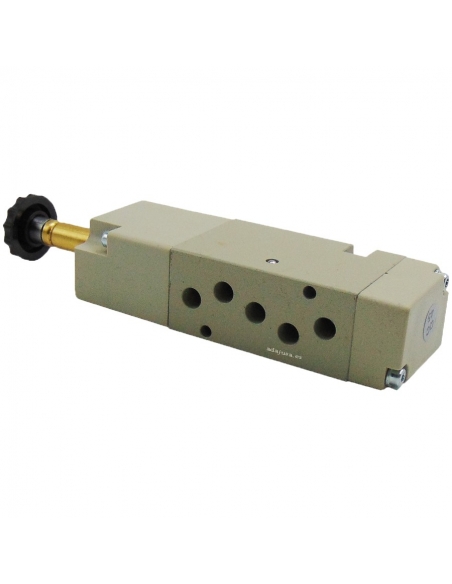

Pneumatic solenoid valve 5/2 assisted monostable on base - Metal Work - ADAJUSA

Pneumatic solenoid valve 5/2 assisted monostable series 70 on base - Metal Work

Name: Pneumatic solenoid valve 5/2 assisted monostable series 70 on base - Metal Work
Brand: Metal Work
SKU: 7011021500
Price: 56.688 EUR
Availability: PreOrder

€56.69 Tax included

€47.24 tax excl.

Solenoid valve on base plate 5/2 assisted monostable series 70. Connector and coil not included.

Reference: 7011021500

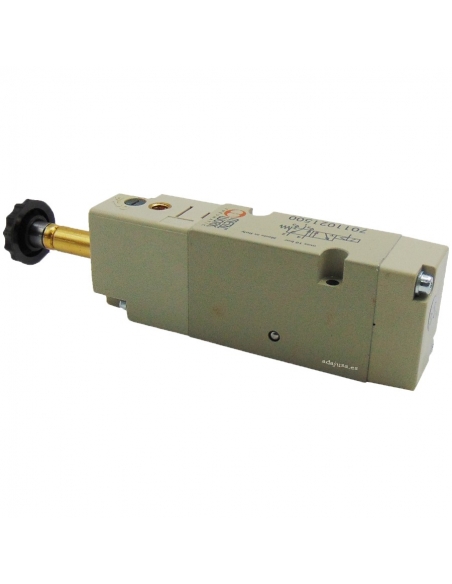

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Pneumatic solenoid valve 5/2 assisted monostable series 70 on plate. Connectors and coils not included.

Characteristics:

Manufacturer: Metal Work
Reference: 7011021500 - SOV B5 SES OO
Pressure (bar):Vacuum +/- 10
Minimum pressure (bar): 2.5
Operating temperature (ºC): -10 +/- 60
Nominal diameter (mm): 5
Conductance C (N| /min - bar): 107.69
Critical ratio b (bar): 0.29
Flow rate at 6 bar ∆P 0.5 bar (N| /min): 320
Flow at 6 bar ∆P 1 bar (N| /min): 450
Monostable TRA/TRR at 6 bar (ms): 15 / 35
Tension tolerate (%): -10 +/- 15
Insulation class: F 155
Maximum torque core coil (Nm): 1

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

Solenoid valve sheet on base

70 series solenoid valves on plate

Download (182.21KB)

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

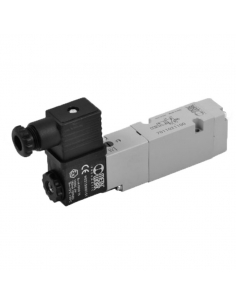

Pneumatic solenoid valve 5/2 monostable series 70 on base - Metal Work

Metal Work

7011021100

€56.58 (€47.15 tax excl.)

Solenoid valve on base plate 5/2 monostable series 70. Connector and coil not included.Reference: 7011021100 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Pneumatic solenoid valve 5/2 bistable series 70 on base - Metal Work - ADAJUSA

Solenoid valves on motherboard

Pneumatic solenoid valve 5/2 bistable series 70 on base - Metal Work

Metal Work

7011021200

€82.93 (€69.11 tax excl.)

Solenoid valve on base plate 5/2 bistable series 70. Connector and coil not included.Reference: 7011021200 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Pneumatic solenoid valve 5/2 bistable differential series 70 on base - Metal Work - ADAJUSA

Solenoid valves on motherboard

Pneumatic solenoid valve 5/2 bistable differential series 70 on base - Metal Work

Metal Work

7011021300

€80.08 (€66.73 tax excl.)

Solenoid valve on base plate 5/2 bistable differential series 70. Connector and coil not included.Reference: 7011021300 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

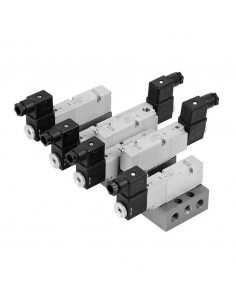

Pneumatic solenoid valve 5/2 assisted bistable series 70 on base - Metal Work - ADAJUSA

Solenoid valves on motherboard

Pneumatic solenoid valve 5/2 assisted bistable series 70 on base - Metal Work

Metal Work

7011021600

€78.85 (€65.71 tax excl.)

Solenoid valve on base plate 5/2 assisted bistable series 70. Connector and coil not included.Reference: 7011021600 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

16 other products in the same category:

Solenoid valve 5/2 assisted bistable 24 Vdc series 70 on Metal Work basis - ADAJUSA

Solenoid valve 5/2 assisted bistable 24 Vdc series 70 on Metal Work basis - ADAJUSA 2

Pack

Solenoid valves on motherboard

Solenoid valve 5/2 assisted bistable 24 Vdc series 70 on base - Metal Work

Metal Work

PK-52AB24C

€98.51 (€82.09 tax excl.)

Solenoid valve on base plate 5/2 assisted bistable series 70. With connector and coil of 24 Vdc Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Accessories for solenoid valves

Connector solenoid valve size 22 ATEX - Aignep

Aignep

CONX100001

€5.00 (€4.17 tax excl.)

Electrical connector for solenoid valve size 22mm, ATEX standard, black color. Reference: CONX100001 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Accessories for solenoid valves

Solenoid valve coil 24Vac 5VA T22 diameter 8 - Metal Work

Metal Work

W0215000011

€8.45 (€7.04 tax excl.)

Coil for solenoid valve size 22mm, voltage 24Vca., with a consumption of 3.5VA, for cores of Ø8mm. Manufactured by Metal Work and valid for solenoid valves with 8mm actuator core.Reference: W0215000011 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Solenoid valves on motherboard

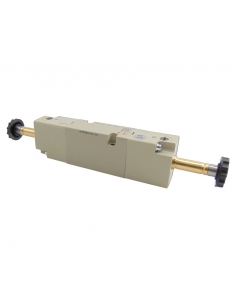

Pneumatic solenoid valve 5/2 assisted bistable series 70 on base - Metal Work

Metal Work

7011021600

€78.85 (€65.71 tax excl.)

Pneumatic solenoid valve 5/2 monostable on base - Metal Work - ADAJUSA

Pneumatic solenoid valve 5/2 monostable on base - Metal Work - ADAJUSA 2

Pack

Solenoid valves on motherboard

Solenoid valve 5/2 monostable 24 Vac series 70 on base - Metal Work

Metal Work

PK-5224AB

€66.41 (€55.34 tax excl.)

Solenoid valve on base plate 5/2 monostable series 70. With 24 Vac connector and coil Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Pack

Solenoid valves on motherboard

Solenoid valve 5/2 assisted monostable 24 Vdc series 70 on base - Metal Work

Metal Work

PK-5224CA

€66.52 (€55.43 tax excl.)

Solenoid valve on base plate 5/2 assisted monostable series 70. With connector and coil of 24 Vdc Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Solenoid valve 5/2 differential 230 Vac series 70 on Metal Work basis - ADAJUSA

Solenoid valve 5/2 differential 230 Vac series 70 on Metal Work basis - ADAJUSA 2

Pack

Solenoid valves on motherboard

Solenoid valve 5/2 differential 230 Vac series 70 on base - Metal Work

Metal Work

PK-52D230

€113.87 (€94.89 tax excl.)

Solenoid valve on base plate 5/2 differential series 70. With 230 Vac connector and coil Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Pneumatic solenoid valve 5/3 exhaust centers 24 Vac series 70 on base - Metal Work - ADAJUSA

Pneumatic solenoid valve 5/3 exhaust centers 24 Vac series 70 on base - Metal Work - ADAJUSA 2

Pack

Solenoid valves on motherboard

Solenoid valve 5/3 exhaust centers 24 Vac series 70 on base - Metal Work

Metal Work

PK-52CE24A

€114.72 (€95.60 tax excl.)

Solenoid valve on base plate 5/3 monostable exhaust centers, series 70. With 24 Vac connector and coil Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Pneumatic solenoid valve 5/3 assisted closed centers moestable 230 Vac series 70 on base - Metal Work - ADAJUSA

Pneumatic solenoid valve 5/3 assisted closed centers moestable 230 Vac series 70 on base - Metal Work - ADAJUSA 2

Pack

Solenoid valves on motherboard

Solenoid valve 5/3 assisted closed centers 230 Vac series 70 on the basis - Metal Work

Metal Work

PK-52ACC230

€116.80 (€97.33 tax excl.)

Solenoid valve on base plate 5/3 assisted monostable closed centers, series 70. With 230 Vac connector and coil Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Pack

Solenoid valves on motherboard

Solenoid valve 5/2 assisted monostable 110 Vac series 70 on base - Metal Work

Metal Work

PK-52110A

€66.52 (€55.43 tax excl.)

Solenoid valve on base plate 5/2 assisted monostable series 70. With 110 Vac connector and coil Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Solenoid valve 1/4 5/2 ways monostable 24 Vdc on plate - Mindman - ADAJUSA

Solenoid valves on motherboard

Solenoid valve 1/4 5/2 ways monostable 24 Vdc on plate - Mindman

Mindman

MVSC220M4E12

€49.39 (€41.16 tax excl.)

Pneumatic solenoid valve of 1/4 5 ways monostable for mounting on base plate. With conetor and 24Vdc coil Reference: 281MVSC220M4E12 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Size 30 solenoid valve connector with VDR 220V and LED

Accessories for solenoid valves

Solenoid valve connector size 30 with VDR 220V and led

Metal Work

W0970520039

€7.00 (€5.83 tax excl.)

Connector for solenoid valve with VDR 30 V protector with Led. For 22mm coils. Reference: W0970520033 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Solenoid valves on motherboard

Multiple base for 1/8 valves - Metal Work

Metal Work

0223000xxx

€43.46 (€36.22 tax excl.)

Multiple motherboard for valves and electrovalves (between 2 and 10) of 1/8". For electrovalves of the brand Metal Work. Reference: 0223000xxx Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Luminous valve connector size 22 with VDR 220V - ADAJUSA

Accessories for solenoid valves

Solenoid valve connector luminous size 22 with VDR 220V

Metal Work

W0970510017

€7.00 (€5.83 tax excl.)

Connector for solenoid valve with VDR 220 V protector and LED indication. For 22mm coils. Reference: W0970510017Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

Accessories for solenoid valves

Connector solenoid valve luminous size 22 with VDR 0-24V - Aignep

Aignep

CON0202400

€6.02 (€5.02 tax excl.)

Connector for solenoid valve with VDR 24 V protector and led indication. For 22mm coils. Part number: CON0202400 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Solenoid valve 5/3 assisted pressure centers 230 Vac series 70 based on Metal Work - ADAJUSA

Solenoid valve 5/3 assisted pressure centers 230 Vac series 70 based on Metal Work - ADAJUSA 2

Pack

Solenoid valves on motherboard

Solenoid valve 5/3 assisted pressure centers 230 Vac series 70 on base - Metal Work

Metal Work

PK-52ACP230

€111.30 (€92.75 tax excl.)

Solenoid valve on base plate 5/3 assisted monostable pressure centers, series 70. With 230 Vac connector and coil Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Customers who bought this product also bought:

Gearbox accessories

Double output axle T-40 x 18

93EDT-40-18

€11.62 (€9.68 tax excl.)

Double shaft of output type T-40 of Ø18mm., for reducers worm gear crown size 40. Made of rectified steel. Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

Accessories for solenoid valves

Solenoid valve connector size 22 - Metal Work

W0970510011

€1.38 (€1.15 tax excl.)

Electrical connector for solenoid valve size 22mm., in black. Reference: W0970510011Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Endless crown reducers

Worm Reducer Size 40 PAM 105/14 flange - Motor casing 71 B14

9R040xxx71B14

€77.18 (€64.32 tax excl.)

With Ø18mm hollow output shaft, and PAM 105/14 input flange (Ext Ø 105mm and input shaft Ø 14mm) type B14, suitable for motors with frame size 71. Reduction ratios: 7.5-10-15-20-25-30-40. The powers of the usual engines at 1500 rpm are: 0.25CV Max. grid. i=60. 0.33CV Max. grid. i=40. 0.5CV Max. grid. i=25. Representative image for...

Three-phase contactor 9A coil 230Vac - Schneider

Three-phase contactor 9A coil 230Vac - Schneider 2

Schneider contactors

Three-phase contactor 9A coil 24Vdc low power consumption - Schneider

LC1D09BL

€39.55 (€32.96 tax excl.)

Three-phase contactor brand Schneider Electrics, TeSys D series. 3 poles with a current capacity of 9A in AC3 and 25A in AC1, with 24Vdc coil in low power consumption. Equipped with an open auxiliary contact (NA) and a closed auxiliary contact (NC). Reference: LC1D09BL Representative image for illustrative purposes, the supplied article is subject to...

Three-phase contactor 18A coil 230Vac - Schneider

Schneider contactors

Three-phase contactor 18A coil 230Vac - Schneider

LC1D18P7

€30.19 (€25.16 tax excl.)

Three-phase contactor brand Schneider Electrics, TeSys D series. 3 poles with a current capacity of 18A in AC3 and 32A in AC1, with 230Vac coil. Equipped with an open auxiliary contact (NA) and a closed auxiliary contact (NC). Reference: LC1 D18P7 Representative image for illustrative purposes, the supplied article is subject to the specifications...

Single-phase motors 1500 rpm flange B14

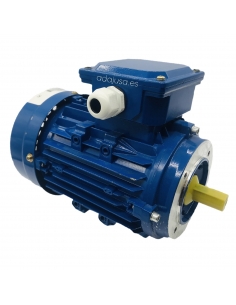

Single-phase motor 0.37Kw 0.5HP 230V 1500 rpm medium starting torque, Flange B14
