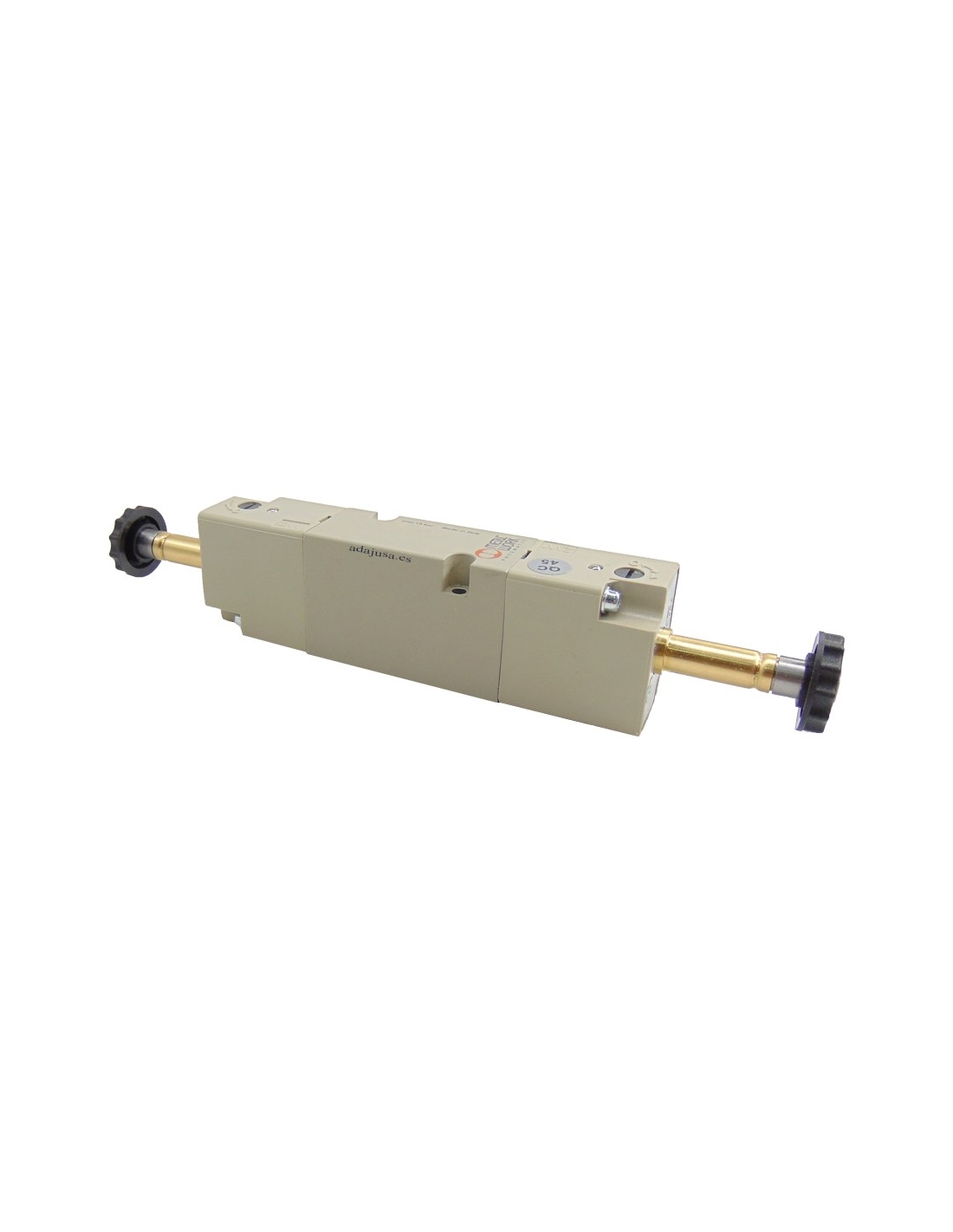

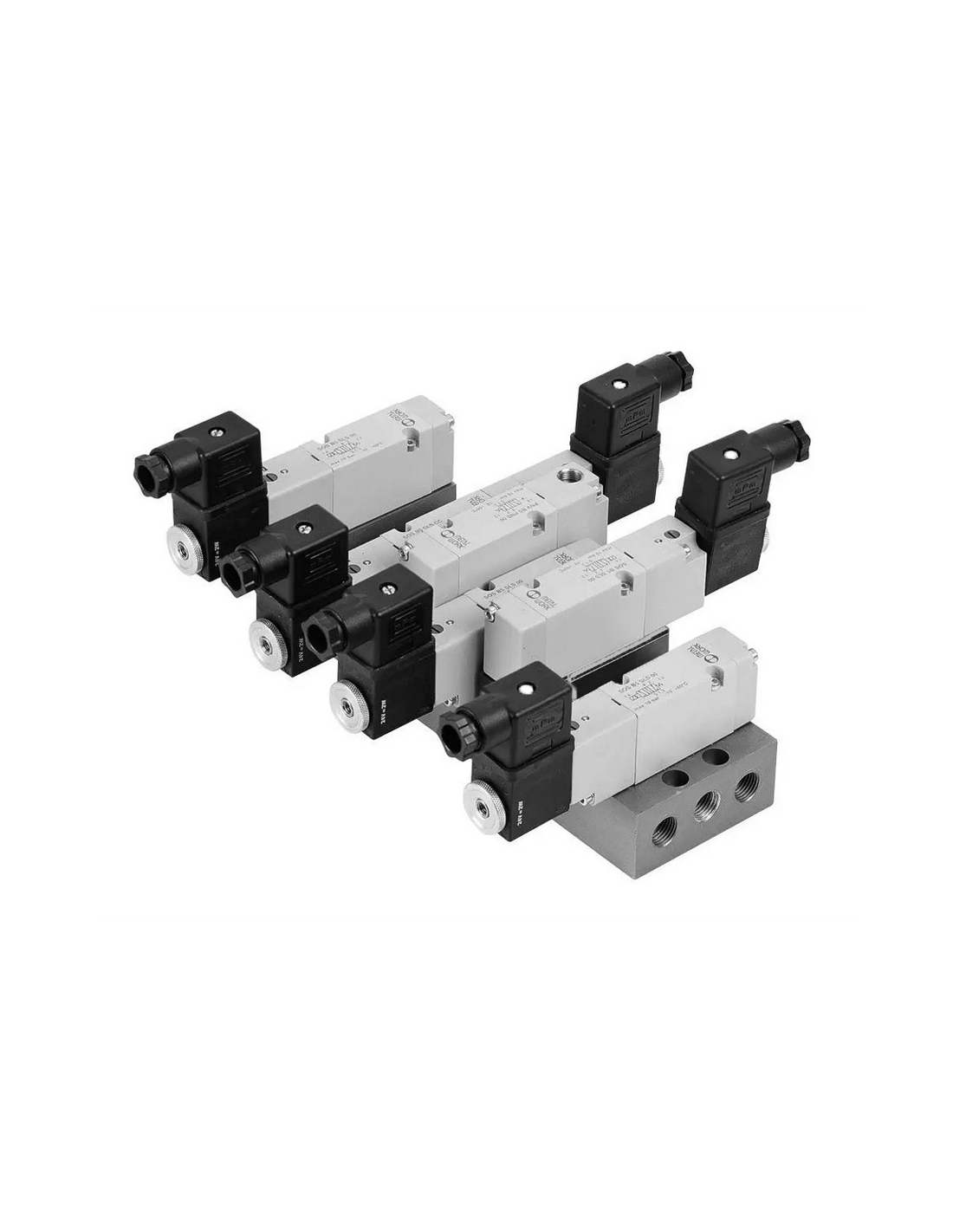

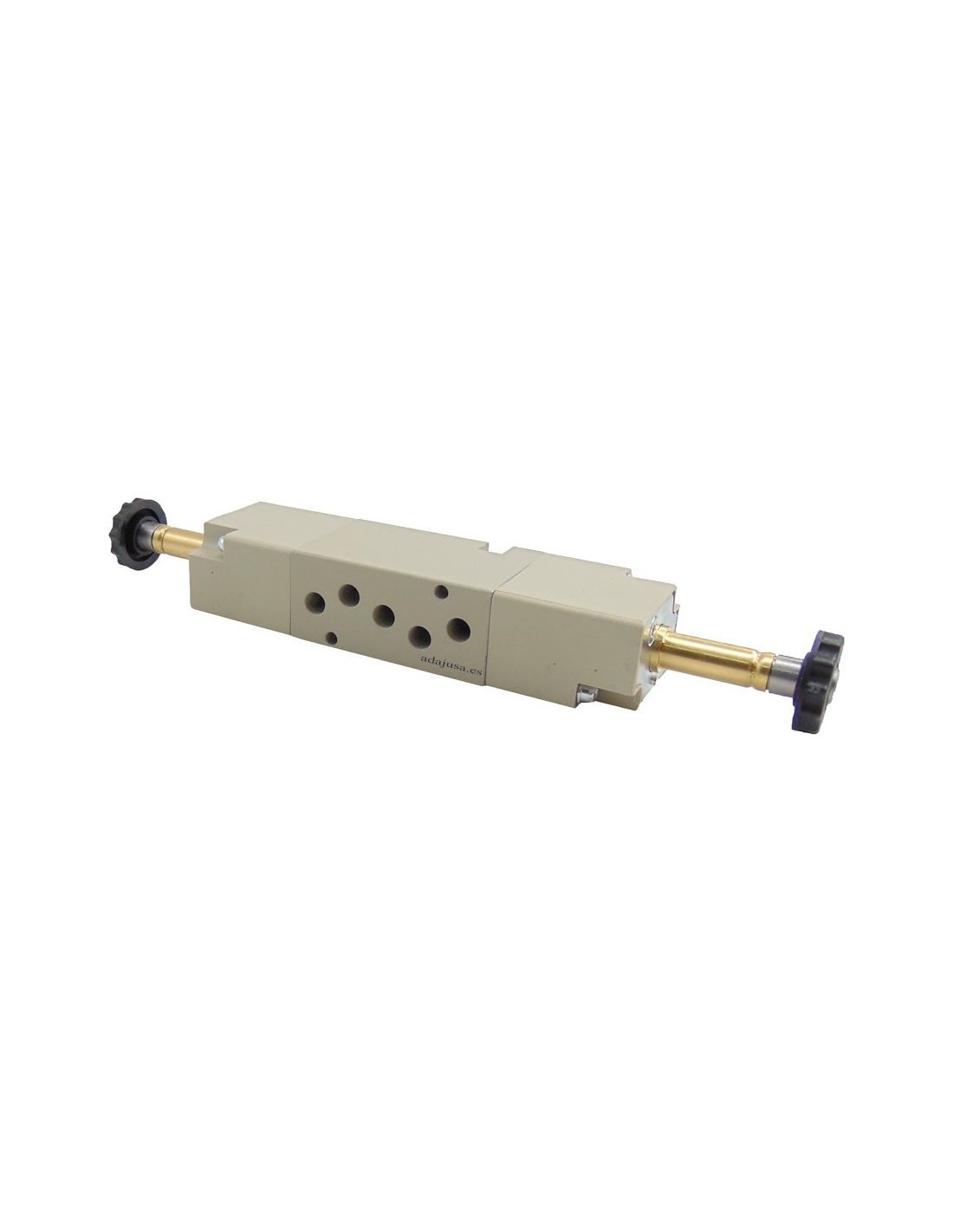

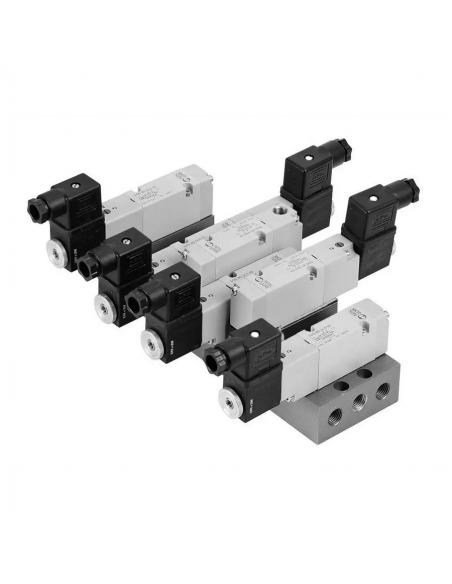

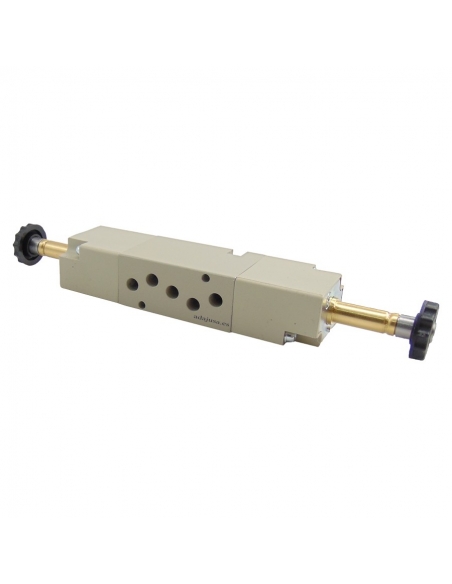

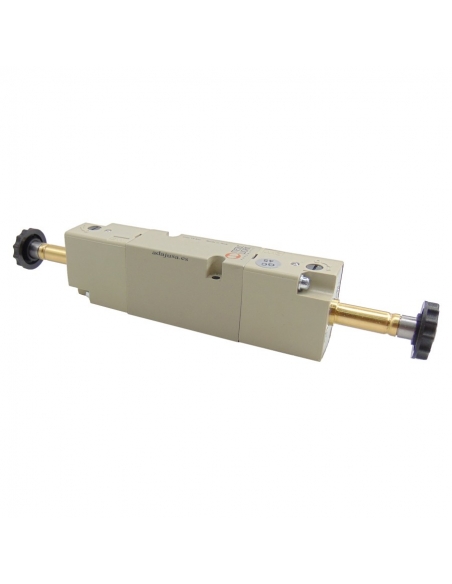

Pneumatic solenoid valve 5/2 assisted bistable series 70 on base - Metal Work

• Manufacturer: Metal Work
• Reference: 7011021600 - SOV B5 SEB OO
• Pressure (bar): Empty +/- 10
• Minimum pressure (bar): 2.5
• Operating temperature (ºC): -10 +/- 60
• Nominal diameter (mm): 5
• Conductance C (N| /min - bar): 107.69
• Critical ratio b (bar): 0.29
• Flow rate at 6 bar ∆P 0.5 bar (N| /min): 320
• Flow at 6 bar ∆P 1 bar (N| /min): 450
• Monostable TRA/TRR at 6 bar (ms): 15 / 35
• Tension tolerate (%): -10 +/- 15
• Insulation class: F 155
• Maximum torque core coil (Nm): 1

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
