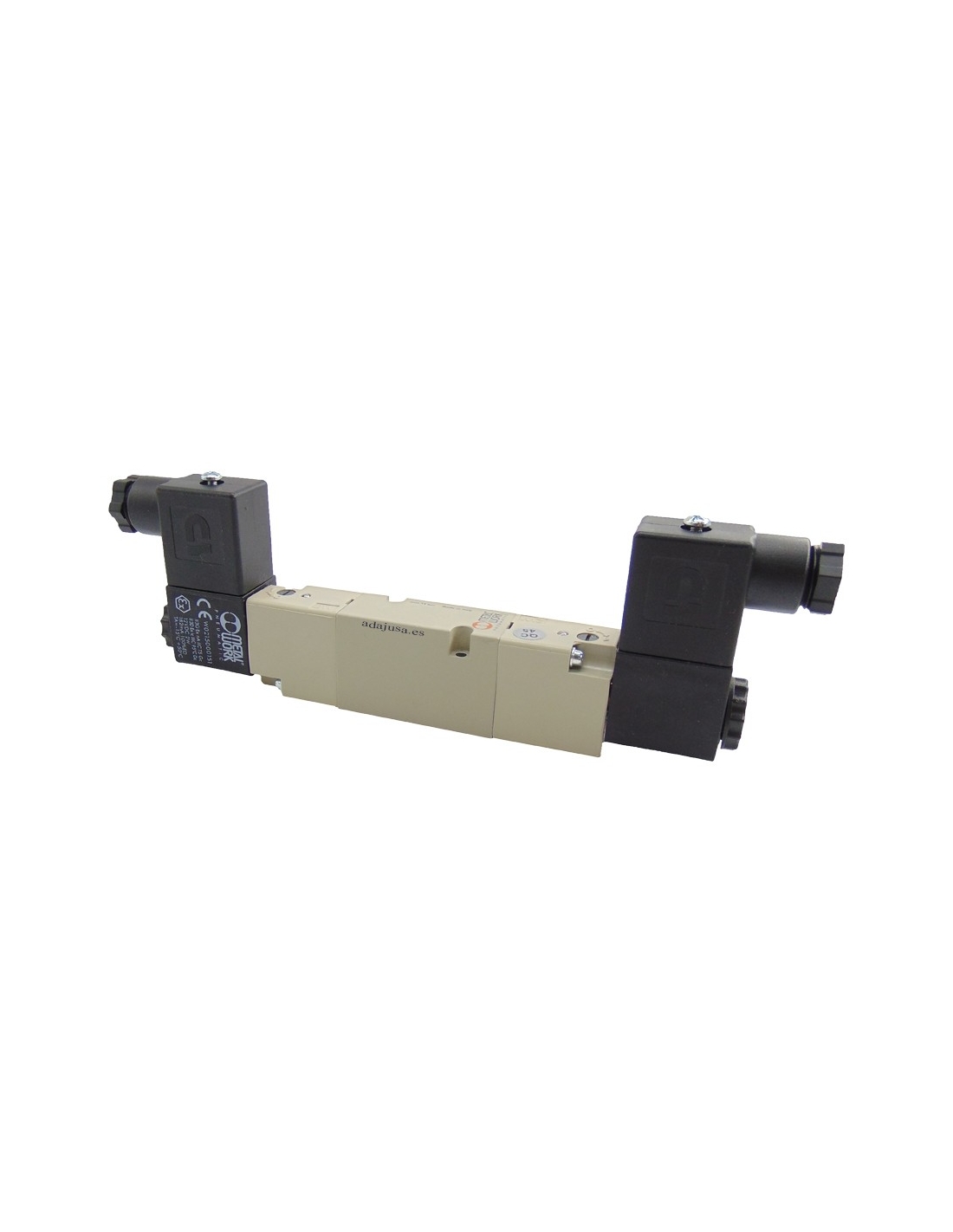

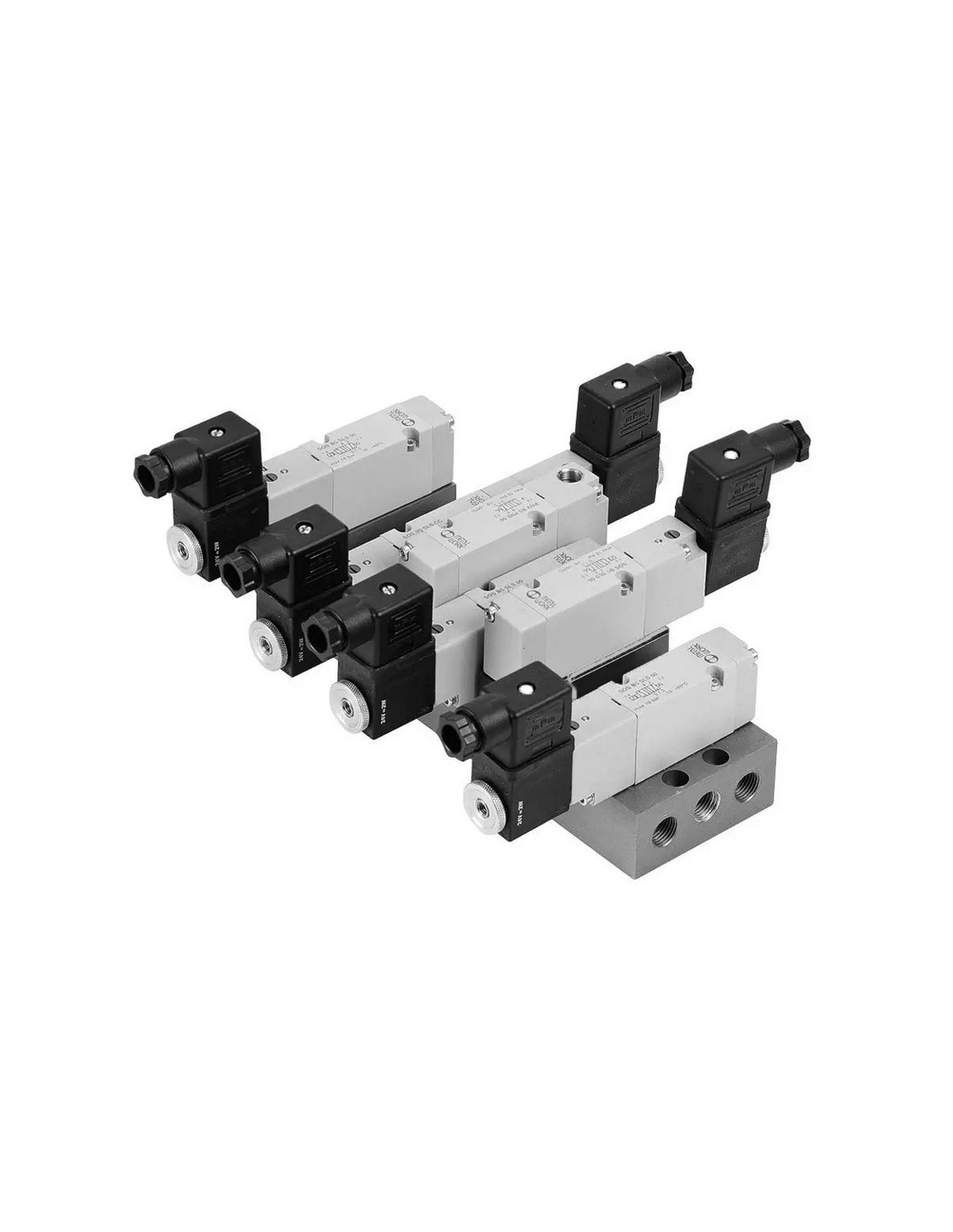

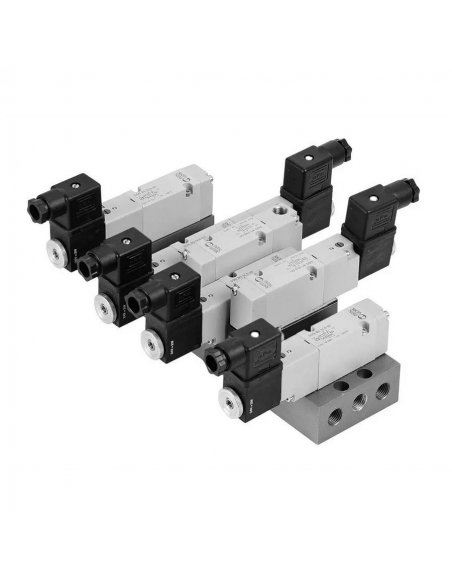

Solenoid valve 5/2 assisted bistable 110 Vac series 70 on base - Metal Work

• Solenoid valve 5/2 assisted bistable
• 2 Coils 110Vac 3.5VA
• 2 Connectors 22 mm

• Manufacturer: Metal Work
• Reference: 7011021600 - SOV B5 SEB OO
• Pressure (bar): Empty +/- 10
• Minimum pressure (bar): 2.5
• Operating temperature (ºC): -10 +/- 60
• Nominal diameter (mm): 5
• Conductance C (N| /min - bar): 107.69
• Critical ratio b (bar): 0.29
• Flow rate at 6 bar ∆P 0.5 bar (N| /min): 320
• Flow at 6 bar ∆P 1 bar (N| /min): 450
• Monostable TRA/TRR at 6 bar (ms): 15 / 35
• Tension tolerate (%): -10 +/- 15
• Insulation class: F 155
• Maximum torque core coil (Nm): 1
• Voltage: 110 Vac
• Power: 3.5 VA

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
