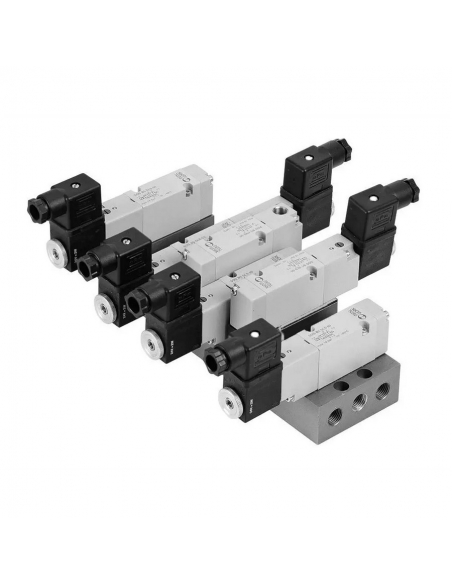

Pneumatic solenoid valve 5/3 moestable closed centers, series 70 on plate. With 230 Vac 3.5VA connectors and coils
The supply includes:
- Solenoid valve 5/3 monostable closed centers
- 2 Coils 230Vac 3.5VA
- 2 Connectors 22 mm
Features:
- Manufacturer: Metal Work
- Reference: 7011022100 - SOV B6 SOS CC
- Pressure (bar): 2.5 +/- 10
- Minimum pressure (bar): 2.5
- Operating temperature (ºC): -10 +/- 60
- Nominal diameter (mm): 5
- Conductance C (N| /min - bar): 107.69
- Critical ratio b (bar): 0.29
- Flow rate at 6 bar ∆P 0.5 bar (N| /min): 320
- Flow at 6 bar ∆P 1 bar (N| /min): 450
- Monostable TRA/TRR at 6 bar (ms): 15 / 35
- Tension tolerate (%): -10 +/- 15
- Insulation class: F 155
- Maximum torque core coil (Nm): 1
- Voltage: 220- 240 Vac
- Power: 3.5 VA
Material for professional use, install in compliance with the regulations in force at the place of installation.
To expand the information you can download the technical sheet by clicking on the "Attachments" tab
