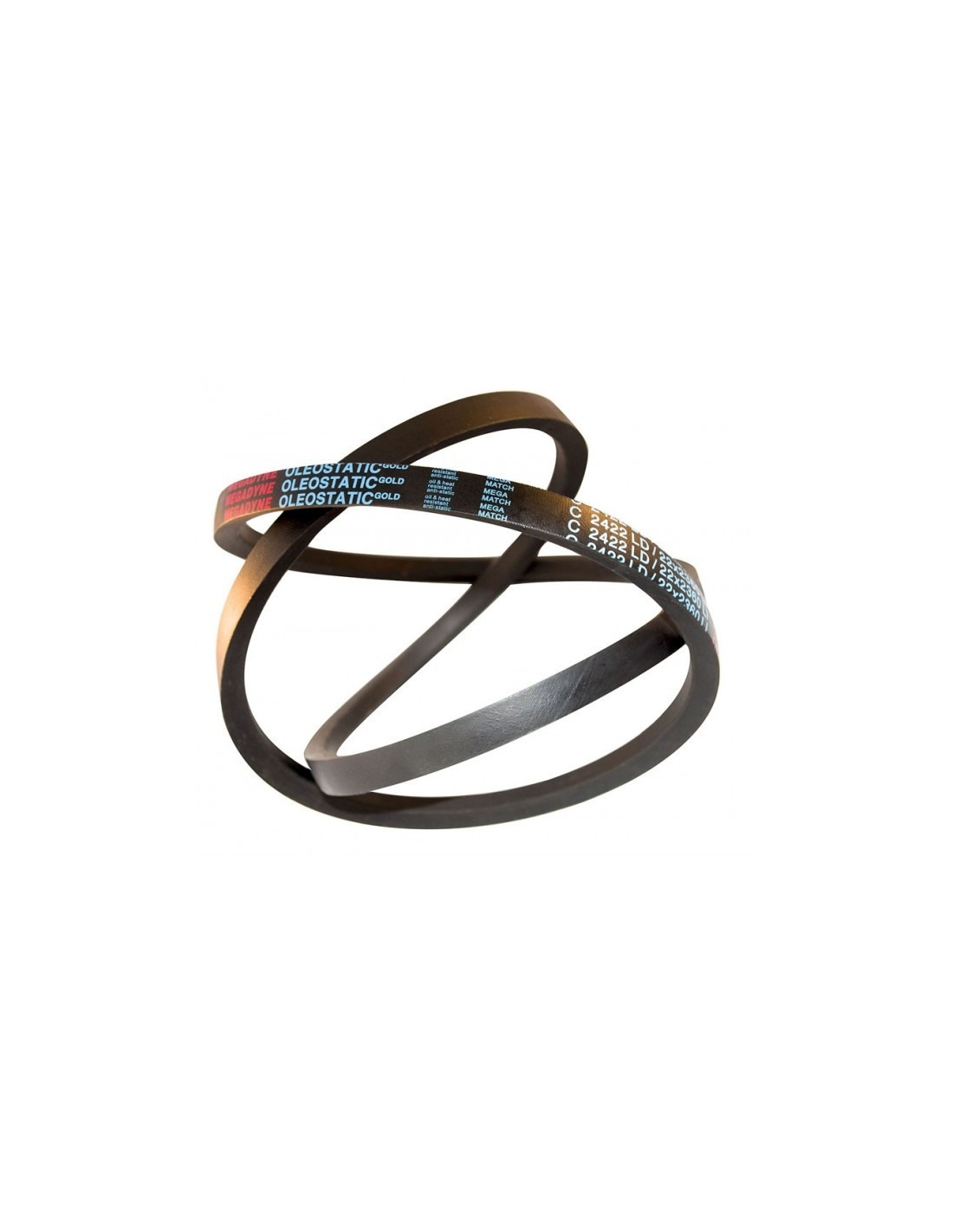

V-belt OLEOSTATIC GOLD SPB 17x1500mm - MEGADYNE
V-belt OLEOSTATIC GOLD SPB 17x1500mm - MEGADYNE

V-belt OLEOSTATIC GOLD SPB 17x1500mm - MEGADYNE

€32.84 Tax included

€27.14 tax excl.

V-belt OLEOSTATIC GOLD profile type "SPB" 17x14mm, with an internal development length of Li=1440mm,for power transmission in industrial machinery, agricultural machinery and gardening applications. Careful design and manufacture, which provides a low stretch, wear and are resistant to lubricant. The seriesOLEOSTATIC GOLD are the maximum exponent of the range of lined trapezoidal straps.

  • Ref: OLEOSTATIC GOLD SPB 1500
  • Megadyne Part number: 390701050001
  • Interior development length (Li): 1440mm
  • Reference development length (Lw - Ld): 1500mm.
  • Exterior length (A - Le) : 1522mm.

Perfil SPB



No queries yet, leave the first!


V-belt oleostatic gold, with profile section type "SPB" of 17x14mm and with an internal development of 1440mm, specially designed for maximum performance in an extensive range of industrial applications, agricultural machinery and gardening.

Made with high quality raw materials to provide straps with high performance, low stretching and very resistant to wear. They are also resistant to lubricant and with a wide temperature range (-30ºC to +80ºC).
OLEOSTATIC GOLD has a transmission capacity of up to 30% more compared to standard OLEOSTATIC straps, so it allows you to have a more compact transmission design. All components are halogen-free in compliance with RoHs regulations.

Manufactured according to REACH regulations and tolerances according to ISO 4184

composicion correas Megadyne

Specifications:

  • Manufacturer: MEGADYNE.
  • Series: oleostatic gold.
  • Reference: SPB1500.
  • Part number: 390701050001
  • Type: Classic section "SPB".
  • Interior development length (Li): 1440mm.
  • Reference development length (Lw - Ld): 1500mm.
  • Exterior length (La -Le): 1522mm.
  • Section dimensions 17x14mm.
  • Resistant to lubrication: SI.
  • Temperature range: -30ºC to +80ºC.
  • Static conductivity: according to ISO 1813.
  • Tolerance: according to ISO 4184
  • Weight: 0,34 Kg.

Serie SPB

Material de uso profesional, instalar respetando las normativas vigentes en el lugar de la instalación.
