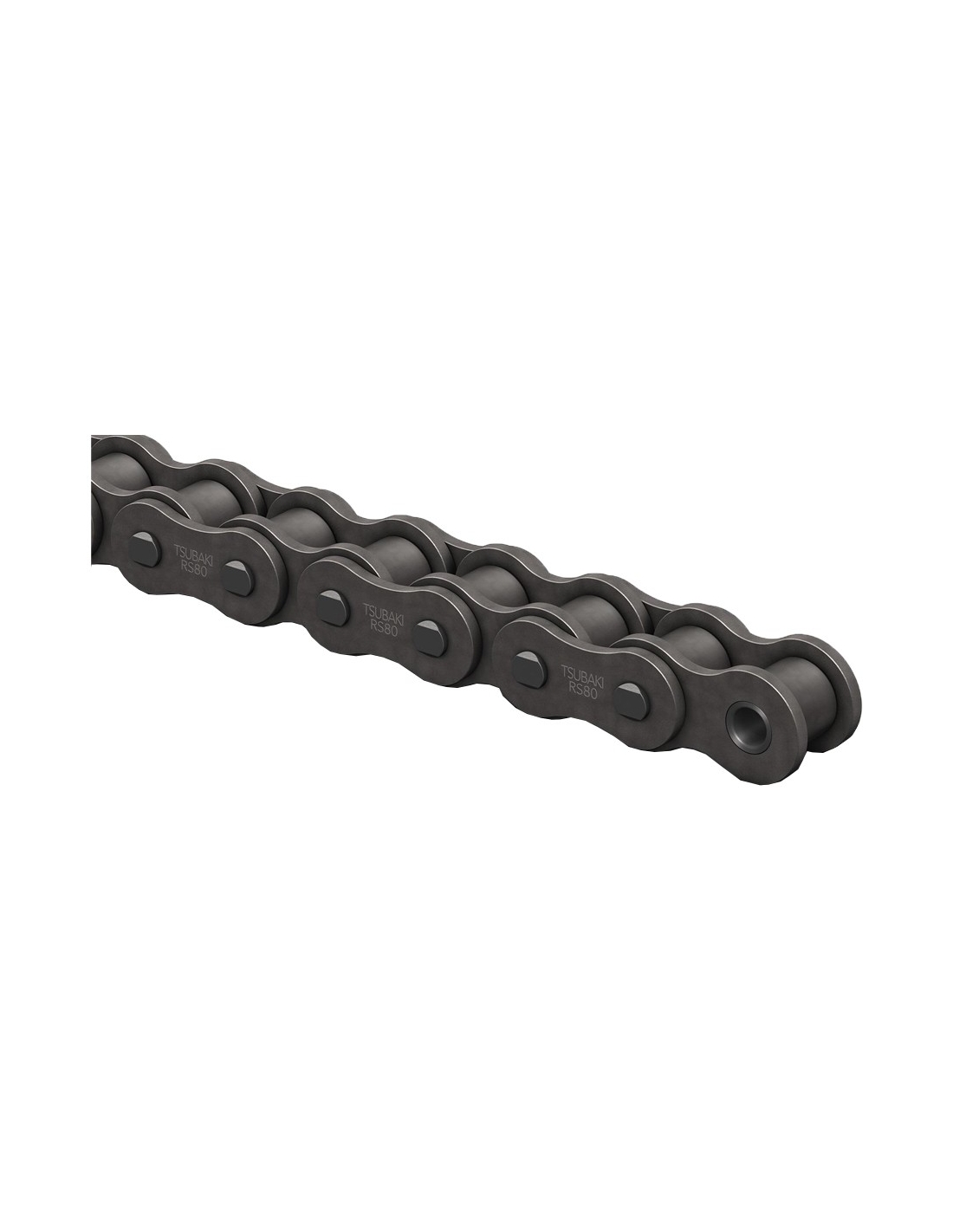

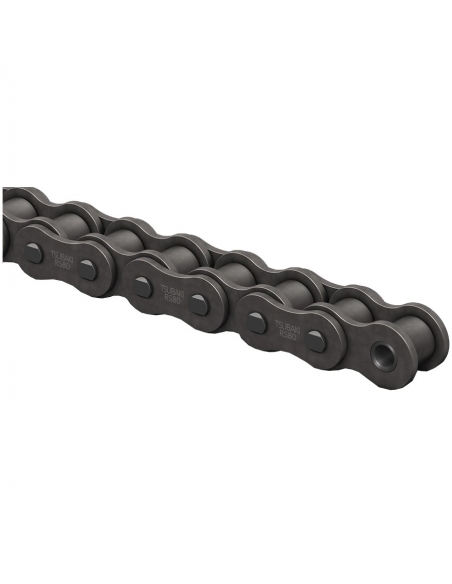

Roller Chain without lubrication, in accordance with the requirements of the ASA DIN 8188 standard. Made in Japan.
A roller chain is a series of bearings connected by meshes (plates), great versatility and durability in environments with a lot of dust, oil, water, grease, etc... Roller chains develop synchronous power transmission, without slipping, and the effectiveness of the transmission does not depend on the mechanical stress transmitted.
Tsubaki Lambda lube-free Chain is supplied as standard with the NSF-H1 bushing impregnated with food grade lubricant. This makes it perfectly suitable for applications in the food industry.
Tsubaki Lambda has exceptional performance in temperatures up to +150°C.
Characteristics:
- Manufacturer: Tsubaki
- Reference: CADE-RS ASA-50-1-LAMBDA:TSU
- Sale per packaging of 1 meter of chain
- Pitch (P): 15.875mm
- Roller diameter (d 1 ): 10.16 mm (max)
- Internal width (b 1 ): 9.65 mm (min)
- Shaft diameter ( d2 ): 5.08 mm (max)
- union length
- (L): 19.50mm (max)
- (Lc): 22.00mm (max)
- Mesh height (h 2 ): 14.73 mm
- Mesh thickness: (t/T): 1.70 mm
- Minimum breaking load (Q ISO/DIN) 22.20/22.40 kN
- Average breaking load (Q 0 ): 27.5 kN
- Approximate weight: 0.93 kg/m
(*) In correct lubrication conditions.
Material for professional use, install in compliance with the regulations in force at the installation site.
For more information you can download the technical sheet by clicking on the "Attachments" tab
