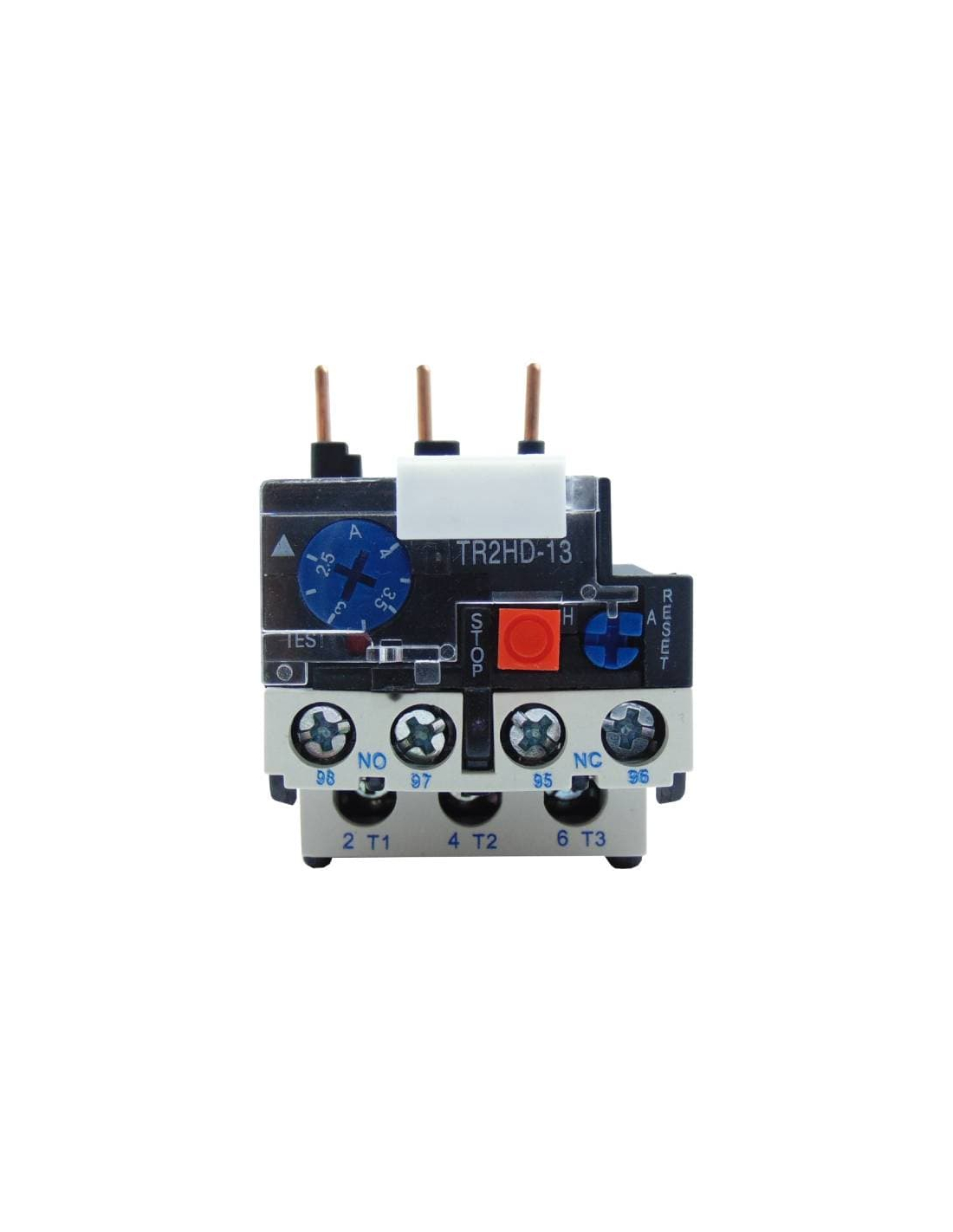

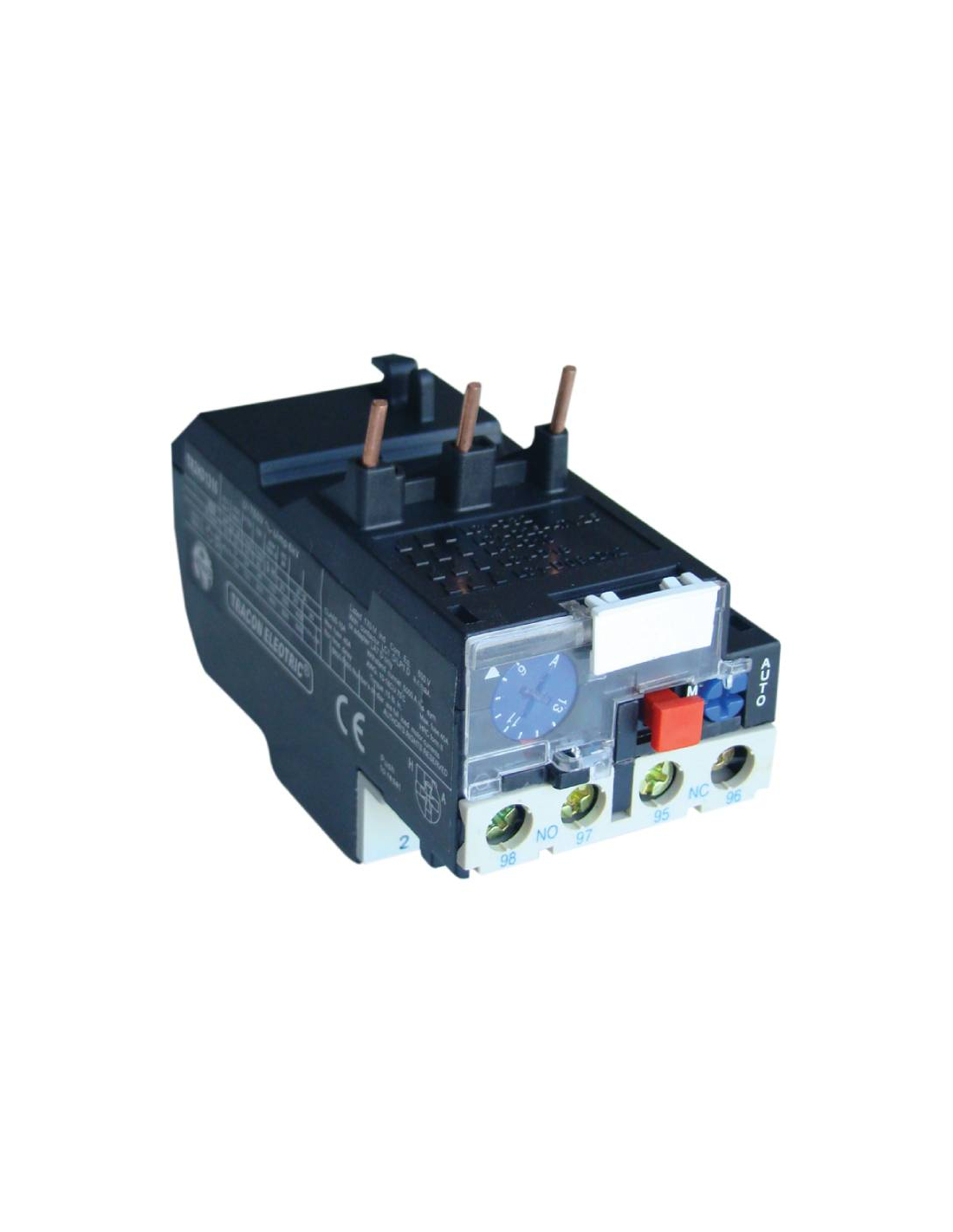

Thermal regulation relay 0.63 to 1A TR2HD Series

€9.17 Tax included

€7.58 tax excl.

Three-phase thermal relay for protection of three-phase and single-phase electric motors against overloads or absence of phase. The regulation of the thermal relay is between 0.63 to 1A.


Reference: TR2HD1305

ELECTRICAL SCHEME

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!


Three-phase thermal relay for protection of electric motors against overloads and absence of phase. The thermal relay has 2 independent auxiliary contacts (one open and one closed). Resetting can be selected to occur automatically or manually using a button located on the body of the thermal relay.

The thermal relay is designed to be coupled directly to the output of a contactor, it can also be fixed to a DIN rail using the available adapter. Compatible with TR1D series contactors.



Characteristics:

  • Manufacturer/Supplier: Tracon
  • Supplier reference: TR2HD1305
  • Thermal regulation range: 0.63 to 1A
  • Insulation voltage (Ui): 690V
  • Rated impulse voltage: 6kV
  • Conductor section: 2.5 - 10mm 2
  • Operating temperature: -30ºC to +55ºC
  • Protection grade: IP20
  • Mounting conditions: The maximum inclination must not exceed ±5%
  • Regulations: EN60947-4-1; EN60947-1



Dimensions:







Material for professional use, install in compliance with the regulations in force at the installation site.
