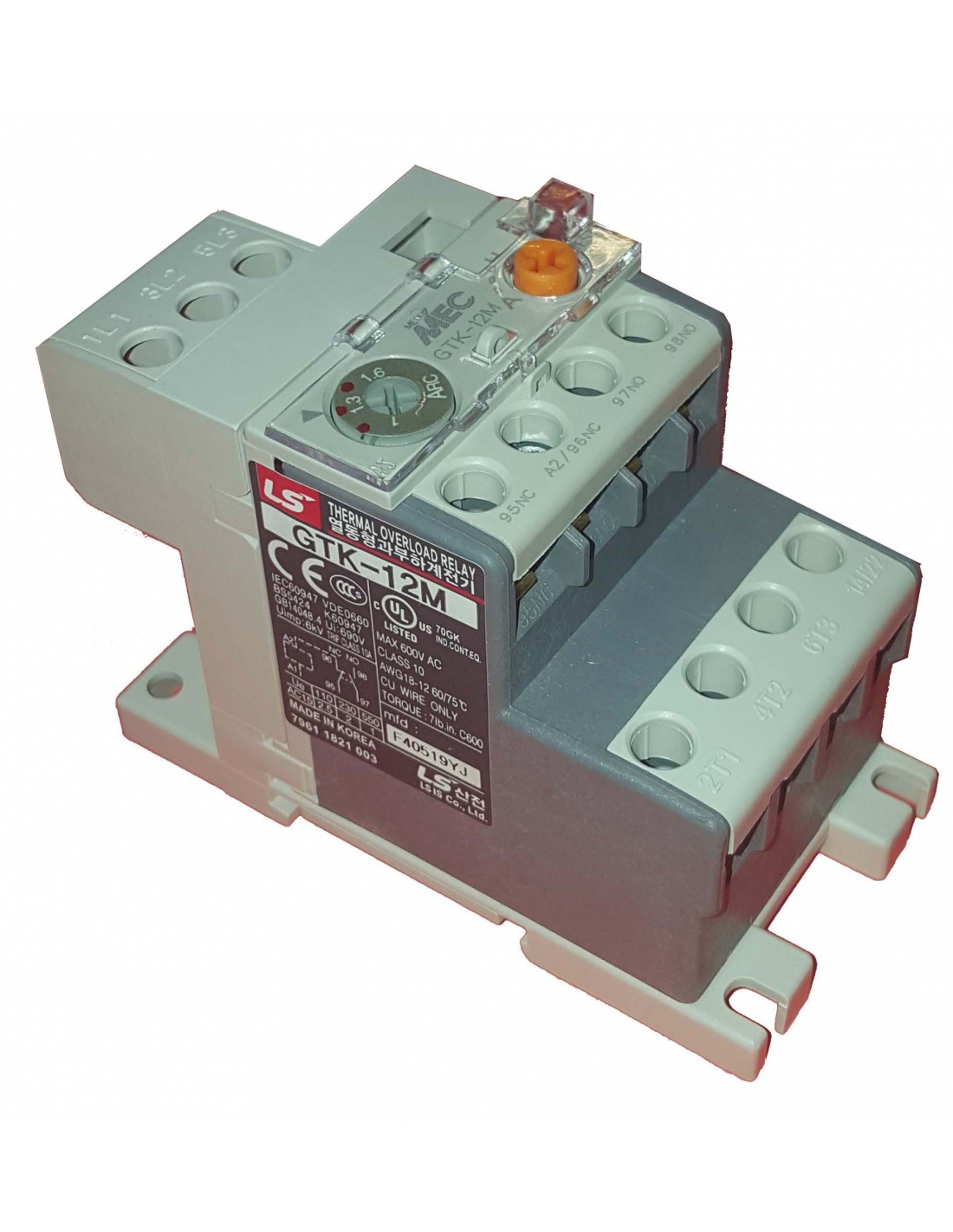

Mini thermal relay regulation 0.63A to 1A - LS

€22.20 Tax included

€18.35 tax excl.

Three-phase thermal relay for mini-contactors, offering overload protection for electric motors. The regulation of the thermal relay is between 0.63 and 1 A.

Reference: GTK-12M 0.82A 3H.




LS logo LG industrial Systems

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Three-phase mini thermal relay for protection of electric motors against overloads. The thermal relay has 2 independent auxiliary contacts (1 open and one closed). Reset can be selected to occur automatically or manually by means of a push button located on the body of the thermal relay. It has ambient temperature compensation.

The thermal relay is designed to be coupled directly to the output of a contactor, or mounted on the terminal block with DIN rail coupling (included in the supply).

Thermal relay features:

  • Manufacturer: LG - LS.
  • Reference: GTK-12M 0.82A 3H
  • Regulation range: 0.63A to 1A.
  • Nominal voltage Ue: 690V.
  • Insulation voltage: 690V.
  • Maximum peak voltage Uimp: 6kV.
  • Shooting class: 10.
  • Compatible with GMC and GMD mini contactors from 6 to 16A.
  • Mounting: integrated on the contactor, or on DIN rail using the base supplied.
  • Ambient temperature compensation between -5 and 40ºC.
  • Weight: 0.1 Kg.

Attention: To mount on the contactor, the mounting base must be removed.


For further information you can download the technical sheet by clicking on the "Attached Files" tab.

Professional use material, install in compliance with the regulations in force at the place of installation.
