Three-phase motor 7.5Kw/10CV 1500 rpm Flange B5 - IE2 - IE3 - Siemens
Three-phase motor 7.5Kw/10CV 1500 rpm Flange B5 - IE2 - IE3 - Siemens

Three-phase motor 7.5Kw-10HP 1500 rpm Flange B5 IE3 - INNOMOTICS

Shipping time: 2-3 days
€1,589.03 Tax included

1324.19 tax excl.

E10031CB24FA4

Three-phase electric motor 7,5kW (10CV) asynchronous 400/690Vac. 4 Poles 1500 rpm B5 flange. Energy rating IE3.

Manufactured by INNOMOTICS, SIMOTICS GP series in aluminum.

Ref: 1LE1003-1CB2-4FA4 .

INNOMOTICS

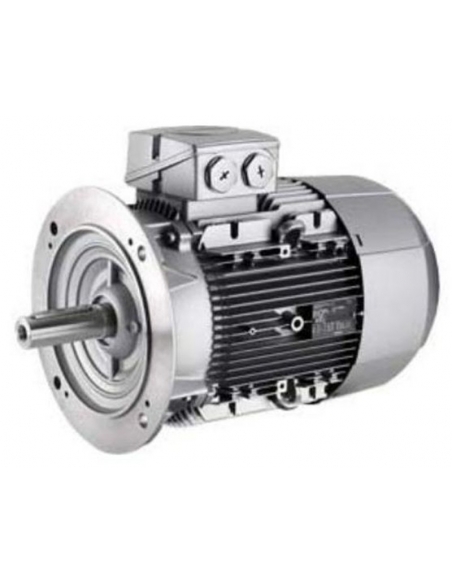

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Three-phase electric motor 7.5kW (10CV) asynchronous 400/690V 1500 rpm B5 flange, aluminum housing.

Manufactured by INNOMOTICS, SIMOTICS GP aluminum series.

fEATURES:

  • Manufacturer: INNOMOTICS.
  • Series: SIMOTICS GP.
  • Part number: 1LE1003-1CB2-4FA4.
  • Motor type: squirrel cage asynchronous.
  • Voltage: 400/690Vac V.III 50/60Hz.
  • Power: 7.5 Kw (10 HP).
  • Current: 14,7/25,46A.
  • number of poles: 4.
  • Rpm: 1500(1400).
  • Energy rating: IE3.
  • Degree of protection: IP55.
  • Type of fastening: B5 flange.
  • shaft diameter: Ø38mm
  • diameter of flange: Ø300mm
  • Case size: 132.
  • Color: Grey.
  • Housing materialweight: : Aluminum.
  • Weight: 49 Kg.
  • CE Marked.

Material for professional use, install in compliance with current regulations at the place of installation.
